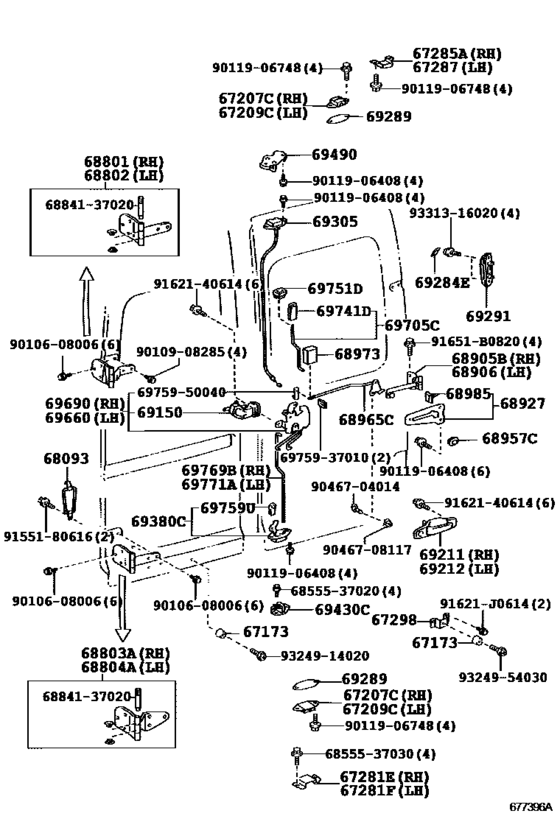

Back Door Lock & Hinge ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67173
|
67173
90540-04004 Cushion(For Back Door Panel)[03.2012 -] XZU282 右側 |
90540-04004 |
US $6.41 |
||
|
67173
|
67173
90541-03010 Cushion(For Back Door Panel)[03.2012 -] XZU282 左側 |
90541-03010 |
US $6.29 |
||
|
67207C
|
67207C
67207-37010 Stopper Sub-Assy, Back Door[03.2012 -] XZU282 |
67207-37010 |
US $27.96 |
||
|
67209C
|
67209C
67209-37010 Stopper Sub-Assy, Back Door, No.3[03.2012 -] XZU282 |
67209-37010 |
US $27.96 |
||
|
67281E
|
67281E
67281-37012 Stopper, Back Door Down Male[03.2012 -] XZU282 |
67281-37012 |
US $5.24 |
||
|
67281F
|
67281F
67281-37022 Stopper, Back Door, Lower[03.2012 -] XZU282 |
67281-37022 |
US $6.70 |
||
|
67285A
|
67285A
67285-37011 Anti-Rattle, Back Door, Rh[03.2012 -] XZU282 |
67285-37011 |
US $6.12 |
||
|
67287
|
67287
67285-37011 Anti-Rattle, Back Door, Rh[03.2012 -] XZU282 |
67285-37011 |
US $6.12 |
||
|
67298
|
67298
67298-37010-A0 Bracket, Back Door Stopper, No.1[03.2012 - 12.2012] XZU282 WHITE,058 |
67298-37010-A0 |
US $16.16 |
||
|
67298
|
67298
67298-37010-A1 Bracket, Back Door Stopper, No.1[03.2012 - 12.2012] XZU282 YAMATOUNYU COBALT GR,9A7 |
67298-37010-A1 |
US $16.16 |
||
|
68093
|
68093
68093-37010 Stay Sub-Assy, Back Door, No.2[03.2012 -] XZU282 右側 |
68093-37010 |
US $17.76 |
||
|
68093
|
68093
68094-37020 Stay Sub-Assy, Back Door, No.2[03.2012 -] XZU282 左側 |
68094-37020 |
US $17.76 |
||
|
68801
|
68801
68801-37011 Hinge Sub-Assy, Back Door, Upper Rh[03.2012 -] XZU282 |
68801-37011 |
US $62.32 |
||
|
68802
|
68802
68802-37011 Hinge Sub-Assy, Back Door, Upper Lh[03.2012 -] XZU282 |
68802-37011 |
US $62.32 |
||
|
68803A
|
68803A
68803-37012 Hinge Sub-Assy, Back Door, Lower Rh[03.2012 -] XZU282 |
68803-37012 |
US $90.27 |
||
|
68804A
|
68804A
68804-37022 Hinge Sub-Assy, Back Door, Lower Lh[03.2012 -] XZU282 |
68804-37022 |
US $90.27 |
||
|
68905B
|
68905B
68905-37011 Stay Sub-Assy, Back Door, Rh[03.2012 -] XZU282 |
68905-37011 |
US $93.18 |
||
|
68906
|
68906
68906-37011 Stay Sub-Assy, Back Door, Lh[03.2012 -] XZU282 |
68906-37011 |
US $101.64 |
||
|
68927
|
68927
68091-37010 Base, Back Door Stay[03.2012 -] XZU282 右側 |
68091-37010 |
US $107.74 |
||
|
68927
|
68927
68092-37010 Base, Back Door Stay[03.2012 -] XZU282 左側 |
68092-37010 |
US $107.74 |
||
|
68957C
|
68957C
68957-37010 Holder, Back Door Stay[03.2012 - 12.2012] XZU282 |
68957-37010 |
US $6.12 |
||
|
68965C
|
68965C
68907-37010 Shaft, Back Door Stay[03.2012 -] XZU282 右側 |
68907-37010 |
US $10.32 |
||
|
68965C
|
68965C
68908-37010 Shaft, Back Door Stay[03.2012 -] XZU282 左側 |
68908-37010 |
US $10.32 |
||
|
68973
|
68973
68973-37010 Cushion, Back Door Stay[03.2012 -] XZU282 |
68973-37010 |
US $3.49 |
||
|
68985
|
68985
68984-37010 Stopper, Back Door Upper Stay[03.2012 -] XZU282 |
68984-37010 |
US $3.20 |
||
|
69150
|
69150
85470-37021 Actuator Assy, Back Door Lock[03.2012 -] XZU282 |
85470-37021 |
US $139.78 |
||
|
69211
|
69211
69090-37010 Handle, Back Door Outside, Rh[03.2012 -] XZU282 |
69090-37010 |
US $72.60 |
||
|
69212
|
69212
69190-37010 Handle, Back Door Outside, Lh[03.2012 -] XZU282 |
69190-37010 |
US $72.60 |
||
|
69284E
|
69284E
69284-95J00-C0 Plug, Slide Door Inside Handle[03.2012 - 12.2012] XZU282 BLACK,TRIM1# |
69284-95J00-C0 |
US $2.91 |
||
|
69289
|
69289
69289-90A00 Shim, Back Door Stopper[03.2012 -] XZU282 |
69289-90A00 |
US $7.43 |
||
|
69291
|
69291
69205-37030-C0 Handle Assy, Back Door Inside[03.2012 - 12.2012] XZU282 BLACK,TRIM1#,右側 |
69205-37030-C0 |
US $81.54 |
||
|
69291
|
69291
69206-37030-C0 Handle Assy, Back Door Inside[03.2012 - 12.2012] XZU282 BLACK,TRIM1#,左側 |
69206-37030-C0 |
US $81.54 |
||
|
69305
|
69305
69350-37010 Lock Sub-Assy, Back Door, Upper[03.2012 -] XZU282 |
69350-37010 |
US $83.33 |
||
|
69380C
|
69380C
69380-37010 Lock Assy, Back Door, Lower[03.2012 -] XZU282 |
69380-37010 |
US $83.33 |
||
|
69430C
|
69430C
69450-37011 Striker Assy, Back Door Lock[03.2012 -] XZU282 |
69450-37011 |
US $19.80 |
||
|
69490
|
69490
69470-37010 Striker Assy, Back Door Lock[03.2012 -] XZU282 |
69470-37010 |
US $15.72 |
||
|
69660
|
69660
69670-37021 Control Assy, Back Door Lock Remote, Lh[03.2012 -] XZU282 |
69670-37021 |
US $173.26 |
||
|
69690
|
69690
69690-37021 Control Assy, Back Door Remote[03.2012 -] XZU282 |
69690-37021 |
US $173.26 |
||
|
69705C
|
69705C
69705-37010-C0 Link Sub-Assy, Back Door Lock Control[03.2012 - 12.2012] XZU282 BLACK,TRIM1# |
69705-37010-C0 |
US $7.57 |
||
|
69741D
|
69741D
69741-90K00-C0 Knob, Front Door Lock Control[03.2012 - 12.2012] XZU282 BLACK,TRIM1# |
69741-90K00-C0 |
from US $3.94 |
||
|
69751D
|
69751D
69751-12020-C0 Holder, Door Locking(For Front Door)[03.2012 - 12.2012] XZU282 BLACK,TRIM1# |
69751-12020-C0 |
from US $1.94 |
||
|
69759U
|
69759U
69759-24010 Snap(For Rear Door Inside Handle)[03.2012 -] XZU282 |
69759-24010 |
from US $2.05 |
||
|
69769B
|
69769B
69769-37010 Rod, Back Door Lower Lock Control[03.2012 -] XZU282 |
69769-37010 |
US $12.08 |
||
|
69771A
|
69771A
69771-37010 Rod, Back Door Lower Lock Control, No.1[03.2012 -] XZU282 |
69771-37010 |
US $12.08 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
6855537020
|
6855537020
68555-37020 Bolt, Door Stay |
68555-37020 |
US $1.31 |
||
|
6855537030
|
6855537030
68555-37030 Bolt, Door Stay |
68555-37030 |
US $1.31 |
||
|
6884137020
|
6884137020
68841-37020 Cover, Torsion Bar, Rh |
68841-37020 |
US $6.12 |
||
|
6975937010
|
6975937010
69759-37010 Snap, Door Lock Control Link, No.1 |
69759-37010 |
US $3.20 |
||
|
6975950040
|
6975950040
69759-50040 Snap, Front Door Lock Control Rod |
69759-50040 |
US $3.72 |
||
|
9010608006
|
9010608006
90106-08006 New Genuine Part |
90106-08006 |
US $1.65 |
||
|
9010908285
|
9010908285
90109-08285 New Genuine Part |
90109-08285 |
US $1.46 |
||
|
9011906408
|
9011906408
90119-06408 New Genuine Part |
90119-06408 |
US $2.15 |
||
|
9011906748
|
9011906748
90119-06748 BOLT WWASHER |
90119-06748 |
US $1.97 |
||
|
9046704014
|
9046704014
90467-04014 Clamp, Rear Door Lock Link |
90467-04014 |
US $1.93 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.61 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.82 |
||
|
9324914020
|
9324914020
93249-14020 New Genuine Part |
93249-14020 |
US $0.87 |
||
|
9324954030
|
9324954030
93249-54030 New Genuine Part |
93249-54030 |
US $1.16 |
||
|
9331316020
|
9331316020
93313-16020 SCREW WWASHER |
93313-16020 |
US $1.97 |
||
