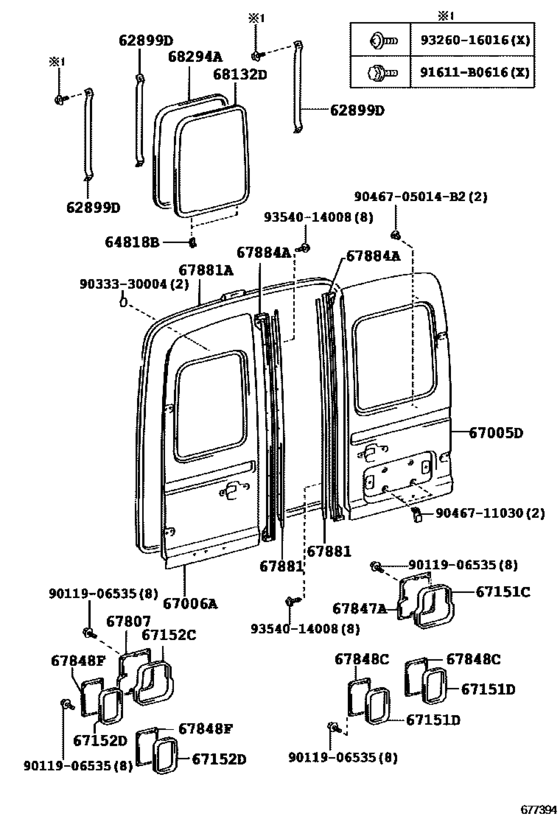

Back Door Panel & Glass ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62899D
|
62899D
62899-37010 Bar, Back Door Window Guard[03.2012 -] XZU282 |
62899-37010 |
US $48.92 |
||
|
64818B
|
64818B
64818-13020 Spacer, Back Door Glass, No.1[03.2012 -] XZU282 |
64818-13020 |
US $0.69 |
||
|
67005D
|
67005D
67005-37073 Panel Sub-Assy, Back Door, Rh[03.2012 -] XZU282 |
67005-37073 |
US $1,732.64 |
||
|
67006A
|
67006A
67006-37033 Panel Sub-Assy, Back Door, Lh[03.2012 -] XZU282 |
67006-37033 |
US $1,428.34 |
||
|
67151C
|
67151C
69838-37011 Packing, Front Step Service Hole[03.2012 -] XZU282 |
69838-37011 |
US $5.53 |
||
|
67151D
|
67151D
69838-37011 Packing, Front Step Service Hole[03.2012 -] XZU282 |
69838-37011 |
US $5.53 |
||
|
67152C
|
67152C
69838-37011 Packing, Front Step Service Hole[03.2012 -] XZU282 |
69838-37011 |
US $5.53 |
||
|
67152D
|
67152D
69838-37011 Packing, Front Step Service Hole[03.2012 -] XZU282 |
69838-37011 |
US $5.53 |
||
|
67807
|
67807
67847-37010 Cover Sub-Assy, Back Door Service Hole[03.2012 -] XZU282 |
67847-37010 |
US $47.90 |
||
|
67847A
|
67847A
67847-37010 Cover Sub-Assy, Back Door Service Hole[03.2012 -] XZU282 |
67847-37010 |
US $47.90 |
||
|
67848C
|
67848C
67848-37010 Cover, Back Door Service Hole, No.2[03.2012 -] XZU282 |
67848-37010 |
US $33.63 |
||
|
67848F
|
67848F
67848-37010 Cover, Back Door Service Hole, No.2[03.2012 -] XZU282 |
67848-37010 |
US $33.63 |
||
|
67881
|
67881
67889-37010 Plate, Back Door Weatherstrip Set[03.2012 -] XZU282 右側 |
67889-37010 |
US $24.02 |
||
|
67881
|
67881
67889-37020 Plate, Back Door Weatherstrip Set[03.2012 -] XZU282 左側 |
67889-37020 |
US $24.02 |
||
|
67881A
|
67881A
67881-37011 Weatherstrip, Back Door[03.2012 -] XZU282 |
67881-37011 |
US $204 |
||
|
67884A
|
67884A
67884-37011 Weatherstrip, Back Door, Center[03.2012 -] XZU282 |
67884-37011 |
US $53.42 |
||
|
68132D
|
68132D
68132-37041
Glass, Back Door, Lh
[03.2012 -] XZU282 ＊ＵＶＣＴ，厚さ＝３．５，グリーン |
68132-37041 |
— | ||
|
68294A
|
68294A
68294-13040
Dam Kit, Back Window Glass Adhesive
[03.2012 - 06.2012] XZU282 |
68294-13040 |
— | ||
|
91611B0616
|
91611B0616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.84 |
||
|
9011906535
|
9011906535
90119-06535 New Genuine Part |
90119-06535 |
US $1.60 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
from US $0.91 |
||
|
9046705014B2
|
9046705014B2
90467-05014-B2 Clip, Rear Door Service Hole |
90467-05014-B2 |
US $1.61 |
||
|
9046711030
|
9046711030
90467-11030 Clamp |
90467-11030 |
from US $4.12 |
||
|
9326016016
|
9326016016
93260-16016 New Genuine Part |
93260-16016 |
US $1.46 |
||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.61 |
