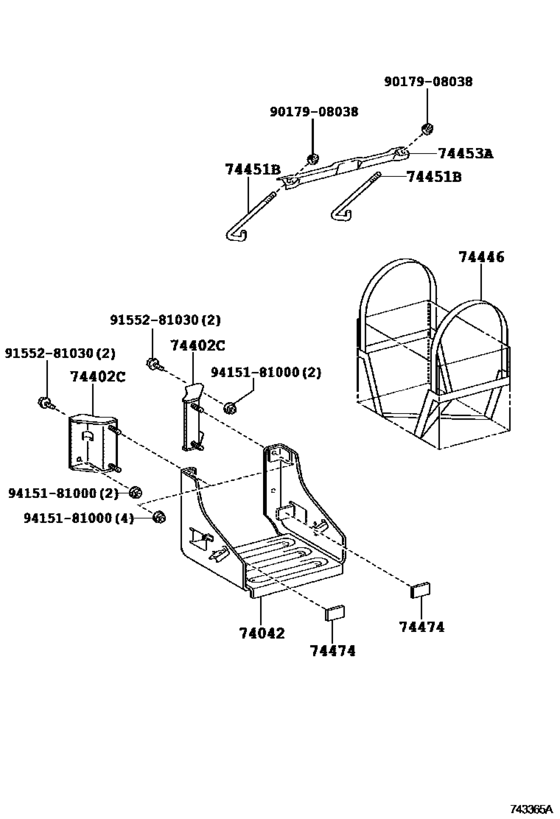

Battery Carrier ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74042
|
74042
74042-37300 Bracket Sub-Assy, Battery[03.2012 -] XZU282 |
74042-37300 |
US $225.68 |
||
|
74402C
|
74402C
74402-37081 Bracket Sub-Assy, Battery Carrier, Rear[03.2012 -] XZU282 |
74402-37081 |
US $70.18 |
||
|
74446
|
74446
74446-26010 Band, Battery[03.2012 -] XZU282 |
74446-26010 |
US $7.35 |
||
|
74451B
|
74451B
74451-37011 Bolt, Battery Clamp[03.2012 -] XZU282 |
74451-37011 |
US $5.64 |
||
|
74453A
|
74453A
74453-36070 Bar, Battery Set Plate[03.2012 -] XZU282 |
74453-36070 |
US $23.72 |
||
|
74474
|
74474
74475-36040 Pad, Battery[03.2012 -] XZU282 |
74475-36040 |
US $6.99 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9155281030
|
9155281030
91552-81030 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91552-81030 |
US $1.79 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
