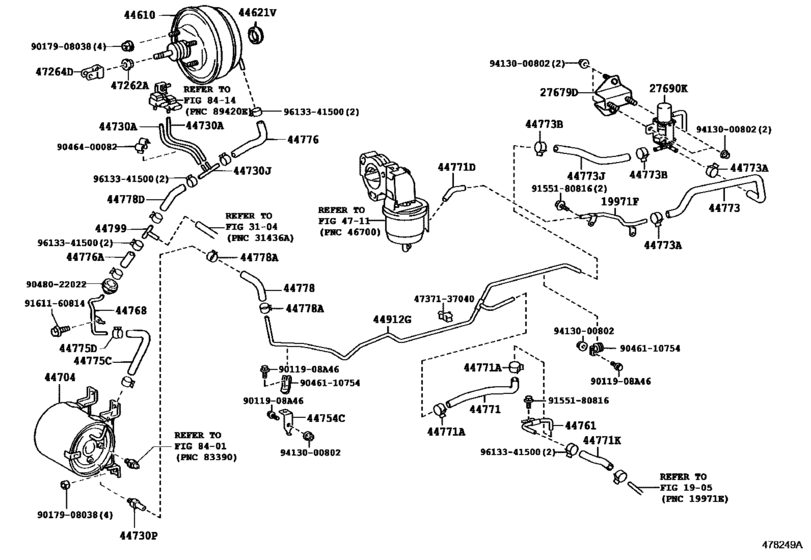

Brake Booster & Vacuum Tube ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19971F
|
19971F
19971-78280 Pipe, Vacuum[03.2012 -] N04C..XZU282 |
19971-78280 |
US $42.22 |
||
| replacement | |||||
|
19971F
|
19971F
19971-78281 Pipe, Vacuum[03.2012 -] N04C..XZU282 |
19971-78281 |
US $42.22 |
||
|
27679D
|
27679D
27679-78210 Bracket, Exhaust Brake Solenoid[03.2012 -] N04C..XZU282 |
27679-78210 |
US $17.33 |
||
|
27690K
|
27690K
27690-78032 Solenoid Assy, Power Take-Off[03.2012 - 12.2012] N04C..XZU282 |
27690-78032 |
US $154.16 |
||
|
44610
|
44610
44610-37210 Booster Assy, Brake[03.2012 -] XZU282 |
44610-37210 |
US $930.18 |
||
|
44621V
|
44621V
44621-36070 Seal, Booster Body[03.2012 -] XZU282 |
44621-36070 |
from US $3.34 |
||
|
44704
|
44704
44704-37120 Reservoir Sub-Assy, Vacuum[03.2012 -] XZU282 |
44704-37120 |
US $120.85 |
||
|
44730A
|
44730A
90999-92002
Air Hose (300 mm)
[03.2012 -] XZU282 |
90999-92002 |
— | ||
|
44730J
|
44730J
90414-10043 Way(For Booster Vacuum)[03.2012 -] XZU282 |
90414-10043 |
US $4.30 |
||
|
44730P
|
44730P
44730-60040 Booster Kit, Brake[03.2012 -] XZU282 |
44730-60040 |
US $77.93 |
||
|
44754C
|
44754C
44754-37040 Bracket, Vacuum Tube, No.1[03.2012 -] XZU282 |
44754-37040 |
US $3.93 |
||
|
44761
|
44761
44761-37600 Tube, Intake Manifold Or Vacuum Pump To Connector[03.2012 -] XZU282 |
44761-37600 |
US $19.66 |
||
|
44768
|
44768
44768-37130 Tube, Booster Vacuum[03.2012 -] XZU282 |
44768-37130 |
US $15.43 |
||
|
44771
|
44771
44771-37C70 Hose, Vacuum Tube Connector[03.2012 -] XZU282 |
44771-37C70 |
US $18.64 |
||
|
44771A
|
44771A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[03.2012 -] XZU282 |
96133-41500 |
from US $2.26 |
||
|
44771D
|
44771D
44771-37A60 Hose, Vacuum Tube Connector[03.2012 -] XZU282 |
44771-37A60 |
US $26.50 |
||
| replacement | |||||
|
44771D
|
44771D
44771-37A61 Hose, Vacuum Tube Connector[03.2012 -] XZU282 |
44771-37A61 |
US $30.58 |
||
|
44771K
|
44771K
95446-09120 Hose, Vacuum Pump[03.2012 -] XZU282 |
95446-09120 |
US $5.73 |
||
|
44773
|
44773
44773-37541 Hose, Vacuum, No.2[03.2012 -] XZU282 |
44773-37541 |
US $27.66 |
||
|
44773A
|
44773A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[03.2012 -] XZU282 |
96133-41500 |
from US $2.26 |
||
|
44773B
|
44773B
96133-41500 Clamp Or Clip(For Air Hose, No.5)[03.2012 -] XZU282 |
96133-41500 |
from US $2.26 |
||
|
44773J
|
44773J
95446-09210 Hose, Vacuum, No.1 (For Front Drive Shift)[03.2012 -] XZU282 |
95446-09210 |
US $4.02 |
||
|
44775C
|
44775C
44775-36100 Hose, No.3(For Clutch Booster Vacuum)[03.2012 -] XZU282 |
44775-36100 |
US $10.57 |
||
|
44775D
|
44775D
96133-41500 Clamp Or Clip(For Air Hose, No.5)[03.2012 -] XZU282 |
96133-41500 |
from US $2.26 |
||
|
44776
|
44776
44776-37320 Hose, Brake Booster[03.2012 -] XZU282 |
44776-37320 |
US $10.48 |
||
|
44776A
|
44776A
90445-17044 Hose, Vacuum Pump[03.2012 -] XZU282 |
90445-17044 |
US $4.19 |
||
|
44778
|
44778
44778-37140 Hose, Connector To Check Valve[03.2012 -] XZU282 |
44778-37140 |
US $8.30 |
||
|
44778A
|
44778A
96133-41500 Clamp Or Clip(For Air Hose, No.5)[03.2012 -] XZU282 |
96133-41500 |
from US $2.26 |
||
|
44778D
|
44778D
44771-37A10 Hose, Vacuum Tube Connector[03.2012 -] XZU282 |
44771-37A10 |
US $7.28 |
||
|
44799
|
44799
44799-37020 Way, Brake Vacuum Hose[03.2012 - 12.2012] XZU282 |
44799-37020 |
US $6.12 |
||
|
44912G
|
44912G
44912-37D90 Tube, 3 Way To Magnetic Valve[03.2012 -] XZU282 |
44912-37D90 |
US $29.99 |
||
|
47262A
|
47262A
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock[03.2012 - 12.2012] XZU282 |
90179-10065 |
from US $1.61 |
||
|
47264D
|
47264D
47264-50010 Clevis, Master Cylinder Push Rod[03.2012 - 12.2012] XZU282 |
47264-50010 |
from US $8.47 |
||
|
9011908A46
|
9011908A46
90119-08A46 BOLT WWASHER |
90119-08A46 |
US $1.43 |
||
|
4737137040
|
4737137040
47371-37040 Clamp(For Clutch Tube) |
47371-37040 |
US $5.73 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9046110754
|
9046110754
90461-10754 New Genuine Part |
90461-10754 |
US $2.62 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9048022022
|
9048022022
90480-22022 GROMMET |
90480-22022 |
from US $1.65 |
||
|
9155180816
|
9155180816
91551-80816 Bolt(For Manual Transmission Oil Separator) |
91551-80816 |
from US $0.78 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.82 |
||
|
9613341500
|
9613341500
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.26 |
||
