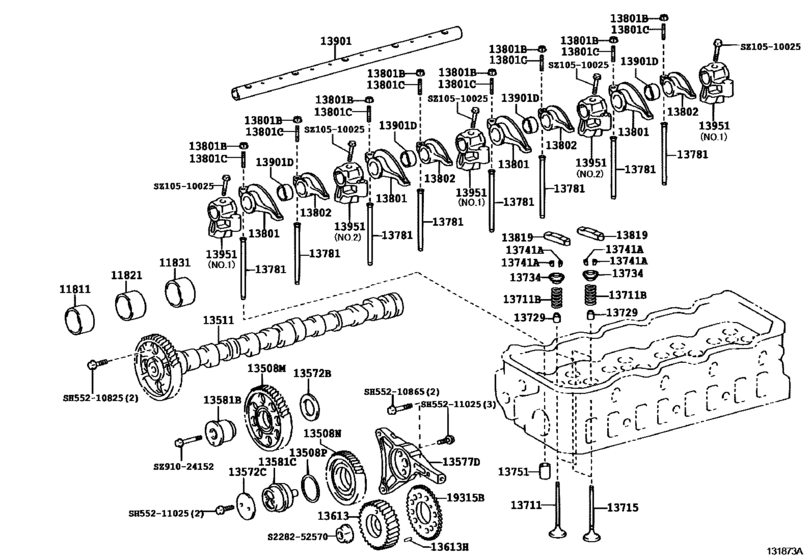

Camshaft & Valve ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11811
|
11811
11811-E0030 Bearing, Camshaft, No.1[03.2012 -] N04C..XZU282 |
11811-E0030 |
US $19.66 |
||
|
11821
|
11821
11821-E0020 Bearing, Camshaft, No.2[03.2012 -] N04C..XZU282 |
11821-E0020 |
US $19.66 |
||
|
11831
|
11831
11831-E0020 Bearing, Camshaft, No.3[03.2012 -] N04C..XZU282 |
11831-E0020 |
US $19.66 |
||
|
13508M
|
13508M
13508-E0510 Gear Sub-Assy, Idle, No.1[03.2012 -] N04C..XZU282 |
13508-E0510 |
US $196.56 |
||
|
13508N
|
13508N
13508-E0520 Gear Sub-Assy, Idle, No.2[03.2012 -] N04C..XZU282 |
13508-E0520 |
US $133.95 |
||
|
13508P
|
13508P
SN732-10543 Ring, O(For Idle Gear)[03.2012 -] N04C..XZU282 |
SN732-10543 |
US $6.84 |
||
|
13511
|
13511
13501-E0620 Camshaft Sub-Assy[03.2012 -] N04C..XZU282 |
13501-E0620 |
US $757.12 |
||
|
13572B
|
13572B
S1357-21320 Plate, Idle Gear Thrust, No.1[03.2012 -] N04C..XZU282 |
S1357-21320 |
US $7.57 |
||
|
13572C
|
13572C
S1357-21480 Plate, Idle Gear Thrust, No.2[03.2012 -] N04C..XZU282 |
S1357-21480 |
US $7.57 |
||
|
13577D
|
13577D
S1364-51081 Plate, Lock[03.2012 -] N04C..XZU282 |
S1364-51081 |
US $63.34 |
||
|
13581B
|
13581B
13581-E0021 Shaft, Idle Gear, No.1[03.2012 -] N04C..XZU282 |
13581-E0021 |
from US $35.67 |
||
|
13581C
|
13581C
13581-E0010 Shaft, Idle Gear. No.2[03.2012 -] N04C..XZU282 |
13581-E0010 |
US $167.44 |
||
|
13613
|
13613
13613-E0170 Gear, Injection Pump Drive[03.2012 -] N04C..XZU282 |
13613-E0170 |
from US $31.62 |
||
|
13613H
|
13613H
SM212-00314 Pin, Straight(For Injection Pump Drive Gear)[03.2012 -] N04C..XZU282 |
SM212-00314 |
US $1.16 |
||
|
13711
|
13711
S1371-11800 Valve, Intake[03.2012 -] N04C..XZU282 |
S1371-11800 |
from US $19.04 |
||
|
13711B
|
13711B
S1373-11690 Spring, Compression(For Inner)[03.2012 -] N04C..XZU282 |
S1373-11690 |
US $12.19 |
||
|
13715
|
13715
S1371-51870 Valve, Exhaust[03.2012 -] N04C..XZU282 |
S1371-51870 |
from US $28.18 |
||
|
13729
|
13729
S1371-91470 Seal, Intake Valve Stem Oil[03.2012 -] N04C..XZU282 |
S1371-91470 |
from US $3.44 |
||
|
13734
|
13734
S1373-51460 Seat, Valve Spring[03.2012 -] N04C..XZU282 |
S1373-51460 |
US $11.29 |
||
|
13741A
|
13741A
SZ910-26013 Lock, Valve Spring Retainer[03.2012 -] N04C..XZU282 |
SZ910-26013 |
US $4.48 |
||
|
13751
|
13751
13751-E0040 Lifter, Valve[03.2012 -] N04C..XZU282 |
13751-E0040 |
from US $11.25 |
||
|
13781
|
13781
S1378-11500 Rod, Valve Push[03.2012 -] N04C..XZU282 |
S1378-11500 |
US $11.29 |
||
|
13801
|
13801
13811-E0190 Arm Sub-Assy, Valve Rocker, No.1[03.2012 -] N04C..XZU282 |
13811-E0190 |
from US $33.57 |
||
|
13801B
|
13801B
S1378-81030 Nut, Hexagon(For Valve Adjusting)[03.2012 -] N04C..XZU282 |
S1378-81030 |
US $2.91 |
||
|
13801C
|
13801C
S1378-71161 Screw, Valve Adjusting[03.2012 -] N04C..XZU282 |
S1378-71161 |
US $7.86 |
||
|
13802
|
13802
13811-E0200 Arm Sub-Assy, Valve Rocker, No.2[03.2012 -] N04C..XZU282 |
13811-E0200 |
US $35.67 |
||
|
13819
|
13819
13819-E0050 Bridge, Valve[03.2012 -] N04C..XZU282 |
13819-E0050 |
US $6.99 |
||
|
13901
|
13901
13901-E0030 Shaft Sub-Assy, Valve Rocker, No.1[03.2012 -] N04C..XZU282 |
13901-E0030 |
US $189.28 |
||
|
13901D
|
13901D
SZ910-29119 Collar(For Valve Rocker Shaft)[03.2012 -] N04C..XZU282 |
SZ910-29119 |
US $3.14 |
||
|
13951
|
13951
13951-E0040 Support, Valve Rocker, No.1[03.2012 -] N04C..XZU282 ＮＯ．２ |
13951-E0040 |
US $67.70 |
||
|
13951
|
13951
13951-E0050 Support, Valve Rocker, No.1[03.2012 -] N04C..XZU282 ＮＯ．１ |
13951-E0050 |
US $84.45 |
||
|
19315B
|
19315B
S2119-11221 Plate, Crank Angle Sensor[03.2012 -] N04C..XZU282 |
S2119-11221 |
US $10.93 |
||
|
S228252570
|
S228252570
S2282-52570 New Genuine Part |
S2282-52570 |
US $2.18 |
||
|
SH55210825
|
SH55210825
SH552-10825 NR BOLTFLANGE 300 500S |
SH552-10825 |
US $6.81 |
||
|
SH55210865
|
SH55210865
SH552-10865 Bolt(For Cylinder Head Cover) |
SH552-10865 |
US $17.30 |
||
|
SH55211025
|
SH55211025
SH552-11025 New Genuine Part |
SH552-11025 |
US $7.71 |
||
|
SZ10510025
|
SZ10510025
SZ105-10025 NR ON OFFER BOLTFLANGE 300 500 |
SZ105-10025 |
US $8.56 |
||
|
SZ91024152
|
SZ91024152
SZ910-24152 Bolt, Hexagon(For Idle Gear Bolt Lock) |
SZ910-24152 |
US $6.99 |
