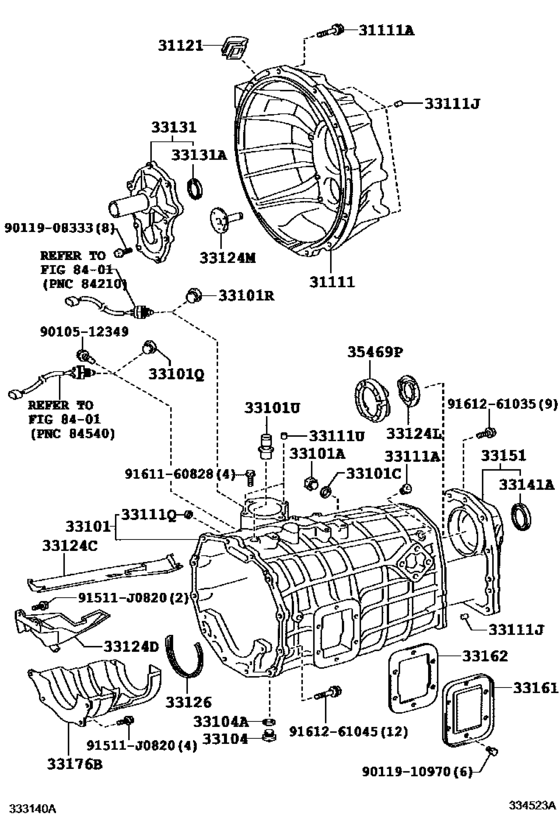

Clutch Housing & Transmission Case (Mtm) ([03.2012 - ] M550 (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-37100 Housing, Clutch[03.2012 - 12.2012] XZU282 |
31111-37100 |
US $487.76 |
||
| replacement | |||||
|
31111
|
31111
31111-36400 Housing, Clutch[03.2012 - 12.2012] XZU282 |
31111-36400 |
US $442.62 |
||
|
31111A
|
31111A
90119-10898 Bolt(For Clutch Housing & Transmission Case Setting)[03.2012 - 12.2012] XZU282 |
90119-10898 |
from US $1.24 |
||
|
31121
|
31121
31121-28041 Cover, Clutch Housing, No.1[03.2012 -] XZU282 |
31121-28041 |
from US $11.11 |
||
|
33101
|
33101
33101-36130 Case Sub-Assy, Manual Transmission[03.2012 - 12.2012] XZU282 |
33101-36130 |
US $586.77 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[03.2012 - 12.2012] XZU282 |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[03.2012 - 12.2012] XZU282 |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[03.2012 - 12.2012] XZU282 |
90430-T0021 |
US $0.99 |
||
|
33101Q
|
33101Q
90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)[03.2012 - 12.2012] XZU282 |
90341-16013 |
US $2.97 |
||
|
33101R
|
33101R
90341-18039 Plug, No.2(For Transmission Case)[03.2012 - 12.2012] XZU282 |
90341-18039 |
US $1.49 |
||
|
33101U
|
33101U
90930-03090 Plug, Breather(For Manual Transmission)[03.2012 - 12.2012] XZU282 |
90930-03090 |
US $6.26 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[03.2012 - 12.2012] XZU282 |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[03.2012 - 12.2012] XZU282 |
90430-18008 |
from US $0.87 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[03.2012 - 12.2012] XZU282 |
90430-T0021 |
US $0.99 |
||
|
33111A
|
33111A
90341-14008 Plug, W/head Taper Screw, No.1[03.2012 - 12.2012] XZU282 |
90341-14008 |
US $1.75 |
||
|
33111J
|
33111J
90250-10232 Pin, Straight(For Engine Rear Oil Seal)[03.2012 - 12.2012] XZU282 長さ＝１５，外径＝８ |
90250-10232 |
US $1.79 |
||
|
33111Q
|
33111Q
90311-13001 Seal, Oil(For Transmission Case)[03.2012 - 12.2012] XZU282 |
90311-13001 |
from US $3.23 |
||
|
33111U
|
33111U
90253-11021 Pin, Ring[03.2012 - 12.2012] XZU282 長さ＝８，外径＝１１ |
90253-11021 |
from US $1.41 |
||
|
33124C
|
33124C
33124-37020 Pipe, Oil Receiver, No.1(Mtm)[03.2012 - 12.2012] XZU282 |
33124-37020 |
US $9.32 |
||
| replacement | |||||
|
33124C
|
33124C
33124-37021 Pipe, Oil Receiver, No.1(Mtm)[03.2012 - 12.2012] XZU282 |
33124-37021 |
from US $8.44 |
||
|
33124D
|
33124D
33124-37030 Pipe, Oil Receiver, No.2(Mtm)[03.2012 - 12.2012] XZU282 |
33124-37030 |
US $12.96 |
||
|
33124L
|
33124L
33124-37040 Pipe, Oil Receiver, N0.3(Mtm)[03.2012 - 12.2012] XZU282 |
33124-37040 |
from US $6.12 |
||
|
33124M
|
33124M
33124-37050 Pipe, Oil Receiver, N0.4(Mtm)[03.2012 - 12.2012] XZU282 |
33124-37050 |
US $4.08 |
||
|
33126
|
33126
33126-37010 Seal, Oil Receiver[03.2012 - 12.2012] XZU282 |
33126-37010 |
from US $11.31 |
||
|
33131
|
33131
33018-37050 Retainer, Bearing, Front(Mtm)[03.2012 - 12.2012] XZU282 |
33018-37050 |
US $72.51 |
||
|
33131A
|
33131A
90311-35023 Seal, Oil(For Transmission Front Bearing Retainer)[03.2012 - 12.2012] XZU282 |
90311-35023 |
from US $4.30 |
||
|
33141A
|
33141A
90311-48011 Seal, Oil(For Transmission Rear Bearing Retainer)[03.2012 - 12.2012] XZU282 |
90311-48011 |
from US $8.42 |
||
|
33151
|
33151
33017-37070 Retainer, Output Shaft Rear Bearing(Mtm)[03.2012 - 12.2012] XZU282 |
33017-37070 |
US $101.92 |
||
|
33161
|
33161
33161-36010 Cover, Manual Transmission Power Take-Off[03.2012 - 12.2012] XZU282 |
33161-36010 |
US $16.13 |
||
|
33162
|
33162
33162-36020 Gasket, Transmission Power Take-Off Cover(Mtm)[03.2012 - 12.2012] XZU282 |
33162-36020 |
from US $6.14 |
||
|
33176B
|
33176B
33176-37010 Separator, Transmission Oil(Mtm)[03.2012 - 12.2012] XZU282 |
33176-37010 |
US $42.98 |
||
|
35469P
|
35469P
35469-37010 Spacer (For Transmission Rear Retainer)[03.2012 - 12.2012] XZU282 |
35469-37010 |
from US $4.72 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $0.89 |
||
|
9010512349
|
9010512349
90105-12349 New Genuine Part |
90105-12349 |
US $0.79 |
||
|
9011908333
|
9011908333
90119-08333 BOLT |
90119-08333 |
US $2.15 |
||
|
9011910970
|
9011910970
90119-10970 BOLT WWASHER |
90119-10970 |
US $0.61 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
