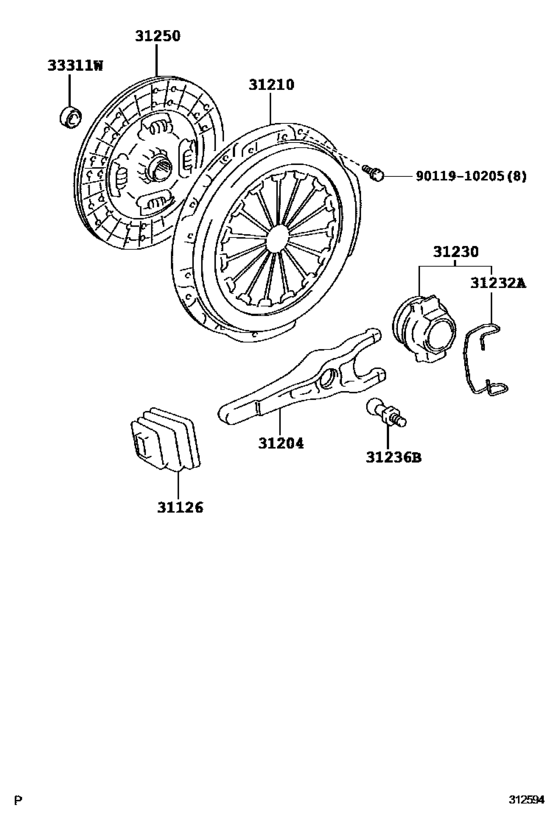

Clutch & Release Fork ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-36070 Boot, Clutch Release Fork[03.2012 -] XZU282 |
31126-36070 |
from US $11.29 |
||
|
31204
|
31204
31204-37010 Fork Sub-Assy, Clutch Release[03.2012 -] XZU282 |
31204-37010 |
US $63 |
||
|
31210
|
31210
31210-37180 Cover Assy, Clutch[03.2012 -] XZU282 |
31210-37180 |
US $308.80 |
||
|
31230
|
31230
31230-36200 Bearing Assy, Clutch Release[03.2012 -] XZU282 |
31230-36200 |
from US $91.88 |
||
|
31232A
|
31232A
31232-36030 Clip Or Spring, Release Bearing Hub[03.2012 -] XZU282 |
31232-36030 |
from US $1.41 |
||
|
31236B
|
31236B
31236-36060 Ball, Release Fork[03.2012 -] XZU282 |
31236-36060 |
US $8.60 |
||
|
31250
|
31250
31250-37170
Disc Assy, Clutch
[03.2012 -] XZU282 |
31250-37170 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-37171 DISC ASSY, CLUTCH[03.2012 -] XZU282 |
31250-37171 |
from US $249.58 |
||
|
33311W
|
33311W
90363-17037 Bearing (For Input Shaft)[03.2012 -] XZU282 |
90363-17037 |
US $12.54 |
||
|
9011910205
|
9011910205
90119-10205 Bolt |
90119-10205 |
from US $1.12 |
||
