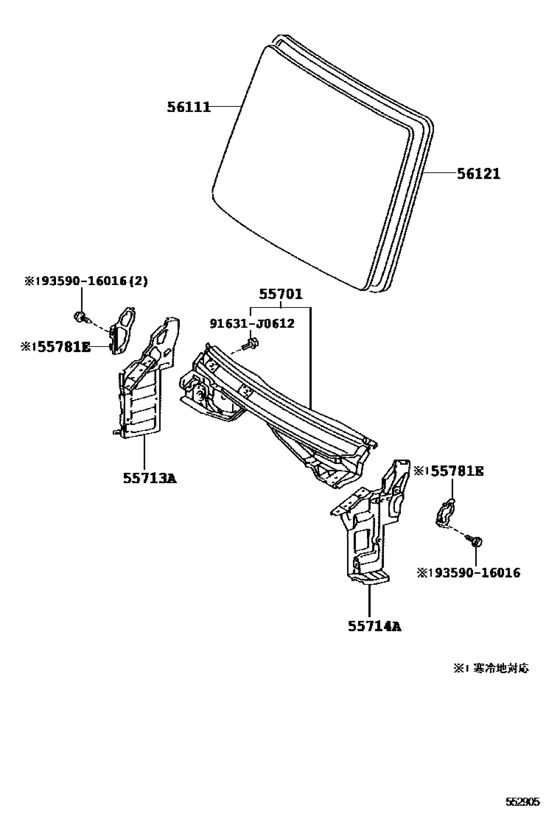

Cowl Panel & Windshield Glass ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55701
|
55701
55700-37301 Panel Sub-Assy, Cowl[03.2012 -] XZU282 |
55700-37301 |
US $573.66 |
||
|
55713A
|
55713A
55705-37041 Panel, Cowl Top Side, Rh[03.2012 -] XZU282 |
55705-37041 |
US $113.57 |
||
|
55714A
|
55714A
55706-37181 Panel, Cowl Top Side, Lh[03.2012 -] XZU282 |
55706-37181 |
US $119.39 |
||
|
55781E
|
55781E
55708-37010 Louver Sub-Assy, Cowl Top Ventilator[03.2012 -] XZU282 寒冷地対応,右側 |
55708-37010 |
US $14.85 |
||
|
55781E
|
55781E
55709-37010 Louver Sub-Assy, Cowl Top Ventilator[03.2012 -] XZU282 寒冷地対応,左側 |
55709-37010 |
US $9.17 |
||
|
56111
|
56111
56111-37190
Glass, Windshield
[03.2012 -] XZU282 ＊ＴＥＭ，Ｔ＝５．７，グリーン |
56111-37190 |
— | ||
|
56121
|
56121
56121-37070 Weatherstrip, Windshield[03.2012 -] XZU282 |
56121-37070 |
US $157.76 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9359016016
|
9359016016
93590-16016 New Genuine Part |
93590-16016 |
US $1.31 |
