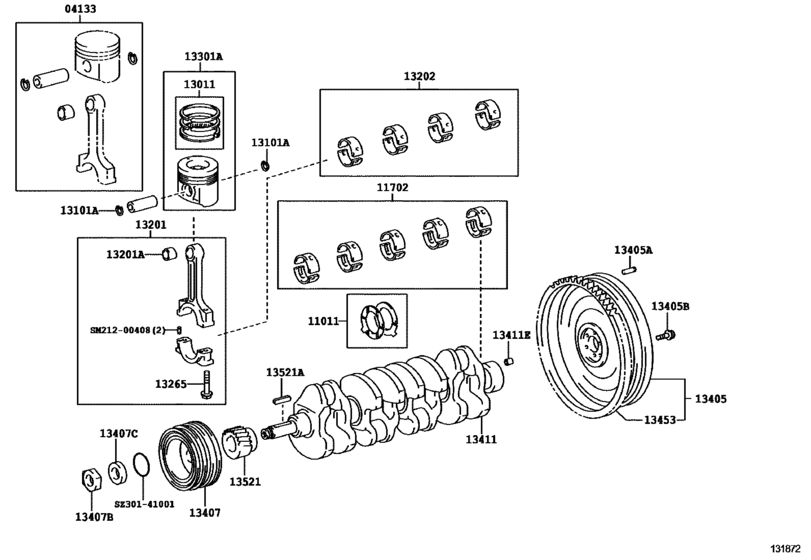

Crankshaft & Piston ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04133
|
04133
04133-E0100
Pin Kit, Piston
[03.2012 - 08.2012] N04C..XZU282 |
04133-E0100 |
— | ||
| replacement | |||||
|
04133
|
04133
04133-E0101 Pin Kit, Piston[03.2012 - 08.2012] N04C..XZU282 |
04133-E0101 |
from US $34.25 |
||
|
04133
|
04133
04133-E0101 Pin Kit, Piston[09.2012 -] N04C..XZU282 |
04133-E0101 |
from US $34.25 |
||
|
11011
|
11011
11011-E0030 Washer Set, Crankshaft Thrust[03.2012 -] N04C..XZU282 ＳＴＤ |
11011-E0030 |
US $23.59 |
||
|
11702
|
11702
11701-E0040
Bearing Set, Crankshaft
[03.2012 -] N04C..XZU282 ＳＴＤ |
11701-E0040 |
— | ||
| replacement | |||||
|
11702
|
11702
11701-E0070 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 ＳＴＤ |
11701-E0070 |
from US $104.46 |
||
|
11702
|
11702
11704-E0010 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 Ｕ／Ｓ ０．２５ |
11704-E0010 |
US $240.24 |
||
| replacement | |||||
|
11702
|
11702
11704-E0040 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 Ｕ／Ｓ ０．２５ |
11704-E0040 |
US $240.24 |
||
|
11702
|
11702
11705-E0010 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 Ｕ／Ｓ ０．５０ |
11705-E0010 |
US $240.24 |
||
| replacement | |||||
|
11702
|
11702
11705-E0040 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 Ｕ／Ｓ ０．５０ |
11705-E0040 |
US $240.24 |
||
|
11702
|
11702
11706-E0010 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 Ｕ／Ｓ ０．７５ |
11706-E0010 |
US $240.24 |
||
| replacement | |||||
|
11702
|
11702
11706-E0020 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 Ｕ／Ｓ ０．７５ |
11706-E0020 |
US $240.24 |
||
|
11702
|
11702
11707-E0010 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 Ｕ／Ｓ １．００ |
11707-E0010 |
US $240.24 |
||
| replacement | |||||
|
11702
|
11702
11707-E0020 Bearing Set, Crankshaft[03.2012 -] N04C..XZU282 Ｕ／Ｓ １．００ |
11707-E0020 |
US $240.24 |
||
|
13011
|
13011
S1304-E0020 Ring Set, Piston[03.2012 -] N04C..XZU282 ＳＴＤ |
S1304-E0020 |
from US $60.34 |
||
|
13101A
|
13101A
SZ520-37001 Ring, Hole Snap(For Piston Pin)[03.2012 -] N04C..XZU282 |
SZ520-37001 |
from US $5.57 |
||
|
13201
|
13201
13260-E0050
Rod Sub-Assy, Connecting
[03.2012 -] N04C..XZU282 |
13260-E0050 |
— | ||
| replacement | |||||
|
13201
|
13201
13260-E0052 ROD ASSY, CONNE[03.2012 -] N04C..XZU282 |
13260-E0052 |
from US $170 |
||
|
13201A
|
13201A
S1327-21400 Bush(For Connecting Rod Small End)[03.2012 -] N04C..XZU282 |
S1327-21400 |
US $9.46 |
||
|
13202
|
13202
13041-E0610
Bearing, Connecting Rod
[03.2012 -] N04C..XZU282 ＳＴＤ |
13041-E0610 |
— | ||
| replacement | |||||
|
13202
|
13202
13041-E0690 Bearing, Connecting Rod[03.2012 -] N04C..XZU282 ＳＴＤ |
13041-E0690 |
from US $74.25 |
||
|
13265
|
13265
13265-E0010 Bolt, Connecting Rod[03.2012 -] N04C..XZU282 |
13265-E0010 |
US $9.76 |
||
|
13301A
|
13301A
S130B-E0140
Piston Set, W/piston Ring
[03.2012 -] N04C..XZU282 |
S130B-E0140 |
— | ||
| replacement | |||||
|
13301A
|
13301A
S130B-E0141 Piston Set, W/piston Ring[03.2012 -] N04C..XZU282 |
S130B-E0141 |
US $282.08 |
||
|
13405
|
13405
13450-E0L50 Flywheel Sub-Assy[03.2012 -] N04C..XZU282 |
13450-E0L50 |
US $1,121.12 |
||
|
13405A
|
13405A
SM212-01024 Pin, Straight(For Flywheel)[03.2012 -] N04C..XZU282 長さ＝２４，外径＝１０ |
SM212-01024 |
US $6.63 |
||
|
13405B
|
13405B
S1345-51820 Bolt, Flywheel Setting[03.2012 -] N04C..XZU282 |
S1345-51820 |
US $10.57 |
||
|
13407
|
13407
13407-E0160 Damper Sub-Assy, Crankshaft[03.2012 -] N04C..XZU282 |
13407-E0160 |
US $967.20 |
||
|
13407B
|
13407B
SZ170-27001 Nut, Hexagon(For Crankshaft Damper)[03.2012 -] N04C..XZU282 |
SZ170-27001 |
US $9.46 |
||
|
13407C
|
13407C
SZ910-16034 Spacer(For Crankshaft Damper)[03.2012 -] N04C..XZU282 |
SZ910-16034 |
US $10.04 |
||
|
13411
|
13411
13411-E0071 Crankshaft[03.2012 -] N04C..XZU282 |
13411-E0071 |
from US $1,457.09 |
||
|
13411E
|
13411E
SZ910-29013 Collar(For Crankshaft)[03.2012 -] N04C..XZU282 |
SZ910-29013 |
US $10.93 |
||
|
13453
|
13453
13453-E0080 Gear, Flywheel Ring[03.2012 -] N04C..XZU282 |
13453-E0080 |
US $631.80 |
||
|
13521
|
13521
S1352-11660
Gear Or Sprocket, Crankshaft Timing
[03.2012 -] N04C..XZU282 |
S1352-11660 |
— | ||
| replacement | |||||
|
13521
|
13521
1352178110 Gear, Crankshaft[03.2012 -] N04C..XZU282 |
1352178110 |
US $127.37 |
||
|
13521A
|
13521A
SM171-01028 Key, Crankshaft(For Crankshaft Pulley Set)[03.2012 -] N04C..XZU282 |
SM171-01028 |
US $5.38 |
||
|
SM21200408
|
SM21200408
SM212-00408 New Genuine Part |
SM212-00408 |
US $0.87 |
||
|
SZ30141001
|
SZ30141001
SZ301-41001 Ring, O(For Crankshaft Pulley) |
SZ301-41001 |
US $8.24 |
||
