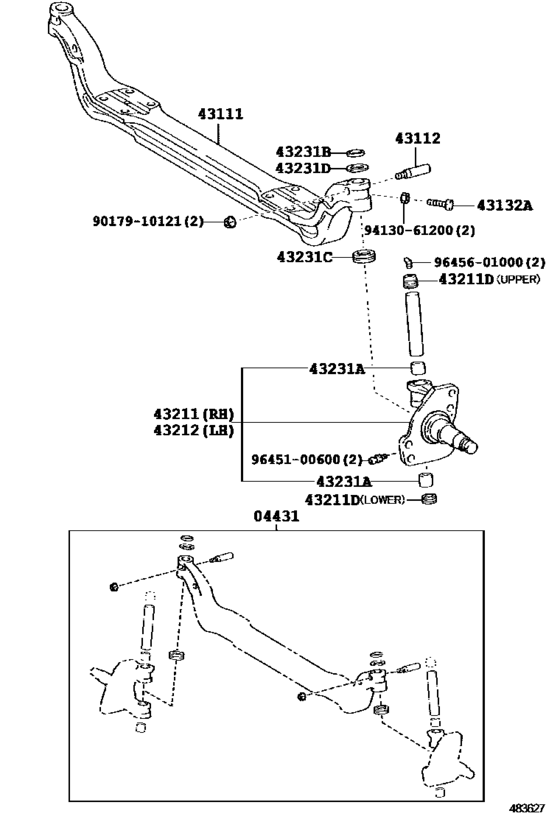

Front Axle Arm & Steering Knuckle ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04431
|
04431
04431-37480 Pin Kit, Steering Knuckle King[03.2012 -] XZU282 |
04431-37480 |
US $131.04 |
||
| replacement | |||||
|
04431
|
04431
0443C-37020
Pin Kit, Steering Knuckle King
[03.2012 -] XZU282 |
0443C-37020 |
— | ||
|
43111
|
43111
43111-37031 I Beam, Front Axle[03.2012 -] XZU282 |
43111-37031 |
US $559.10 |
||
|
43112
|
43112
43112-36020 Pin, King Pin Lock[03.2012 -] XZU282 |
43112-36020 |
US $5.56 |
||
|
43132A
|
43132A
90106-12008 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)[03.2012 -] XZU282 |
90106-12008 |
US $2.15 |
||
|
43211
|
43211
43201-37110 Knuckle, Steering, Rh[03.2012 -] XZU282 |
43201-37110 |
US $272 |
||
|
43211D
|
43211D
90345-33003 Plug (For Steering Knuckle)[03.2012 -] XZU282 下側 |
90345-33003 |
US $5.73 |
||
|
43211D
|
43211D
90345-33004 Plug (For Steering Knuckle)[03.2012 -] XZU282 上側 |
90345-33004 |
US $4.30 |
||
|
43212
|
43212
43202-37110 Knuckle, Steering, Lh[03.2012 -] XZU282 |
43202-37110 |
US $272 |
||
|
43231A
|
43231A
90999-73086 Bush, Bimetal Formed (For Steering Knuckle King Pin Bush)[03.2012 -] XZU282 |
90999-73086 |
from US $8.24 |
||
|
43231B
|
43231B
90312-28003 Seal, Dust Or Ring, O (For Steering Knuckle King Pin)[03.2012 -] XZU282 |
90312-28003 |
US $2.15 |
||
|
43231C
|
43231C
90367-28001 Bearing (For Steering Knuckle King Pin)[03.2012 -] XZU282 |
90367-28001 |
from US $8.11 |
||
|
43231D
|
43231D
90564-28001 Shim (For King Pin)[03.2012 -] XZU282 厚さ＝１．９ |
90564-28001 |
US $2.48 |
||
|
43231D
|
43231D
90564-28002 Shim (For King Pin)[03.2012 -] XZU282 厚さ＝２．０ |
90564-28002 |
US $2.48 |
||
|
43231D
|
43231D
90564-28003 Shim (For King Pin)[03.2012 -] XZU282 厚さ＝２．１ |
90564-28003 |
US $2.48 |
||
|
43231D
|
43231D
90564-28004 Shim (For King Pin)[03.2012 -] XZU282 厚さ＝２．２ |
90564-28004 |
US $2.48 |
||
|
43231D
|
43231D
90564-28005 Shim (For King Pin)[03.2012 -] XZU282 厚さ＝２．３ |
90564-28005 |
US $2.48 |
||
|
43231D
|
43231D
90564-28006 Shim (For King Pin)[03.2012 -] XZU282 厚さ＝２．４ |
90564-28006 |
US $2.48 |
||
|
43231D
|
43231D
90564-28007 Shim (For King Pin)[03.2012 -] XZU282 厚さ＝１．７ |
90564-28007 |
US $1.60 |
||
|
43231D
|
43231D
90564-28008 Shim (For King Pin)[03.2012 -] XZU282 厚さ＝１．８ |
90564-28008 |
US $1.60 |
||
|
9017910121
|
9017910121
90179-10121 NUT |
90179-10121 |
US $1.61 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
|
9645100600
|
9645100600
96451-00600 Fitting, Grease Small(For Tail Gate Lock Link) |
96451-00600 |
from US $1.39 |
||
|
9645601000
|
9645601000
96456-01000 FITTING GREASE |
96456-01000 |
US $4.66 |
||
