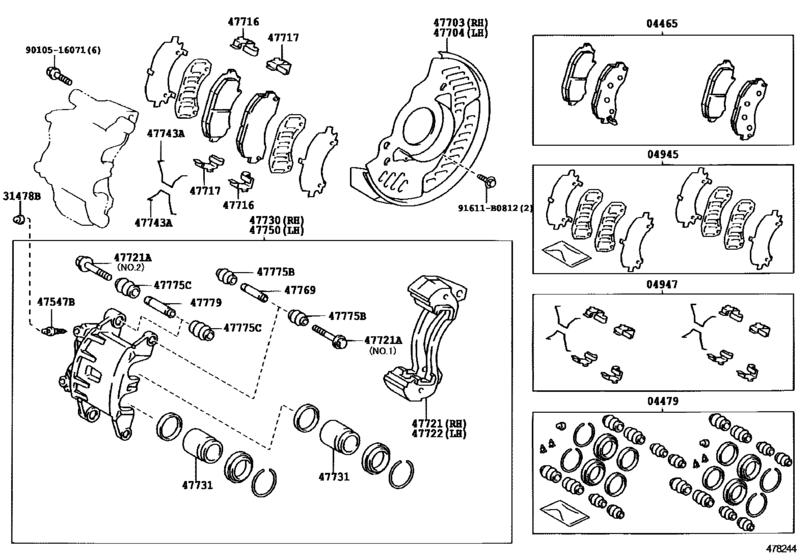

Front Disc Brake Caliper & Dust Cover ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04465
|
04465
04465-37050 Pad Kit, Disc Brake, Front[03.2012 -] XZU282 マーク ＡＫ ＰＡ５２７ |
04465-37050 |
US $220.80 |
||
|
04479
|
04479
04479-37010 Cylinder Kit, Disc Brake, Front[03.2012 -] XZU282 |
04479-37010 |
from US $49.10 |
||
|
04945
|
04945
04945-37020 Shim Kit, Anti Squeal, Front[03.2012 -] XZU282 |
04945-37020 |
US $29.40 |
||
|
04947
|
04947
04947-36020 Fitting Kit, Disc Brake, Front[03.2012 -] XZU282 |
04947-36020 |
US $46.54 |
||
|
31478B
|
31478B
31478-30010 Bleeder Plug Cap[03.2012 -] XZU282 |
31478-30010 |
from US $1.48 |
||
|
47547B
|
47547B
47547-12010 Plug, Bleeder(For Release Cylinder)[03.2012 -] XZU282 |
47547-12010 |
from US $2.26 |
||
|
47703
|
47703
47703-37030 Cover Sub-Assy, Disc Brake Dust, Front Rh[03.2012 - 12.2012] XZU282 |
47703-37030 |
US $37.27 |
||
|
47704
|
47704
47704-37030 Cover Sub-Assy, Disc Brake Dust, Front Lh[03.2012 - 12.2012] XZU282 |
47704-37030 |
US $37.27 |
||
|
47716
|
47716
47716-36020 Plate, Pad Support, No.1(For Front Disc Brake)[03.2012 -] XZU282 |
47716-36020 |
US $4.66 |
||
|
47717
|
47717
47717-36020 Plate, Pad Support, No.2(For Front Disc Brake)[03.2012 -] XZU282 |
47717-36020 |
US $4.66 |
||
|
47721
|
47721
47721-37020 Mounting, Front Disc Brake Cylinder, Rh[03.2012 -] XZU282 |
47721-37020 |
US $148.51 |
||
|
47721A
|
47721A
90119-08B87 Bolt(For Front Disc Brake Cylinder Mounting)[03.2012 -] XZU282 ＊８−１．２５ＰＸ５９−２７,ＮＯ．１ |
90119-08B87 |
US $2.15 |
||
|
47721A
|
47721A
90119-12256 Bolt(For Front Disc Brake Cylinder Slide)[03.2012 -] XZU282 ＊１２−１．２５ＰＸ７５−３０,ＮＯ．２ |
90119-12256 |
from US $2.93 |
||
|
47722
|
47722
47722-37010 Mounting, Front Disc Brake Cylinder, Lh[03.2012 -] XZU282 |
47722-37010 |
US $148.51 |
||
|
47730
|
47730
47730-37020 Cylinder Assy, Front Disc Brake, Rh[03.2012 -] XZU282 |
47730-37020 |
US $634.82 |
||
|
47731
|
47731
47731-37010
Piston, Front Disc Brake
[03.2012 -] XZU282 |
47731-37010 |
— | ||
| replacement | |||||
|
47731
|
47731
47731-36020 Piston, Front Disc Brake[03.2012 -] XZU282 |
47731-36020 |
from US $24.76 |
||
|
47743A
|
47743A
47743-36020 Spring, Anti-Squeal(For Front Disc Brake)[03.2012 -] XZU282 |
47743-36020 |
from US $1.10 |
||
|
47750
|
47750
47750-37020 Cylinder Assy, Disc Brake, Lh[03.2012 -] XZU282 |
47750-37020 |
US $634.82 |
||
|
47769
|
47769
47769-36030 Bush, Cylinder Slide, No.1(For Front Disc Brake)[03.2012 -] XZU282 |
47769-36030 |
from US $5.68 |
||
|
47775B
|
47775B
47775-36040 Boot, Bush Dust, No.1[03.2012 -] XZU282 |
47775-36040 |
US $5.02 |
||
|
47775C
|
47775C
47775-36050 Boot, Bush Dust, No.1[03.2012 -] XZU282 |
47775-36050 |
US $8.24 |
||
|
47779
|
47779
47779-36010 Bush, Cylinder Slide, No.2(For Front Disc Brake)[03.2012 -] XZU282 |
47779-36010 |
from US $11.19 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9010516071
|
9010516071
90105-16071 Bolt, Hexagon(For Front Disc Brake Caliper) |
90105-16071 |
US $4.30 |
||
