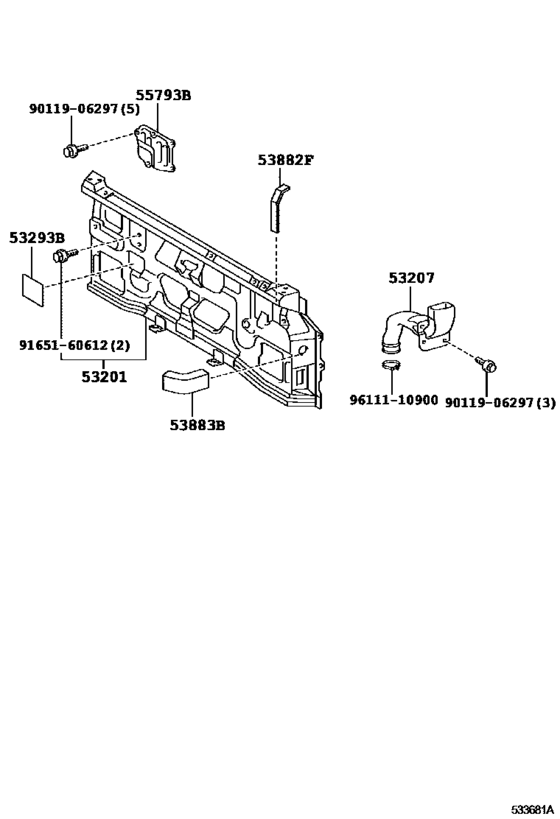

Front Fender Apron & Dash Panel ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-37041 Support Sub-Assy, Radiator[03.2012 -] XZU282 |
53201-37041 |
US $503.78 |
||
|
53207
|
53207
53207-37060 Pipe Sub-Assy, Air Inlet[03.2012 -] XZU282 |
53207-37060 |
US $120.85 |
||
|
53293B
|
53293B
53293-37010 Seal, Radiator Support Service Hole[03.2012 -] XZU282 |
53293-37010 |
US $12.23 |
||
|
53882F
|
53882F
53882-37020 Seal, Front Fender[03.2012 - 12.2012] XZU282 寒冷地対応 |
53882-37020 |
US $5.53 |
||
|
53883B
|
53883B
53883-37030 Seal, Front Fender, Lh[03.2012 - 12.2012] XZU282 寒冷地対応 |
53883-37030 |
US $53.58 |
||
|
55793B
|
55793B
55793-37010 Cover, Wiper Motor Service Hole[03.2012 -] XZU282 |
55793-37010 |
US $18.78 |
||
|
9011906297
|
9011906297
90119-06297 BOLT |
90119-06297 |
US $2.15 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9611110900
|
9611110900
96111-10900 Clamp, Hose |
96111-10900 |
from US $1.16 |
