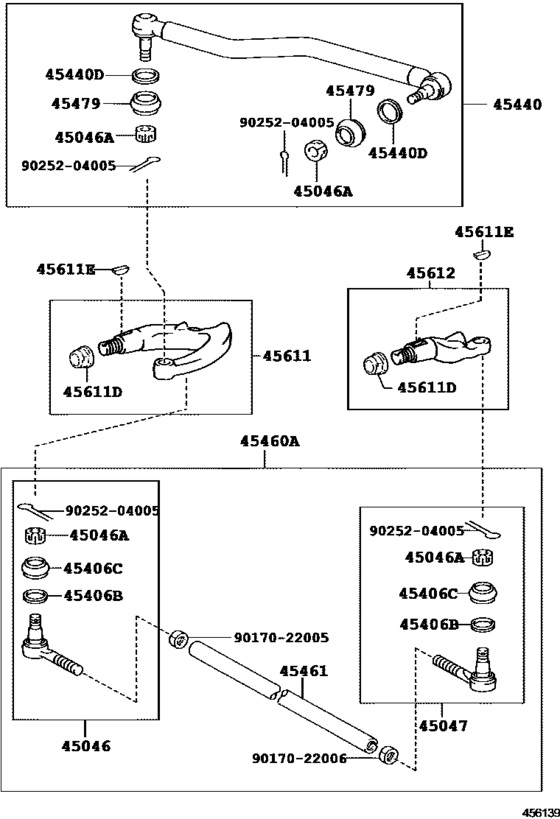

Front Steering Gear & Link ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-39416 End Sub-Assy, Tie Rod, Rh[03.2012 -] XZU282 |
45046-39416 |
from US $33.61 |
||
|
45046A
|
45046A
90171-18003 Nut, Castle(For Relay Rod)[03.2012 -] XZU282 |
90171-18003 |
from US $1.10 |
||
|
45047
|
45047
45047-39256 End Sub-Assy, Tie Rod, Lh[03.2012 -] XZU282 |
45047-39256 |
US $40.99 |
||
|
45406B
|
45406B
90522-34002 Ring, Set(For Tie Rod End Dust Seal)[03.2012 -] XZU282 |
90522-34002 |
US $1.79 |
||
|
45406C
|
45406C
45479-36030 Seal, Dust(For Tie Rod)[03.2012 -] XZU282 |
45479-36030 |
from US $6.19 |
||
|
45440
|
45440
45440-39206 Link Assy, Steering Drag[03.2012 -] XZU282 |
45440-39206 |
US $236.80 |
||
|
45440D
|
45440D
90522-32011 Ring, Set(For Relay Rod)[03.2012 -] XZU282 |
90522-32011 |
from US $1.67 |
||
|
45460A
|
45460A
45460-39516 Rod Assy, Tie[03.2012 -] XZU282 |
45460-39516 |
US $206.72 |
||
|
45461
|
45461
45461-37050 Rod, Steering Tie[03.2012 -] XZU282 |
45461-37050 |
US $118.08 |
||
|
45479
|
45479
45479-37040 Seal, Drag Link Dust[03.2012 -] XZU282 |
45479-37040 |
US $13.98 |
||
|
45611
|
45611
45611-39125 Arm, Steering Knuckle, Rh[03.2012 -] XZU282 |
45611-39125 |
US $135.41 |
||
|
45611D
|
45611D
90178-26002 Nut(For Steering Knuckle Arm)[03.2012 -] XZU282 |
90178-26002 |
US $5.91 |
||
|
45611E
|
45611E
90280-07004 Key, Woodruff(For Steering Idler Arm)[03.2012 -] XZU282 |
90280-07004 |
US $7.88 |
||
|
45612
|
45612
45612-39245 Arm, Steering Knuckle, Lh[03.2012 -] XZU282 |
45612-39245 |
US $59.70 |
||
|
9017022005
|
9017022005
90170-22005 Nut(For Steering Tie Rod Lock) |
90170-22005 |
from US $1.50 |
||
|
9017022006
|
9017022006
90170-22006 Nut(For Steering Tie Rod Lock) |
90170-22006 |
US $4.66 |
||
|
9025204005
|
9025204005
90252-04005 PIN COTTER |
90252-04005 |
from US $0.74 |
