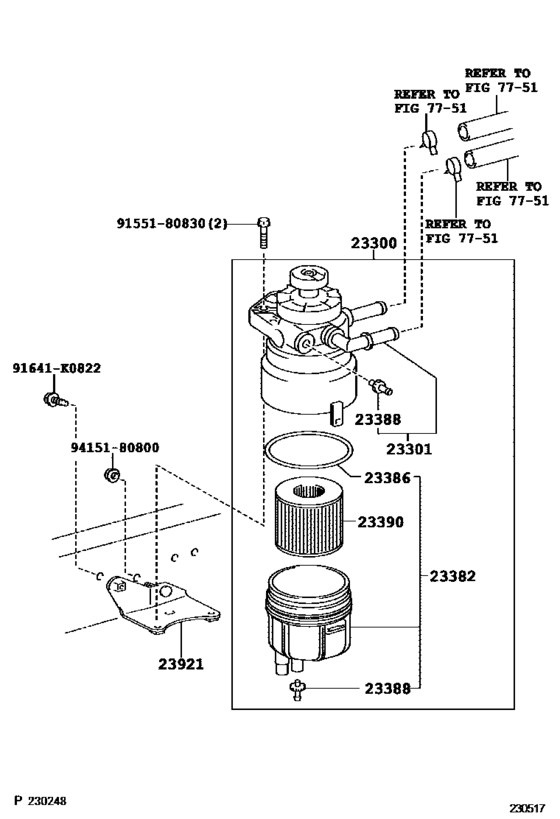

Fuel Filter ([03.2012 - ] ﾌﾚｰﾑ ｻｲﾄﾞ (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300
|
23300
23300-78222
Filter Assy, Fuel
[03.2012 -] N04C..XZU282 |
23300-78222 |
— | ||
| replacement | |||||
|
23300
|
23300
23300-78225
Filter Assy, Fuel
[03.2012 -] N04C..XZU282 |
23300-78225 |
— | ||
|
23300
|
23300
23300-78232
Filter Assy, Fuel
[03.2012 -] N04C..XZU282 寒冷地対応 |
23300-78232 |
— | ||
| replacement | |||||
|
23300
|
23300
23300-78235
Filter Assy, Fuel
[03.2012 -] N04C..XZU282 寒冷地対応 |
23300-78235 |
— | ||
|
23301
|
23301
23301-78222
Body Sub-Assy, Fuel Filter
[03.2012 -] N04C..XZU282 |
23301-78222 |
— | ||
| replacement | |||||
|
23301
|
23301
23301-78224 Body Sub-Assy, Fuel Filter[03.2012 -] N04C..XZU282 |
23301-78224 |
US $205.30 |
||
|
23301
|
23301
23301-78232
Body Sub-Assy, Fuel Filter
[03.2012 -] N04C..XZU282 寒冷地対応 |
23301-78232 |
— | ||
| replacement | |||||
|
23301
|
23301
23301-78234 Body Sub-Assy, Fuel Filter[03.2012 -] N04C..XZU282 寒冷地対応 |
23301-78234 |
US $260.62 |
||
|
23382
|
23382
23382-78222
Case, Fuel Filter
[03.2012 -] N04C..XZU282 |
23382-78222 |
— | ||
| replacement | |||||
|
23382
|
23382
23382-78223 Case, Fuel Filter[03.2012 -] N04C..XZU282 |
23382-78223 |
US $74.93 |
||
|
23386
|
23386
23386-78220 Gasket, Fuel Filter Case[03.2012 -] N04C..XZU282 |
23386-78220 |
from US $5.99 |
||
|
23388
|
23388
23388-78222 Plug, Fuel Filter DrainFUEL FILTER DRAIN [03.2012 -] N04C..XZU282 |
23388-78222 |
US $13.08 |
||
|
23390
|
23390
23304-78222
Element Assy, Fuel Filter
[09.2012 -] N04C..XZU282 |
23304-78222 |
— | ||
| replacement | |||||
|
23390
|
23390
23304-78225 Element Assy, Fuel Filter[09.2012 -] N04C..XZU282 |
23304-78225 |
US $59.47 |
||
|
23390
|
23390
23390-78221
Element Sub-Assy, Fuel Filter
[03.2012 - 09.2012] N04C..XZU282 |
23390-78221 |
— | ||
| replacement | |||||
|
23390
|
23390
23304-78225 Element Assy, Fuel Filter[03.2012 - 09.2012] N04C..XZU282 |
23304-78225 |
US $59.47 |
||
|
23921
|
23921
23921-78210 Support, Fuel Filter[03.2012 -] N04C..XZU282 |
23921-78210 |
US $26.21 |
||
|
91641K0822
|
91641K0822
91641-K0822 BOLT WWASHER |
91641-K0822 |
US $1.43 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.89 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
