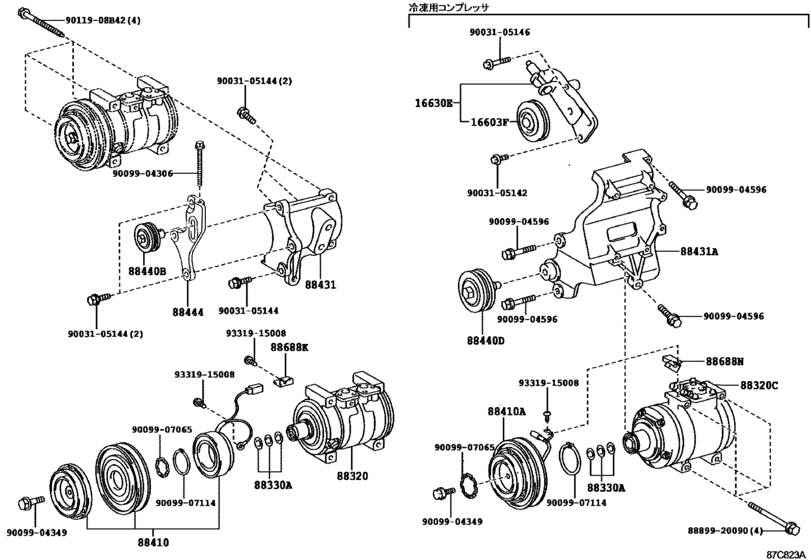

Heating & Air Conditioning - Compressor ([03.2012 - ] ﾔﾏﾄｳﾝﾕｼﾖｳ (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16603F
|
16603F
16603-78021 Pulley Sub-Assy, IdlerIDLER [03.2012 -] N04C..XZU282 ヤマト運輸仕様 |
16603-78021 |
from US $108.09 |
||
|
16630E
|
16630E
16630-78201 Pulley Assy, IdlerIDLER [03.2012 -] N04C..XZU282 ヤマト運輸仕様 |
16630-78201 |
US $602.16 |
||
|
88320
|
88320
88320-37110 Compressor Assy, Cooler[03.2012 -] XZU282 |
88320-37110 |
US $1,163.64 |
||
|
88320C
|
88320C
88320-37130
Compressor Assy, No. 2
[03.2012 -] XZU282 ヤマト運輸仕様 |
88320-37130 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[03.2012 -] XZU282 |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-17100 Clutch Assy, Magnet[03.2012 -] XZU282 |
88410-17100 |
from US $342.99 |
||
|
88410A
|
88410A
88410-25110 Clutch Assy, Magnet, No. 2[03.2012 -] XZU282 ヤマト運輸仕様 |
88410-25110 |
US $500.86 |
||
|
88431
|
88431
88431-37130 Bracket, Compressor Mounting, No.1[03.2012 -] XZU282 |
88431-37130 |
US $160.16 |
||
|
88431A
|
88431A
88431-37160
Bracket, Compressor Mounting, No.2
[03.2012 -] XZU282 ヤマト運輸仕様 |
88431-37160 |
— | ||
|
88440B
|
88440B
88440-37120 Pulley Assy, Idle[03.2012 -] XZU282 |
88440-37120 |
US $83.64 |
||
|
88440D
|
88440D
88440-37130 Pulley Assy, Idle No.2[03.2012 -] XZU282 ヤマト運輸仕様 |
88440-37130 |
US $73.92 |
||
|
88444
|
88444
88444-37160 Bracket, Idle Pulley[03.2012 -] XZU282 |
88444-37160 |
US $42.51 |
||
|
88688K
|
88688K
88688-3V580
Bracket, Cooler Compressor
[03.2012 -] XZU282 |
88688-3V580 |
— | ||
|
88688N
|
88688N
88688-2D770
Bracket, Cooler Compressor
[03.2012 -] XZU282 ヤマト運輸仕様 |
88688-2D770 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.12 |
||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9003105142
|
9003105142
90031-05142 Bolt(For Crankshaft Pulley Set) |
90031-05142 |
US $2.62 |
||
|
9003105144
|
9003105144
90031-05144 Bolt(For Cylinder Head Set) |
90031-05144 |
US $3.58 |
||
|
9003105146
|
9003105146
90031-05146 BOLT FLANGE |
90031-05146 |
US $3.94 |
||
|
9009904306
|
9009904306
90099-04306 Bolt, Idle Pulley |
90099-04306 |
US $1.92 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904596
|
9009904596
90099-04596
New Genuine Part
|
90099-04596 |
— | ||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.10 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
