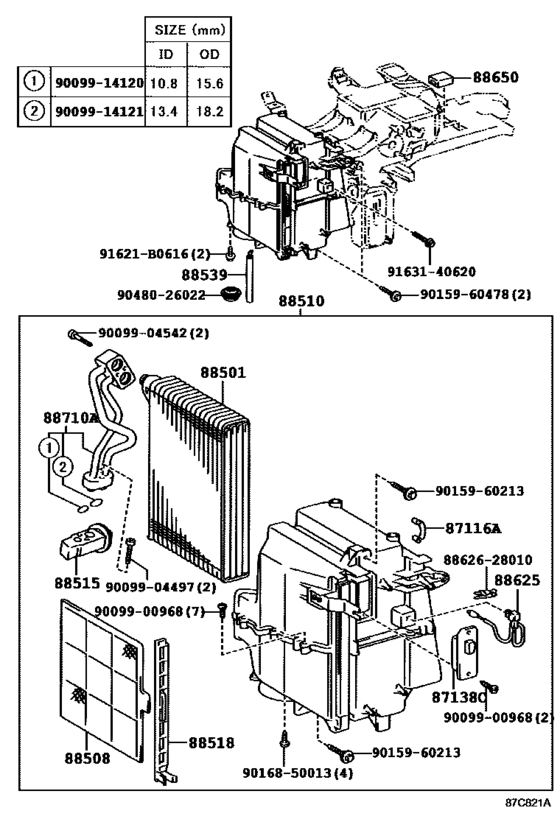

Heating & Air Conditioning - Cooler Unit ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[03.2012 -] XZU282 |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-37090 Resistor, Heater Blower[03.2012 -] XZU282 |
87138-37090 |
from US $22.36 |
||
|
88501
|
88501
88501-37080
Evaporator Sub-Assy, Cooler, No.1
[03.2012 -] XZU282 |
88501-37080 |
— | ||
|
88508
|
88508
88508-37030
Filter Sub-Assy, Clean Air
[03.2012 -] XZU282 |
88508-37030 |
— | ||
|
88510
|
88510
88510-37170
Unit Assy, Cooler
[03.2012 -] XZU282 |
88510-37170 |
— | ||
|
88515
|
88515
88515-48040 Valve, Cooler Expansion[03.2012 -] XZU282 |
88515-48040 |
US $163.20 |
||
|
88518
|
88518
88518-37020
Holder, Cooling Unit Door
[03.2012 -] XZU282 |
88518-37020 |
— | ||
|
88539
|
88539
88539-37050
Hose, Cooler Unit Drain, No.1
[03.2012 -] XZU282 |
88539-37050 |
— | ||
|
88625
|
88625
88625-3A090 Thermistor, Cooler, No.1[03.2012 -] XZU282 |
88625-3A090 |
from US $13.45 |
||
|
88650
|
88650
88650-37280
Amplifier Assy, Cooler Stabilizer
[03.2012 -] XZU282 |
88650-37280 |
— | ||
|
88710A
|
88710A
88710-37270 Tube Assy, Air Conditioner[03.2012 -] XZU282 |
88710-37270 |
US $133.95 |
||
|
91621B0616
|
91621B0616
91621-B0616 Bolt |
91621-B0616 |
from US $0.76 |
||
|
8862628010
|
8862628010
88626-28010
Holder, Thermistor
|
88626-28010 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.80 |
||
|
9009904497
|
9009904497
90099-04497 BOLT |
90099-04497 |
US $5.02 |
||
|
9009904542
|
9009904542
90099-04542 Bolt(For Cooler Expansion Valve) |
90099-04542 |
from US $1.12 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.03 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.52 |
||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9015960478
|
9015960478
90159-60478 SCREW WWASHER |
90159-60478 |
from US $0.67 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $3.05 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9163140620
|
9163140620
91631-40620 New Genuine Part |
91631-40620 |
US $2.87 |
