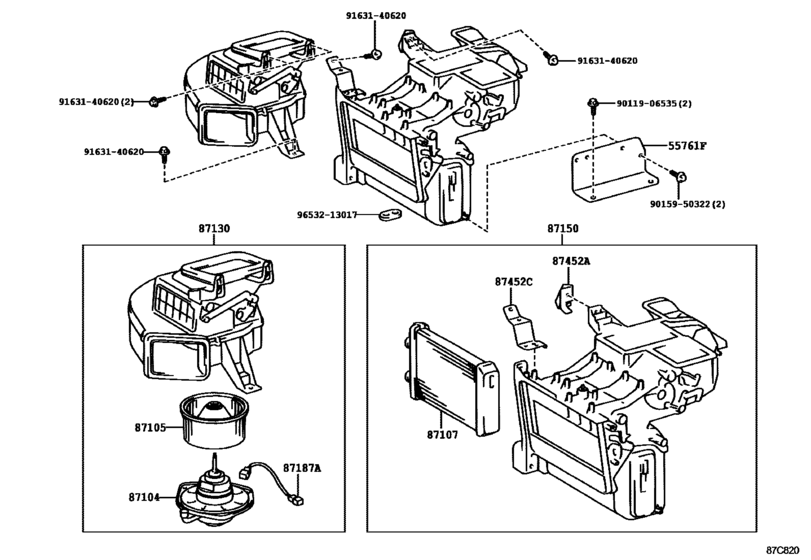

Heating & Air Conditioning - Heater Unit & Blower ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55761F
|
55761F
55761-37060 Bracket, Heater Stay[03.2012 -] XZU282 |
55761-37060 |
US $26.21 |
||
|
87104
|
87104
87104-37140 Motor Sub-Assy, Heater Blower[03.2012 -] XZU282 |
87104-37140 |
US $413.40 |
||
|
87105
|
87105
87105-37030
Fan Sub-Assy, Heater Blower
[03.2012 -] XZU282 |
87105-37030 |
— | ||
|
87107
|
87107
87107-26010 Unit Sub-Assy, Heater Radiator[03.2012 -] XZU282 |
87107-26010 |
US $276.06 |
||
|
87130
|
87130
87130-37130
Blower Assy, Heater, Front
[03.2012 -] XZU282 |
87130-37130 |
— | ||
|
87150
|
87150
87150-37270
Radiator Assy, Heater
[03.2012 - 12.2012] XZU282 |
87150-37270 |
— | ||
|
87187A
|
87187A
87187-37010
Wire, Blower Motor Lead
[03.2012 - 12.2012] XZU282 |
87187-37010 |
— | ||
|
87452A
|
87452A
87452-37010
Bracket, Heater, Front
[03.2012 -] XZU282 |
87452-37010 |
— | ||
|
87452C
|
87452C
87452-37020
Bracket, Front Heater, No.2
[03.2012 -] XZU282 |
87452-37020 |
— | ||
|
9011906535
|
9011906535
90119-06535 New Genuine Part |
90119-06535 |
US $1.60 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.68 |
||
|
9163140620
|
9163140620
91631-40620 New Genuine Part |
91631-40620 |
US $2.87 |
||
|
9653213017
|
9653213017
96532-13017 Grommet, Heater Hose |
96532-13017 |
from US $1.75 |
