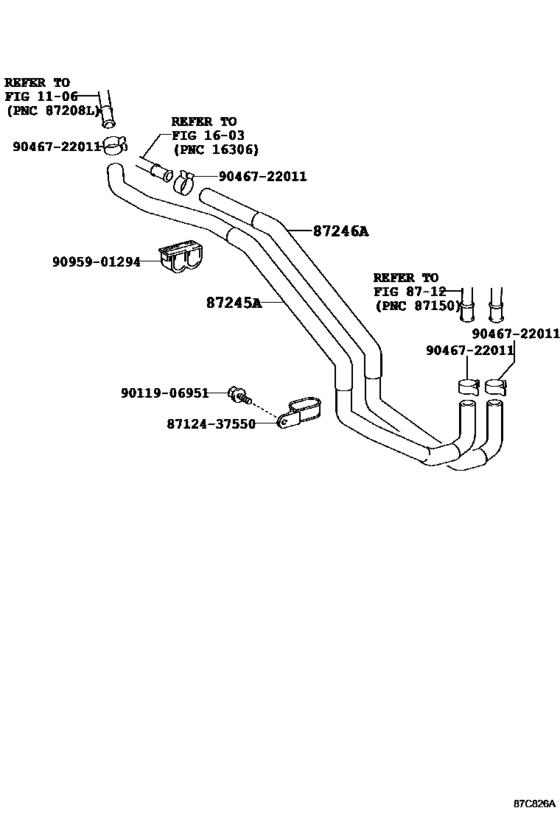

Heating & Air Conditioning - Water Piping ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87245-37D20 Hose, Heater Water, Inlet A[03.2012 -] XZU282 |
87245-37D20 |
US $37.86 |
||
|
87246A
|
87246A
87245-37D30 Hose, Heater Water, Outlet A[03.2012 -] XZU282 |
87245-37D30 |
US $36.55 |
||
|
8712437550
|
8712437550
87124-37550
Clamp, Heater
|
87124-37550 |
— | ||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.43 |
||
|
9046722011
|
9046722011
90467-22011 Clip(For Water By-Pass Hose No.1) |
90467-22011 |
from US $3.23 |
||
|
9095901294
|
9095901294
90959-01294
New Genuine Part
|
90959-01294 |
— |
