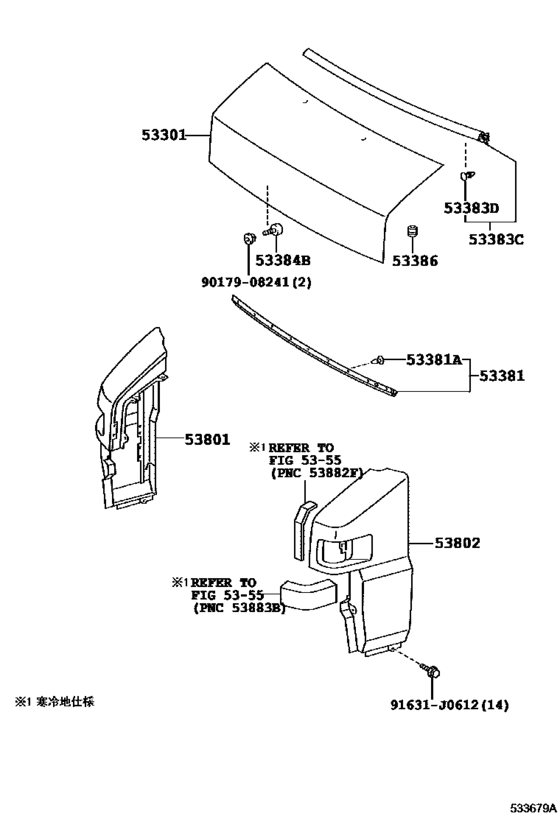

Hood & Front Fender ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-37010 Hood Sub-Assy[03.2012 - 12.2012] XZU282 |
53301-37010 |
US $738.19 |
||
|
53381
|
53381
53381-37010 Seal, Hood To Radiator Support[03.2012 -] XZU282 |
53381-37010 |
US $22.13 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[03.2012 -] XZU282 |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[03.2012 -] XZU282 |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [03.2012 -] XZU282 |
90467-08011-83 |
US $0.51 |
||
|
53383C
|
53383C
53383-37010 Seal, Hood To Cowl Top[03.2012 -] XZU282 |
53383-37010 |
US $14.71 |
||
|
53383D
|
53383D
90467-08030 Clip(For Hood To Cowl Top Seal)[03.2012 -] XZU282 |
90467-08030 |
US $3.05 |
||
|
53384B
|
53384B
53384-37010 Cushion, Hood, Center[03.2012 -] XZU282 |
53384-37010 |
US $6.12 |
||
|
53386
|
53386
53382-60020 Bumper, Hood, Rear[03.2012 -] XZU282 |
53382-60020 |
from US $6.73 |
||
|
53801
|
53801
53801-37032 Fender Sub-Assy, Front RhFRONT RH [03.2012 -] XZU282 |
53801-37032 |
US $283.46 |
||
|
53802
|
53802
53802-37032 Fender Sub-Assy, Front LhFRONT LH [03.2012 -] XZU282 |
53802-37032 |
US $248.98 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.89 |
||
