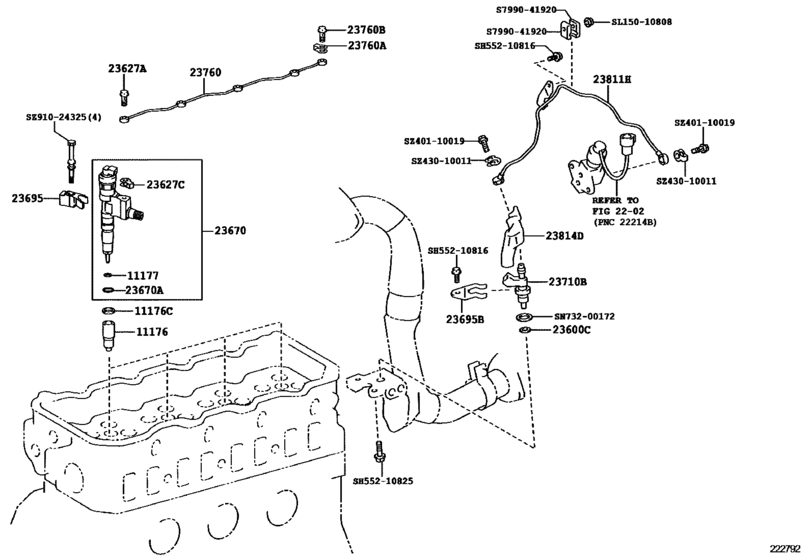

Injection Nozzle ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11176
|
11176
S1117-61200 Seat, Injection Nozzle[03.2012 -] N04C..XZU282 |
S1117-61200 |
US $100.04 |
||
|
11176C
|
11176C
SZ910-15133 Gasket, No.2(For Injection Nozzle Seat)[03.2012 -] N04C..XZU282 |
SZ910-15133 |
US $4.12 |
||
|
11177
|
11177
23682-E0050 Gasket, Injection Nozzle Seat[03.2012 -] N04C..XZU282 |
23682-E0050 |
from US $1.43 |
||
|
23600C
|
23600C
S2366-11340 Gasket(For Holder & Nozzle Set)[03.2012 -] N04C..XZU282 |
S2366-11340 |
US $1.25 |
||
|
23627A
|
23627A
21811-E0050 Screw, Follow(For Nozzle)[10.2012 -] N04C..XZU282 |
21811-E0050 |
from US $3.74 |
||
|
23627A
|
23627A
S2283-51570 Screw, Follow(For Nozzle)[03.2012 - 10.2012] N04C..XZU282 |
S2283-51570 |
US $8.96 |
||
| replacement | |||||
|
23627A
|
23627A
21811-E0050 Screw, Follow(For Nozzle)[03.2012 - 10.2012] N04C..XZU282 |
21811-E0050 |
from US $3.74 |
||
|
23627C
|
23627C
SZ209-08024 Washer(For Nozzle)[03.2012 -] N04C..XZU282 |
SZ209-08024 |
from US $3.69 |
||
|
23670
|
23670
23670-E9260
Injector Assy
[03.2012 -] N04C..XZU282 |
23670-E9260 |
— | ||
| replacement | |||||
|
23670
|
23670
23670-E9264 INJECTOR ASSY[03.2012 -] N04C..XZU282 |
23670-E9264 |
US $733.20 |
||
|
23670A
|
23670A
SZ301-19001 Ring, O(For Injector Assy)[03.2012 -] N04C..XZU282 |
SZ301-19001 |
US $4.12 |
||
|
23695
|
23695
S1119-51140 Clamp, Nozzle Holder, No.1[03.2012 -] N04C..XZU282 |
S1119-51140 |
from US $19.66 |
||
|
23695B
|
23695B
23695-E0080 Clamp, Nozzle Holder, No.2[03.2012 -] N04C..XZU282 |
23695-E0080 |
US $1.08 |
||
|
23710B
|
23710B
23710-E0020 Injector Assy, Exhaust Fuel Addition[03.2012 -] N04C..XZU282 |
23710-E0020 |
US $147.60 |
||
|
23760
|
23760
S2308-12630 Pipe Assy, Nozzle Leakage[03.2012 -] N04C..XZU282 |
S2308-12630 |
from US $32.76 |
||
|
23760A
|
23760A
SZ209-08024 Washer(For Nozzle)[03.2012 -] N04C..XZU282 |
SZ209-08024 |
from US $3.69 |
||
|
23760B
|
23760B
21811-E0060 Bolt, Union(For Nozzle Lekage Pipe No.3)[10.2012 - 12.2012] N04C..XZU282 |
21811-E0060 |
US $15.05 |
||
|
23760B
|
23760B
SZ401-08003 Bolt, Union(For Nozzle Lekage Pipe No.3)[03.2012 - 10.2012] N04C..XZU282 |
SZ401-08003 |
US $7.28 |
||
| replacement | |||||
|
23760B
|
23760B
21811-E0060 Bolt, Union(For Nozzle Lekage Pipe No.3)[03.2012 - 10.2012] N04C..XZU282 |
21811-E0060 |
US $15.05 |
||
|
23811H
|
23811H
23801-E0311 Pipe, Fuel, No.1[03.2012 -] N04C..XZU282 |
23801-E0311 |
US $126.67 |
||
|
23814D
|
23814D
23814-E0620
Pipe, Fuel Delivery
[03.2012 -] N04C..XZU282 |
23814-E0620 |
— | ||
| replacement | |||||
|
23814D
|
23814D
23814-E0621 Pipe, Fuel Delivery[03.2012 -] N04C..XZU282 |
23814-E0621 |
US $36.12 |
||
|
S799041920
|
S799041920
S7990-41920 New Genuine Part |
S7990-41920 |
US $7.57 |
||
|
SH55210816
|
SH55210816
SH552-10816 Bolt(For Cylinder Head Cover) |
SH552-10816 |
US $6.27 |
||
|
SH55210825
|
SH55210825
SH552-10825 NR BOLTFLANGE 300 500S |
SH552-10825 |
US $6.81 |
||
|
SL15010808
|
SL15010808
SL150-10808 NUT |
SL150-10808 |
US $4.12 |
||
|
SN73200172
|
SN73200172
SN732-00172 Ring, O(For Water Pump) |
SN732-00172 |
US $2.51 |
||
|
SZ40110019
|
SZ40110019
SZ401-10019 Bolt, Union |
SZ401-10019 |
US $12.54 |
||
|
SZ43010011
|
SZ43010011
SZ430-10011 Gasket |
SZ430-10011 |
US $4.12 |
||
|
SZ91024325
|
SZ91024325
SZ910-24325 NR BOLT |
SZ910-24325 |
US $7.17 |
||
