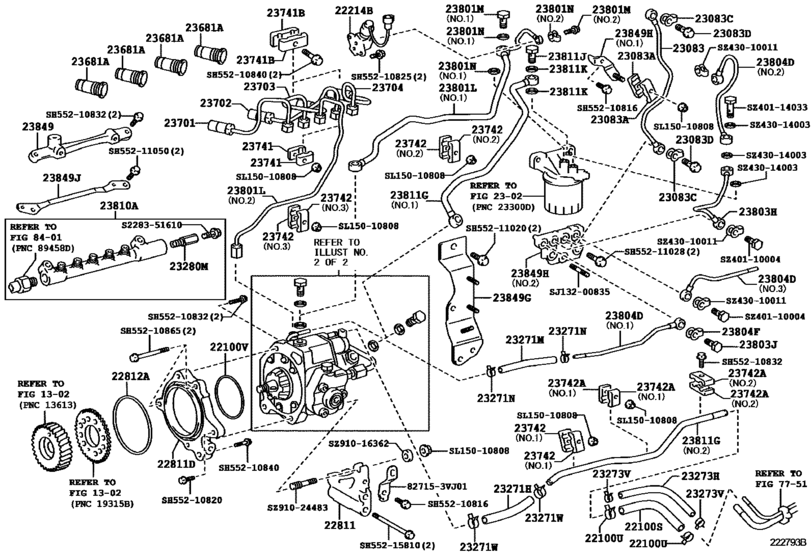

Injection Pump Assembly ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100S
|
22100S
95337-12028 Hose, Fuel(For Injection Pump To Fuel Pipe)[03.2012 - 12.2012] N04C..XZU282 |
95337-12028 |
US $11.21 |
||
|
22100U
|
22100U
90467-18008 Clip(For Water By-Pass Hose No.2)[03.2012 - 12.2012] N04C..XZU282 |
90467-18008 |
from US $1.08 |
||
|
22100V
|
22100V
SN732-10493 Ring, O(For Injection Pump)[03.2012 -] N04C..XZU282 |
SN732-10493 |
US $7.88 |
||
|
22214B
|
22214B
S2210-E0022 Valve Assy, Fuel Addition Cut[03.2012 -] N04C..XZU282 |
S2210-E0022 |
US $218.40 |
||
| replacement | |||||
|
22214B
|
22214B
S2210-E0110 Valve Assy, Fuel Addition Cut[03.2012 -] N04C..XZU282 |
S2210-E0110 |
US $390 |
||
|
22811
|
22811
22811-78141 Stay, Injection Pump, No.1[03.2012 -] N04C..XZU282 |
22811-78141 |
US $75.71 |
||
|
22811D
|
22811D
S2251-22060 Stay, Injection Pump, No.2[03.2012 -] N04C..XZU282 |
S2251-22060 |
US $27.22 |
||
|
22812A
|
22812A
SN732-10793 Ring, O[03.2012 -] N04C..XZU282 |
SN732-10793 |
from US $4.81 |
||
|
23083
|
23083
23816-E0330 Pipe Sub-Assy, Nozzle Leakage, No.3[03.2012 -] N04C..XZU282 |
23816-E0330 |
US $42.22 |
||
| replacement | |||||
|
23083
|
23083
23816-E0331 Pipe Sub-Assy, Nozzle Leakage, No.3[03.2012 -] N04C..XZU282 |
23816-E0331 |
US $42.22 |
||
|
23083A
|
23083A
S7990-43390 Clamp, Nozzle Leakage[03.2012 -] N04C..XZU282 |
S7990-43390 |
US $9.90 |
||
|
23083C
|
23083C
SZ430-08013 Gasket(Nozzle Lekage Pipe No.3)[03.2012 -] N04C..XZU282 |
SZ430-08013 |
US $5.91 |
||
|
23083D
|
23083D
21811-E0040 Bolt, Union(For Nozzle Lekage Pipe No.3)[10.2012 - 12.2012] N04C..XZU282 |
21811-E0040 |
US $7.28 |
||
| replacement | |||||
|
23083D
|
23083D
21811-E0060 Bolt, Union(For Nozzle Lekage Pipe No.3)[10.2012 - 12.2012] N04C..XZU282 |
21811-E0060 |
US $15.05 |
||
|
23083D
|
23083D
SZ401-08003 Bolt, Union(For Nozzle Lekage Pipe No.3)[03.2012 - 10.2012] N04C..XZU282 |
SZ401-08003 |
US $7.28 |
||
| replacement | |||||
|
23083D
|
23083D
21811-E0060 Bolt, Union(For Nozzle Lekage Pipe No.3)[03.2012 - 10.2012] N04C..XZU282 |
21811-E0060 |
US $15.05 |
||
|
23271H
|
23271H
23271-E0540 Hose, Fuel, No.1[03.2012 -] N04C..XZU282 |
23271-E0540 |
US $11.29 |
||
|
23271M
|
23271M
95337-06012 Hose, Fuel[03.2012 -] N04C..XZU282 |
95337-06012 |
US $4.66 |
||
|
23271N
|
23271N
21576-E0170 Clip, Hose[03.2012 -] N04C..XZU282 |
21576-E0170 |
US $1.43 |
||
|
23271W
|
23271W
SZ466-18001 Clip(For Fuel Hose No.1)[03.2012 -] N04C..XZU282 |
SZ466-18001 |
US $2.51 |
||
|
23273H
|
23273H
95337-08034 Hose, Fuel, No.2[03.2012 - 12.2012] N04C..XZU282 |
95337-08034 |
US $10.21 |
||
|
23273V
|
23273V
96135-51300 Clamp, Hose[03.2012 - 12.2012] N04C..XZU282 |
96135-51300 |
from US $1.86 |
||
|
23280M
|
23280M
23280-E0020 Limitter Assy, Fuel Pressure[03.2012 -] N04C..XZU282 |
23280-E0020 |
US $291.20 |
||
|
23681A
|
23681A
S2307-41070
Seal, Nozzle Holder
[03.2012 -] N04C..XZU282 |
S2307-41070 |
— | ||
| replacement | |||||
|
23681A
|
23681A
23681-78030 SEAL NOZZLE HOLDER[03.2012 -] N04C..XZU282 |
23681-78030 |
from US $9.68 |
||
|
23701
|
23701
23701-78160 Pipe Sub-Assy, Injection, No.1[03.2012 -] N04C..XZU282 |
23701-78160 |
from US $50.50 |
||
|
23702
|
23702
23702-78160 Pipe Sub-Assy, Injection, No.2[03.2012 -] N04C..XZU282 |
23702-78160 |
US $136.12 |
||
|
23703
|
23703
23703-78150 Pipe Sub-Assy, Injection, No.3[03.2012 -] N04C..XZU282 |
23703-78150 |
US $120.85 |
||
| replacement | |||||
|
23703
|
23703
23703-78151 Pipe Sub-Assy, Injection, No.3[03.2012 -] N04C..XZU282 |
23703-78151 |
US $136.12 |
||
|
23704
|
23704
23704-78150 Pipe Sub-Assy, Injection, No.4[03.2012 -] N04C..XZU282 |
23704-78150 |
US $120.85 |
||
| replacement | |||||
|
23704
|
23704
23704-78151 Pipe Sub-Assy, Injection, No.4[03.2012 -] N04C..XZU282 |
23704-78151 |
US $136.12 |
||
|
23741
|
23741
S7990-41240 Clamp, Injection Pipe, No.1[03.2012 -] N04C..XZU282 |
S7990-41240 |
US $6.26 |
||
|
23741B
|
23741B
S2304-E0010 Clamp, Injection Pipe[03.2012 -] N04C..XZU282 |
S2304-E0010 |
US $11.83 |
||
|
23742
|
23742
S2304-E0020 Clamp, Injection Pipe, No.2[03.2012 -] N04C..XZU282 ＮＯ．１ |
S2304-E0020 |
US $8.01 |
||
|
23742
|
23742
S7990-42150 Clamp, Injection Pipe, No.2[03.2012 -] N04C..XZU282 ＮＯ．２ |
S7990-42150 |
US $8.59 |
||
|
23742
|
23742
S7990-43390 Clamp, Nozzle Leakage[03.2012 -] N04C..XZU282 ＮＯ．３ |
S7990-43390 |
US $9.90 |
||
|
23742A
|
23742A
S7990-42180 Clamp, Injection Pipe, No.3[03.2012 -] N04C..XZU282 ＮＯ．１ |
S7990-42180 |
US $7.57 |
||
|
23742A
|
23742A
S7990-44090 Clamp, Injection Pipe, No.3[03.2012 -] N04C..XZU282 ＮＯ．２ |
S7990-44090 |
US $8.59 |
||
|
23801L
|
23801L
23801-78162 Pipe Sub-Assy, Fuel(For Fuel Filter To Injection Pump)[03.2012 -] N04C..XZU282 ＮＯ．１ |
23801-78162 |
US $93.18 |
||
| replacement | |||||
|
23801L
|
23801L
23801-78164 Pipe Sub-Assy, Fuel(For Fuel Filter To Injection Pump)[03.2012 -] N04C..XZU282 ＮＯ．１ |
23801-78164 |
US $104.96 |
||
|
23801L
|
23801L
23801-78180 Pipe Sub-Assy, Fuel(For Fuel Filter To Injection Pump)[03.2012 -] N04C..XZU282 ＮＯ．２ |
23801-78180 |
from US $34.44 |
||
|
23801M
|
23801M
SZ401-10019 Bolt, Union[03.2012 -] N04C..XZU282 ＮＯ．２ |
SZ401-10019 |
US $12.54 |
||
|
23801M
|
23801M
SZ401-14004 Bolt, Union(For Turbo Oil Inlet Pipe)[03.2012 -] N04C..XZU282 ＮＯ．１ |
SZ401-14004 |
US $17.56 |
||
|
23801N
|
23801N
SZ430-10011 Gasket[03.2012 -] N04C..XZU282 ＮＯ．２ |
SZ430-10011 |
US $4.12 |
||
|
23801N
|
23801N
SZ430-14003 Gasket, No.2(For Turbo Water Pipe)[03.2012 -] N04C..XZU282 ＮＯ．１ |
SZ430-14003 |
US $2.15 |
||
|
23803H
|
23803H
23816-E0341 Pipe Sub-Assy, Fuel Return[03.2012 -] N04C..XZU282 |
23816-E0341 |
US $40.77 |
||
| replacement | |||||
|
23803H
|
23803H
23816-E0342 Pipe Sub-Assy, Fuel Return[03.2012 -] N04C..XZU282 |
23816-E0342 |
US $40.77 |
||
|
23803J
|
23803J
SZ401-10004 Bolt, Union(For Fuel Return Pipe)[03.2012 -] N04C..XZU282 |
SZ401-10004 |
US $3.06 |
||
|
23804D
|
23804D
23816-78150 Pipe Sub-Assy, Fuel, No.4[03.2012 -] N04C..XZU282 ＮＯ．２ |
23816-78150 |
US $40.77 |
||
| replacement | |||||
|
23804D
|
23804D
23816-78151 Pipe Sub-Assy, Fuel, No.4[03.2012 -] N04C..XZU282 ＮＯ．２ |
23816-78151 |
US $40.77 |
||
|
23804D
|
23804D
23816-E0351 Pipe Sub-Assy, Fuel, No.4[03.2012 -] N04C..XZU282 ＮＯ．１ |
23816-E0351 |
US $22.57 |
||
| replacement | |||||
|
23804D
|
23804D
23816-E0352 Pipe Sub-Assy, Fuel, No.4[03.2012 -] N04C..XZU282 ＮＯ．１ |
23816-E0352 |
US $36.40 |
||
|
23804D
|
23804D
23816-E0360 Pipe Sub-Assy, Fuel, No.4[03.2012 -] N04C..XZU282 ＮＯ．３ |
23816-E0360 |
US $22.13 |
||
| replacement | |||||
|
23804D
|
23804D
23816-E0361 Pipe Sub-Assy, Fuel, No.4[03.2012 -] N04C..XZU282 ＮＯ．３ |
23816-E0361 |
US $22.13 |
||
|
23804F
|
23804F
SZ430-10011 Gasket[03.2012 -] N04C..XZU282 |
SZ430-10011 |
US $4.12 |
||
|
23810A
|
23810A
23810-E0240 Rail Assy, Common[03.2012 -] N04C..XZU282 |
23810-E0240 |
from US $769.39 |
||
|
23811G
|
23811G
23811-E0851
Pipe, Fuel(For Fuel Filter To Injection Pump)
[03.2012 -] N04C..XZU282 ＮＯ．１ |
23811-E0851 |
— | ||
| replacement | |||||
|
23811G
|
23811G
23811-E0853 Pipe, Fuel(For Fuel Filter To Injection Pump)[03.2012 -] N04C..XZU282 ＮＯ．１ |
23811-E0853 |
US $84 |
||
|
23811G
|
23811G
23811-E0860 Pipe, Fuel, No.1[03.2012 -] N04C..XZU282 ＮＯ．２ |
23811-E0860 |
US $23.59 |
||
| replacement | |||||
|
23811G
|
23811G
23811-E0861 Pipe, Fuel, No.1[03.2012 -] N04C..XZU282 ＮＯ．２ |
23811-E0861 |
US $23.59 |
||
|
23811J
|
23811J
SZ401-14004 Bolt, Union(For Turbo Oil Inlet Pipe)[03.2012 -] N04C..XZU282 |
SZ401-14004 |
US $17.56 |
||
|
23811K
|
23811K
SZ430-14003 Gasket, No.2(For Turbo Water Pipe)[03.2012 -] N04C..XZU282 |
SZ430-14003 |
US $2.15 |
||
|
23849
|
23849
23849-E0600 Support, Fuel[03.2012 -] N04C..XZU282 |
23849-E0600 |
US $39.31 |
||
|
23849G
|
23849G
23809-E0400 Support, Fuel Pipe[03.2012 -] N04C..XZU282 |
23809-E0400 |
US $46.59 |
||
|
23849H
|
23849H
23809-78100 Support, Fuel Pipe[03.2012 -] N04C..XZU282 ＮＯ．２ |
23809-78100 |
US $56.78 |
||
|
23849H
|
23849H
23849-78210 Support, Fuel Pipe[03.2012 -] N04C..XZU282 ＮＯ．１ |
23849-78210 |
US $7.13 |
||
|
23849J
|
23849J
23849-78220 Support, Fuel Pipe(For Rail Assy, Common)[03.2012 -] N04C..XZU282 |
23849-78220 |
US $10.92 |
||
|
827153VJ01
|
827153VJ01
82715-3VJ01 Bracket,wiring Harness Clamp |
82715-3VJ01 |
US $3.35 |
||
|
S228351610
|
S228351610
S2283-51610 S228351610 |
S2283-51610 |
US $2.18 |
||
|
SH55210816
|
SH55210816
SH552-10816 Bolt(For Cylinder Head Cover) |
SH552-10816 |
US $6.27 |
||
|
SH55210820
|
SH55210820
SH552-10820 Bolt, Flange |
SH552-10820 |
US $6.63 |
||
|
SH55210825
|
SH55210825
SH552-10825 NR BOLTFLANGE 300 500S |
SH552-10825 |
US $6.81 |
||
|
SH55210832
|
SH55210832
SH552-10832 New Genuine Part |
SH552-10832 |
US $6.63 |
||
|
SH55210840
|
SH55210840
SH552-10840 New Genuine Part |
SH552-10840 |
US $2.91 |
||
|
SH55210865
|
SH55210865
SH552-10865 Bolt(For Cylinder Head Cover) |
SH552-10865 |
US $17.30 |
||
|
SH55211020
|
SH55211020
SH552-11020 New Genuine Part |
SH552-11020 |
US $7.71 |
||
|
SH55211028
|
SH55211028
SH552-11028 BOLTFLANGE |
SH552-11028 |
US $7.71 |
||
|
SH55211050
|
SH55211050
SH552-11050 BOLTFLANGE |
SH552-11050 |
US $4.48 |
||
|
SH55215810
|
SH55215810
SH552-15810 New Genuine Part |
SH552-15810 |
US $12.08 |
||
|
SJ13200835
|
SJ13200835
SJ132-00835 New Genuine Part |
SJ132-00835 |
US $2.91 |
||
|
SL15010808
|
SL15010808
SL150-10808 NUT |
SL150-10808 |
US $4.12 |
||
|
SZ40110004
|
SZ40110004
SZ401-10004 Bolt, Union(For Fuel Return Pipe) |
SZ401-10004 |
US $3.06 |
||
|
SZ40114033
|
SZ40114033
SZ401-14033 Bolt, Union(For Fuel Pipe No.4) |
SZ401-14033 |
US $9.03 |
||
|
SZ43010011
|
SZ43010011
SZ430-10011 Gasket |
SZ430-10011 |
US $4.12 |
||
|
SZ43014003
|
SZ43014003
SZ430-14003 Gasket, No.2(For Turbo Water Pipe) |
SZ430-14003 |
US $2.15 |
||
|
SZ91016362
|
SZ91016362
SZ910-16362 New Genuine Part |
SZ910-16362 |
US $2.62 |
||
|
SZ91024483
|
SZ91024483
SZ910-24483 BOLT |
SZ910-24483 |
US $11.65 |
||
