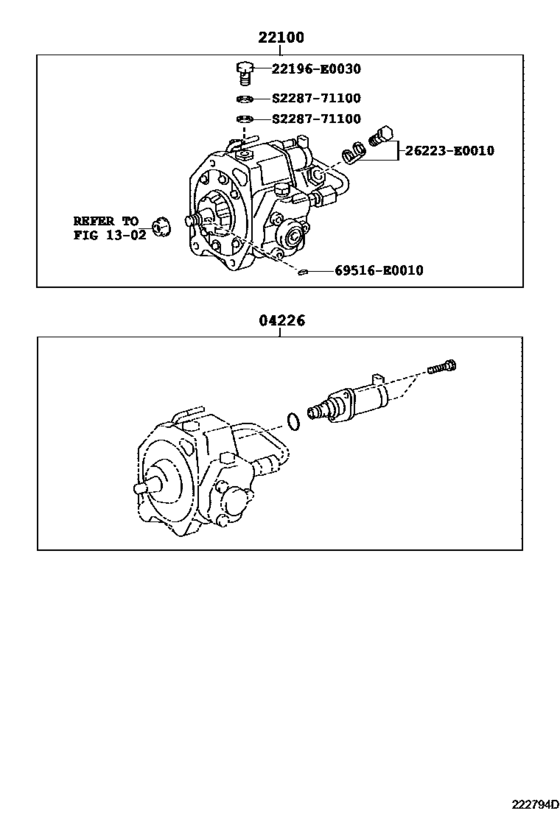

Injection Pump Assembly ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04226
|
04226
04226-E0110 Valve Kit, Suction Control[03.2012 -] N04C..XZU282 |
04226-E0110 |
US $176 |
||
|
22100
|
22100
22100-E0540
Pump Assy, Injection Or Supply
[03.2012 -] N04C..XZU282 |
22100-E0540 |
— | ||
| replacements | |||||
|
22100
|
22100
22100-E0541 Pump Assy, Injection Or Supply[03.2012 -] N04C..XZU282 |
22100-E0541 |
US $1,732.80 |
||
|
22100
|
22100
26223-E0010 Screw, Set(For Power Valve Cam)[03.2012 -] N04C..XZU282 |
26223-E0010 |
US $17.38 |
||
|
22196E0030
|
22196E0030
22196-E0030 Screw, Fuel Inlet Follow |
22196-E0030 |
US $26.21 |
||
|
26223E0010
|
26223E0010
26223-E0010 Screw, Set(For Power Valve Cam) |
26223-E0010 |
US $17.38 |
||
|
69516E0010
|
69516E0010
69516-E0010 New Genuine Part |
69516-E0010 |
US $4.08 |
||
|
S228771100
|
S228771100
S2287-71100 Washer(For Inlet Follow Screw) |
S2287-71100 |
from US $1.16 |
||
| replacement | |||||
|
S228771100
|
S228771100
90099-01502 Washer(For Inlet Follow Screw) |
90099-01502 |
US $1.79 |
||
