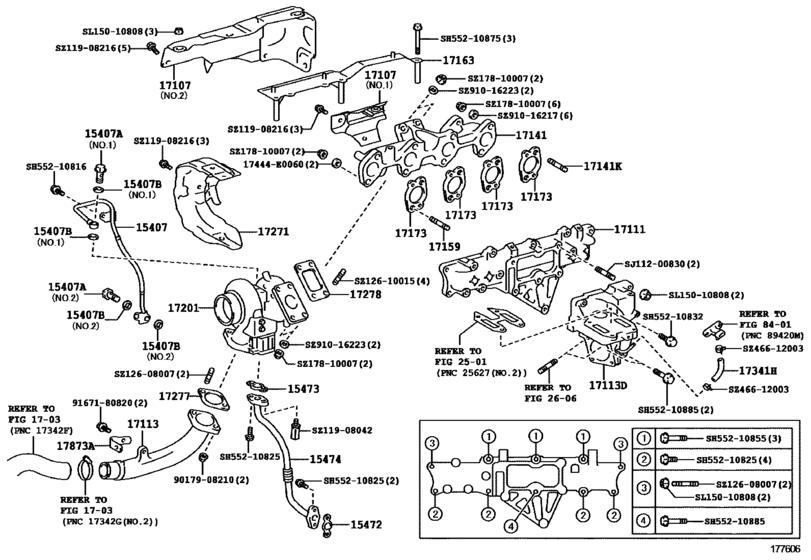

Manifold ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-E0260 Pipe Sub-Assy, Turbo Oil Inlet[03.2012 -] N04C..XZU282 |
15407-E0260 |
US $75.71 |
||
| replacement | |||||
|
15407
|
15407
15407-E0262 Pipe Sub-Assy, Turbo Oil Inlet[03.2012 -] N04C..XZU282 |
15407-E0262 |
US $75.71 |
||
|
15407A
|
15407A
SZ401-12001 Bolt, Union(For Turbo Oil Inlet Pipe)[03.2012 -] N04C..XZU282 ＮＯ．１ |
SZ401-12001 |
US $6.81 |
||
|
15407A
|
15407A
SZ401-14004 Bolt, Union(For Turbo Oil Inlet Pipe)[03.2012 -] N04C..XZU282 ＮＯ．２ |
SZ401-14004 |
US $17.56 |
||
|
15407B
|
15407B
SL722-01210 Gasket(For Turbo Oil Inlet Pipe)[03.2012 -] N04C..XZU282 ＮＯ．１ |
SL722-01210 |
US $1.61 |
||
|
15407B
|
15407B
SL722-01415 Gasket(For Turbo Oil Inlet Pipe)[03.2012 -] N04C..XZU282 ＮＯ．２ |
SL722-01415 |
US $3.23 |
||
|
15472
|
15472
S2413-51161 Gasket, Turbo Oil Outlet, No.1[03.2012 -] N04C..XZU282 |
S2413-51161 |
from US $4.43 |
||
|
15473
|
15473
S2413-51181 Gasket, Turbo Oil Outlet, No.2[03.2012 -] N04C..XZU282 |
S2413-51181 |
US $2.91 |
||
| replacement | |||||
|
15473
|
15473
15472-E0050 Gasket, Turbo Oil Outlet, No.2[03.2012 -] N04C..XZU282 |
15472-E0050 |
from US $2.93 |
||
|
15474
|
15474
15407-E0280 Pipe, Turbo Oil Outlet[03.2012 -] N04C..XZU282 |
15407-E0280 |
US $131.20 |
||
|
17107
|
17107
17107-E0012 Insulator Sub-Assy, Exhaust Manifold Heat[03.2012 -] N04C..XZU282 ＮＯ．１ |
17107-E0012 |
US $28.22 |
||
|
17107
|
17107
17160-E0061 Insulator Sub-Assy, Exhaust Manifold Heat[03.2012 -] N04C..XZU282 ＮＯ．２ |
17160-E0061 |
US $123.76 |
||
|
17111
|
17111
17111-E0351 Manifold, Intake[03.2012 -] N04C..XZU282 |
17111-E0351 |
US $400.40 |
||
| replacement | |||||
|
17111
|
17111
17111-E0352 Manifold, Intake[03.2012 -] N04C..XZU282 |
17111-E0352 |
US $385.84 |
||
|
17113
|
17113
17113-78530 Pipe, Intake[03.2012 -] N04C..XZU282 |
17113-78530 |
US $170.35 |
||
|
17113D
|
17113D
17103-E0G20 Pipe, Intake, No.1[03.2012 -] N04C..XZU282 |
17103-E0G20 |
US $393.12 |
||
| replacement | |||||
|
17113D
|
17113D
17103-78221 Pipe, Intake, No.1[03.2012 -] N04C..XZU282 |
17103-78221 |
US $393.12 |
||
|
17141
|
17141
17141-E0360 Manifold, Exhaust[03.2012 -] N04C..XZU282 |
17141-E0360 |
US $364 |
||
|
17141K
|
17141K
SZ126-10012 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[03.2012 -] N04C..XZU282 |
SZ126-10012 |
US $10.93 |
||
|
17159
|
17159
SZ126-10006 Bolt, Stud(For Manifold To Cylinder Head)[03.2012 -] N04C..XZU282 |
SZ126-10006 |
US $7.17 |
||
|
17163
|
17163
17586-E0110 Bracket, Heat Insulator, No.1[03.2012 -] N04C..XZU282 |
17586-E0110 |
US $57.08 |
||
|
17173
|
17173
S1710-41880 Gasket, Exhaust Manifold To Head[03.2012 -] N04C..XZU282 |
S1710-41880 |
US $10.34 |
||
| replacement | |||||
|
17173
|
17173
17173-78080 Gasket, Exhaust Manifold To Head[03.2012 -] N04C..XZU282 |
17173-78080 |
from US $5.95 |
||
|
17201
|
17201
17201-E0740 Turbocharger Sub-Assy[03.2012 - 05.2012] N04C..XZU282 |
17201-E0740 |
US $4,732 |
||
| replacement | |||||
|
17201
|
17201
17201-E0745 Turbocharger Sub-Assy[03.2012 - 05.2012] N04C..XZU282 |
17201-E0745 |
US $4,732 |
||
|
17201
|
17201
17201-E0741 Turbocharger Sub-Assy[05.2012 -] N04C..XZU282 |
17201-E0741 |
US $4,732 |
||
| replacement | |||||
|
17201
|
17201
17201-E0745 Turbocharger Sub-Assy[05.2012 -] N04C..XZU282 |
17201-E0745 |
US $4,732 |
||
|
17271
|
17271
17271-E0300 Insulator, Turbo, No.1[03.2012 -] N04C..XZU282 |
17271-E0300 |
US $42.95 |
||
|
17277
|
17277
17277-78030 Gasket, Compressor Outlet[03.2012 -] N04C..XZU282 |
17277-78030 |
US $5.02 |
||
|
17278
|
17278
S2410-91860 Gasket, Turbo To Exhaust Manifold[03.2012 -] N04C..XZU282 |
S2410-91860 |
from US $11.65 |
||
|
17341H
|
17341H
SZ920-33B09 Hose, Air[03.2012 -] N04C..XZU282 |
SZ920-33B09 |
US $9.86 |
||
|
17873A
|
17873A
17872-78060 Bracket, Intake Air Connector, No.2[03.2012 -] N04C..XZU282 |
17872-78060 |
US $6.64 |
||
|
17444E0060
|
17444E0060
17444-E0060 Spacer, Exhaust Pipe, No.4 |
17444-E0060 |
from US $3.91 |
||
|
9017908210
|
9017908210
90179-08210 NUT |
90179-08210 |
US $1.97 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
SH55210816
|
SH55210816
SH552-10816 Bolt(For Cylinder Head Cover) |
SH552-10816 |
US $6.27 |
||
|
SH55210825
|
SH55210825
SH552-10825 NR BOLTFLANGE 300 500S |
SH552-10825 |
US $6.81 |
||
|
SH55210832
|
SH55210832
SH552-10832 New Genuine Part |
SH552-10832 |
US $6.63 |
||
|
SH55210855
|
SH55210855
SH552-10855 New Genuine Part |
SH552-10855 |
US $3.35 |
||
|
SH55210875
|
SH55210875
SH552-10875 New Genuine Part |
SH552-10875 |
US $8.01 |
||
|
SH55210885
|
SH55210885
SH552-10885 New Genuine Part |
SH552-10885 |
US $4.54 |
||
|
SJ11200830
|
SJ11200830
SJ112-00830 SJ11200830 |
SJ112-00830 |
US $6.27 |
||
|
SL15010808
|
SL15010808
SL150-10808 NUT |
SL150-10808 |
US $4.12 |
||
|
SZ11908042
|
SZ11908042
SZ119-08042 New Genuine Part |
SZ119-08042 |
US $13.80 |
||
|
SZ11908216
|
SZ11908216
SZ119-08216 New Genuine Part |
SZ119-08216 |
US $1.97 |
||
|
SZ12608007
|
SZ12608007
SZ126-08007 Bolt, Stud(For Intake Manifold To Cylinder Head) |
SZ126-08007 |
US $2.51 |
||
|
SZ12610015
|
SZ12610015
SZ126-10015 Bolt, Stud(For Manifold To Exhaust Pipe) |
SZ126-10015 |
US $9.86 |
||
|
SZ17810007
|
SZ17810007
SZ178-10007 NUT |
SZ178-10007 |
US $6.63 |
||
|
SZ46612003
|
SZ46612003
SZ466-12003 Clamp, Hose |
SZ466-12003 |
US $4.66 |
||
|
SZ91016217
|
SZ91016217
SZ910-16217 SPACER |
SZ910-16217 |
US $7.71 |
||
|
SZ91016223
|
SZ91016223
SZ910-16223 SPACER |
SZ910-16223 |
US $8.06 |
||
