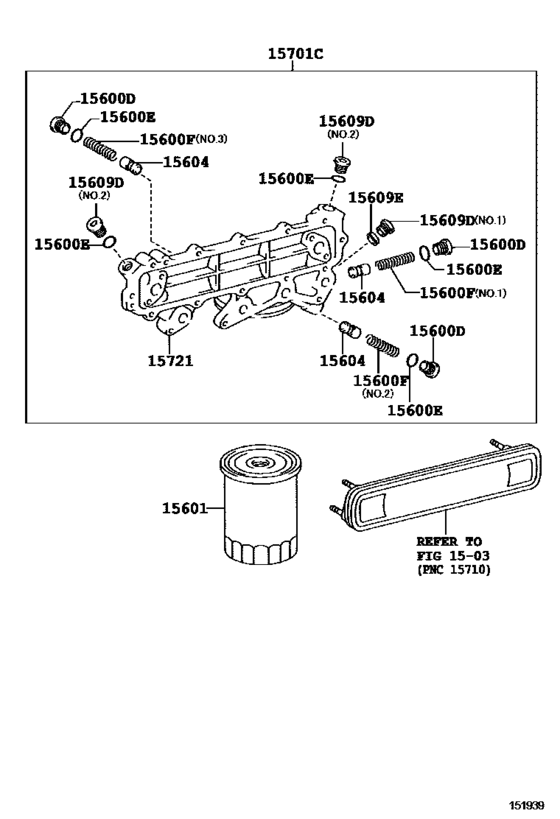

Oil Filter ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600D
|
15600D
S1571-61110 Plug(For Oil Filter)[03.2012 -] N04C..XZU282 |
S1571-61110 |
US $7.43 |
||
|
15600E
|
15600E
SZ301-18015 Washer(For Oil Filter)[03.2012 -] N04C..XZU282 |
SZ301-18015 |
US $2.33 |
||
|
15600F
|
15600F
S1566-11250 Spring, Compression(For Oil Filter)[03.2012 -] N04C..XZU282 ＮＯ．３ |
S1566-11250 |
US $4.37 |
||
|
15600F
|
15600F
S1566-11370 Spring, Compression(For Oil Filter)[03.2012 -] N04C..XZU282 ＮＯ．１ |
S1566-11370 |
US $4.37 |
||
|
15600F
|
15600F
S1566-11560 Spring, Compression(For Oil Filter)[03.2012 -] N04C..XZU282 ＮＯ．２ |
S1566-11560 |
US $5.82 |
||
|
15601
|
15601
15613-E0080 Filter Sub-Assy, Oil[03.2012 -] N04C..XZU282 |
15613-E0080 |
from US $45.70 |
||
|
15604
|
15604
S1571-41120 Valve Sub-Assy, Oil Safety[03.2012 -] N04C..XZU282 |
S1571-41120 |
US $13.69 |
||
|
15609D
|
15609D
S1571-61070 Plug, W/head Straight Screw(For Oil Filter Bracket)[03.2012 -] N04C..XZU282 ＮＯ．１ |
S1571-61070 |
US $9.03 |
||
|
15609D
|
15609D
S1572-61110 Plug, W/head Straight Screw(For Oil Filter Bracket)[03.2012 -] N04C..XZU282 ＮＯ．２ |
S1572-61110 |
US $5.82 |
||
|
15609E
|
15609E
S9007-56166 Gasket, W/head Straight Screw Plug[03.2012 -] N04C..XZU282 |
S9007-56166 |
US $5.91 |
||
|
15701C
|
15701C
S1572-01581 Cover Sub-Assy, Oil Cooler[03.2012 -] N04C..XZU282 |
S1572-01581 |
US $444.08 |
||
| replacement | |||||
|
15701C
|
15701C
S1572-01651 Cover Sub-Assy, Oil Cooler[03.2012 -] N04C..XZU282 |
S1572-01651 |
from US $441.45 |
||
|
15721
|
15721
S1570-12401 Cover, Oil Cooler[03.2012 -] N04C..XZU282 |
S1570-12401 |
US $378.56 |
||
| replacement | |||||
|
15721
|
15721
S1570-12521 Cover, Oil Cooler[03.2012 -] N04C..XZU282 |
S1570-12521 |
from US $311.73 |
||
