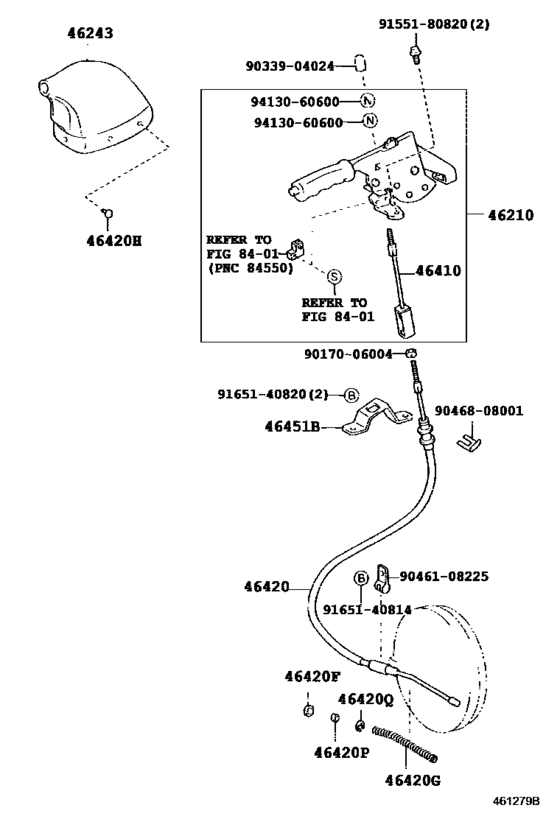

Parking Brake & Cable ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46210
|
46210
46210-37080-B0 Lever Assy, Parking Brake[03.2012 - 12.2012] XZU282 BLUISH GRAY,TRIM1# |
46210-37080-B0 |
US $183.46 |
||
|
46243
|
46243
46243-37010 Cover, Parking Brake Lever[03.2012 -] XZU282 |
46243-37010 |
US $51.98 |
||
|
46410
|
46410
46410-37050 Cable Assy, Parking Brake, No.1[03.2012 -] XZU282 |
46410-37050 |
US $26.21 |
||
|
46420
|
46420
46420-37720 Cable Assy, Parking Brake, No.2[03.2012 - 12.2012] XZU282 |
46420-37720 |
US $41.99 |
||
|
46420F
|
46420F
90303-10001 Seal, Dust(For Parking Brake Cable)[03.2012 -] XZU282 |
90303-10001 |
US $2.15 |
||
|
46420G
|
46420G
90501-14003 Spring(For Parking Cable Inner Wire Set)[03.2012 -] XZU282 |
90501-14003 |
US $3.05 |
||
|
46420H
|
46420H
90467-06020-B0 Clip, No.2(For Parking Brake)[03.2012 - 12.2012] XZU282 BLUISH GRAY,TRIM1# |
90467-06020-B0 |
US $1.31 |
||
|
46420P
|
46420P
90560-08002 Spacer(For Parking Brake Handle)[03.2012 -] XZU282 |
90560-08002 |
US $3.23 |
||
|
46420Q
|
46420Q
96160-00700 Ring, E(For Chain Tensioner Slipper)[03.2012 -] XZU282 |
96160-00700 |
US $3.58 |
||
|
46451B
|
46451B
46451-37050 Bracket, Parking Brake Cable Support[03.2012 -] XZU282 |
46451-37050 |
US $9.17 |
||
|
9017006004
|
9017006004
90170-06004 Nut, Wire Adjusting, No.1 |
90170-06004 |
US $2.33 |
||
|
9033904024
|
9033904024
90339-04024 Cap, Transfer, Rear Case |
90339-04024 |
US $1.79 |
||
|
9046108225
|
9046108225
90461-08225 Clamp, No.3(For Parking Brake Cable) |
90461-08225 |
US $2.51 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.76 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.76 |
||
