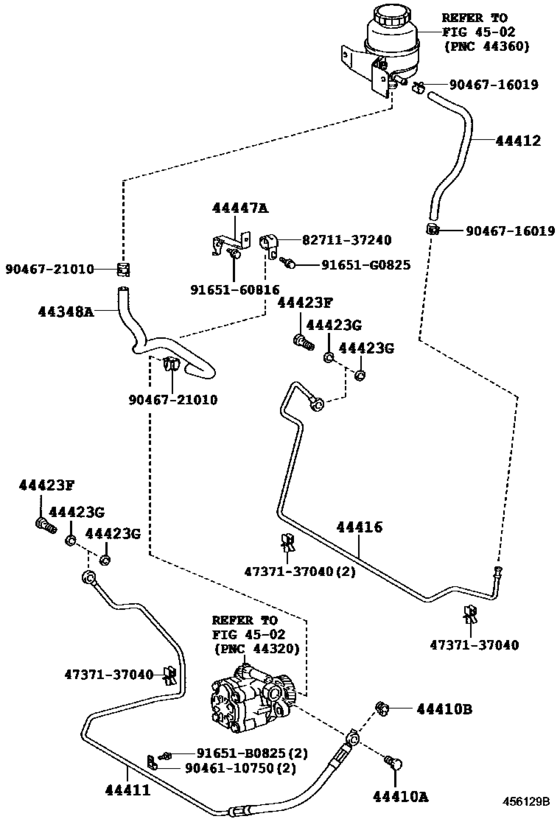

Power Steering Tube ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-37450 Hose, Oil Reservoir To Pump, No.1[03.2012 - 12.2012] XZU282 |
44348-37450 |
US $66.36 |
||
|
44410A
|
44410A
96341-41603 Bolt, Union(For Rear Stabilizer Contorol Tube)[03.2012 -] XZU282 |
96341-41603 |
US $5.56 |
||
|
44410B
|
44410B
44327-30030 Gasket(For Pressure Hose)[03.2012 -] XZU282 |
44327-30030 |
from US $1.90 |
||
|
44411
|
44411
44411-37640 Hose, Pressure Feed[03.2012 -] XZU282 |
44411-37640 |
US $244.61 |
||
|
44412
|
44412
44412-37280 Hose, Return[03.2012 - 12.2012] XZU282 |
44412-37280 |
US $37.46 |
||
|
44416
|
44416
44416-37831 Tube, Return(For Steering Gear Outlet)[03.2012 -] XZU282 |
44416-37831 |
US $57.37 |
||
|
44423F
|
44423F
90401-14003 Bolt, Union(For Oil Cooler)[03.2012 -] XZU282 |
90401-14003 |
US $6.63 |
||
|
44423G
|
44423G
90430-14235 Gasket, W/head Taper Screw Plug[03.2012 -] XZU282 |
90430-14235 |
US $4.12 |
||
|
44447A
|
44447A
44447-37280 Bracket, Hose Support, No.1[03.2012 -] XZU282 |
44447-37280 |
US $7.72 |
||
|
91651B0825
|
91651B0825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
91651G0825
|
91651G0825
91651-G0825 New Genuine Part |
91651-G0825 |
US $1.16 |
||
|
4737137040
|
4737137040
47371-37040 Clamp(For Clutch Tube) |
47371-37040 |
US $5.73 |
||
|
8271137240
|
8271137240
82711-37240
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-37240 |
— | ||
|
9046110750
|
9046110750
90461-10750 Clamp, No.2(For Parking Brake Cable) |
90461-10750 |
US $3.23 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.43 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
