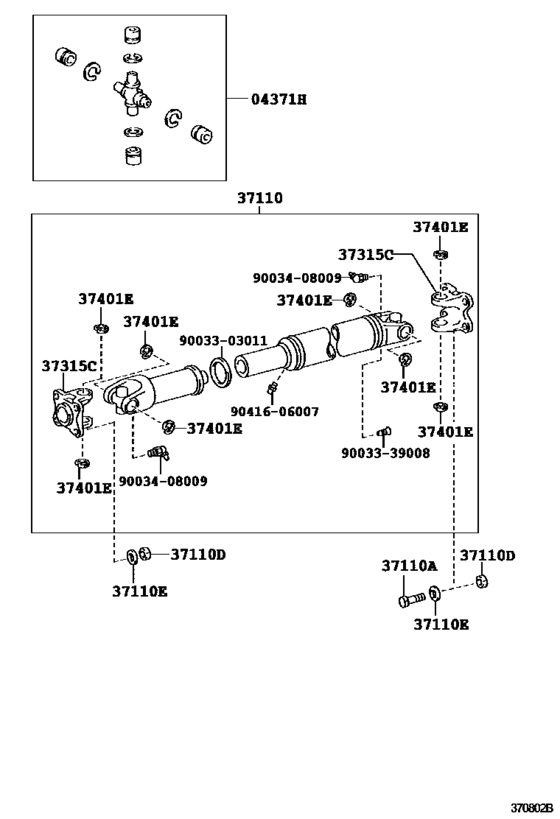

Propeller Shaft & Universal Joint ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371H
|
04371H
04371-37080
Spider Kit, Rear Propeller Shaft Universal Joint
[03.2012 - 12.2012] XZU282 |
04371-37080 |
— | ||
| replacement | |||||
|
04371H
|
04371H
04371-37110
Spider Kit, Rear Propeller Shaft Universal Joint
[03.2012 - 12.2012] XZU282 |
04371-37110 |
— | ||
|
37110
|
37110
37110-37G41
Shaft Assy, Propeller
[03.2012 -] XZU282 |
37110-37G41 |
— | ||
|
37110A
|
37110A
90031-01165 Bolt (For Propeller Shaft)[03.2012 -] XZU282 ＊１２−１．２５ＰＸ３５−１７ |
90031-01165 |
US $2.87 |
||
|
37110D
|
37110D
90170-12005 Nut (For Propeller Shaft)[03.2012 -] XZU282 |
90170-12005 |
from US $0.82 |
||
|
37110E
|
37110E
94512-01200 Washer[03.2012 -] XZU282 |
94512-01200 |
from US $0.70 |
||
|
37315C
|
37315C
37315-37070 Yoke, Universal Joint Flange[03.2012 -] XZU282 |
37315-37070 |
US $69.16 |
||
|
37401E
|
37401E
90035-21038 Ring, Snap (For Rear Propeller Shaft Joint Spider Bearing)[03.2012 -] XZU282 厚さ＝１．６８ |
90035-21038 |
US $1.16 |
||
|
37401E
|
37401E
90035-21039 Ring, Snap (For Rear Propeller Shaft Joint Spider Bearing)[03.2012 -] XZU282 厚さ＝１．６５ |
90035-21039 |
US $1.16 |
||
|
37401E
|
37401E
90035-21040 Ring, Snap (For Rear Propeller Shaft Joint Spider Bearing)[03.2012 -] XZU282 厚さ＝１．６２ |
90035-21040 |
US $1.16 |
||
|
37401E
|
37401E
90035-21041 Ring, Snap (For Rear Propeller Shaft Joint Spider Bearing)[03.2012 -] XZU282 厚さ＝１．５９ |
90035-21041 |
US $1.16 |
||
|
37401E
|
37401E
90035-21042 Ring, Snap (For Rear Propeller Shaft Joint Spider Bearing)[03.2012 -] XZU282 厚さ＝１．５６ |
90035-21042 |
US $1.16 |
||
|
37401E
|
37401E
90035-21043 Ring, Snap (For Rear Propeller Shaft Joint Spider Bearing)[03.2012 -] XZU282 厚さ＝１．５３ |
90035-21043 |
US $1.16 |
||
|
37401E
|
37401E
90035-21044 Ring, Snap (For Rear Propeller Shaft Joint Spider Bearing)[03.2012 -] XZU282 厚さ＝１．５０ |
90035-21044 |
US $1.16 |
||
|
9003303011
|
9003303011
90033-03011 New Genuine Part |
90033-03011 |
US $8.59 |
||
|
9003339008
|
9003339008
90033-39008 New Genuine Part |
90033-39008 |
US $1.16 |
||
|
9003408009
|
9003408009
90034-08009 New Genuine Part |
90034-08009 |
US $3.49 |
||
|
9041606007
|
9041606007
90416-06007 New Genuine Part |
90416-06007 |
US $7.34 |
||
