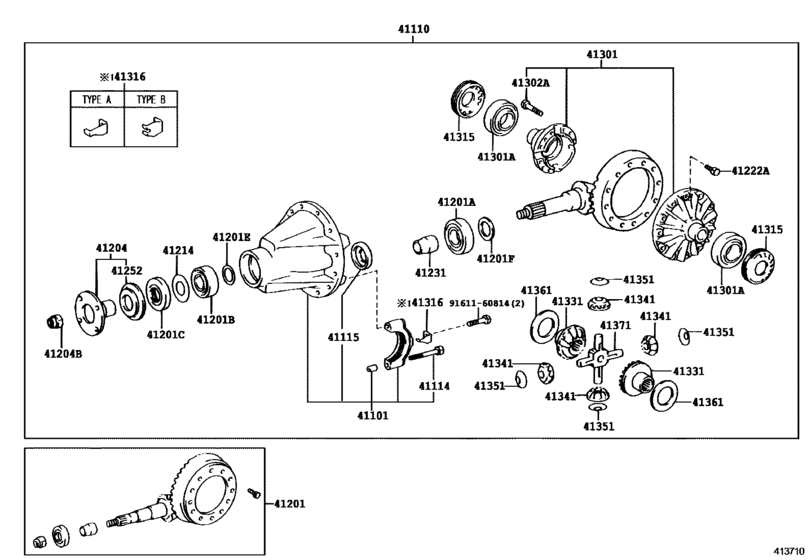

Rear Axle Housing & Differential ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-37070 Carrier Sub-Assy, Differential, Rear[03.2012 -] XZU282 |
41101-37070 |
US $800.80 |
||
|
41110
|
41110
41110-37640 Carrier Assy, Differential, Rear[03.2012 - 12.2012] XZU282 ＊ＦＧＲ＝３９：１０＝３．９００ |
41110-37640 |
US $2,052.96 |
||
|
41114
|
41114
90105-16022 Bolt, Rear Differential Bearing Cap[03.2012 -] XZU282 |
90105-16022 |
US $5.53 |
||
|
41115
|
41115
41115-37010 Ring, Differential Oil Storage[03.2012 - 12.2012] XZU282 |
41115-37010 |
US $2.62 |
||
|
41201
|
41201
41201-80754 Final Gear Kit, Differential, Rear[03.2012 -] XZU282 ＊ＦＧＲ＝３９：１０＝３．９００ |
41201-80754 |
US $1,009.01 |
||
|
41201A
|
41201A
90366-40100 Bearing (For Rear Drive Pinion Rear)[03.2012 -] XZU282 |
90366-40100 |
from US $72.68 |
||
|
41201B
|
41201B
90366-35108 Bearing (For Rear Drive Pinion Front)[03.2012 -] XZU282 |
90366-35108 |
from US $31.10 |
||
|
41201C
|
41201C
90311-48024 Seal, Oil (For Front Differential Carrier)[03.2012 -] XZU282 |
90311-48024 |
from US $13.80 |
||
|
41201E
|
41201E
90564-35019 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８０ |
90564-35019 |
US $2.91 |
||
|
41201E
|
41201E
90564-35020 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８２ |
90564-35020 |
US $2.91 |
||
|
41201E
|
41201E
90564-35021 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８４ |
90564-35021 |
US $2.91 |
||
|
41201E
|
41201E
90564-35022 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８６ |
90564-35022 |
from US $2.91 |
||
|
41201E
|
41201E
90564-35023 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８８ |
90564-35023 |
US $2.91 |
||
|
41201E
|
41201E
90564-35024 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．９０ |
90564-35024 |
US $2.91 |
||
|
41201E
|
41201E
90564-35025 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．００ |
90564-35025 |
US $2.91 |
||
|
41201E
|
41201E
90564-35026 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．１０ |
90564-35026 |
US $2.91 |
||
|
41201E
|
41201E
90564-35027 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．２０ |
90564-35027 |
US $2.91 |
||
|
41201E
|
41201E
90564-35028 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．３０ |
90564-35028 |
US $3.06 |
||
|
41201E
|
41201E
90564-35029 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．４０ |
90564-35029 |
US $3.06 |
||
|
41201E
|
41201E
90564-35030 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．５０ |
90564-35030 |
US $3.06 |
||
|
41201E
|
41201E
90564-35031 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．６０ |
90564-35031 |
US $3.20 |
||
|
41201E
|
41201E
90564-35032 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．７０ |
90564-35032 |
US $3.20 |
||
|
41201E
|
41201E
90564-35033 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．８０ |
90564-35033 |
US $3.20 |
||
|
41201E
|
41201E
90564-35034 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝２．９０ |
90564-35034 |
US $3.20 |
||
|
41201E
|
41201E
90564-35035 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝３．００ |
90564-35035 |
US $3.20 |
||
|
41201E
|
41201E
90564-35036 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８１ |
90564-35036 |
US $1.60 |
||
|
41201E
|
41201E
90564-35037 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８３ |
90564-35037 |
US $1.60 |
||
|
41201E
|
41201E
90564-35038 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８５ |
90564-35038 |
US $1.60 |
||
|
41201E
|
41201E
90564-35039 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８７ |
90564-35039 |
US $1.60 |
||
|
41201E
|
41201E
90564-35040 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[03.2012 -] XZU282 厚さ＝１．８９ |
90564-35040 |
US $1.60 |
||
|
41201F
|
41201F
90564-40004 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．０５ |
90564-40004 |
from US $2.74 |
||
|
41201F
|
41201F
90564-40006 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．０７５ |
90564-40006 |
US $2.62 |
||
|
41201F
|
41201F
90564-40007 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．１０ |
90564-40007 |
from US $2.72 |
||
|
41201F
|
41201F
90564-40008 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．１２５ |
90564-40008 |
US $2.62 |
||
|
41201F
|
41201F
90564-40009 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．１５ |
90564-40009 |
US $2.34 |
||
|
41201F
|
41201F
90564-40010 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．１７５ |
90564-40010 |
US $2.62 |
||
|
41201F
|
41201F
90564-40011 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．２０ |
90564-40011 |
from US $3.12 |
||
|
41201F
|
41201F
90564-40012 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．２２５ |
90564-40012 |
US $2.62 |
||
|
41201F
|
41201F
90564-40013 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．２５ |
90564-40013 |
US $2.34 |
||
|
41201F
|
41201F
90564-40014 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．２７５ |
90564-40014 |
US $2.62 |
||
|
41201F
|
41201F
90564-40015 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．３０ |
90564-40015 |
from US $3.40 |
||
|
41201F
|
41201F
90564-40016 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．３２５ |
90564-40016 |
US $3.58 |
||
|
41201F
|
41201F
90564-40017 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．３５ |
90564-40017 |
US $2.34 |
||
|
41201F
|
41201F
90564-40018 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．３７５ |
90564-40018 |
US $3.58 |
||
|
41201F
|
41201F
90564-40019 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．４０ |
90564-40019 |
US $2.34 |
||
|
41201F
|
41201F
90564-40020 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．４２５ |
90564-40020 |
US $2.48 |
||
|
41201F
|
41201F
90564-40021 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．４５ |
90564-40021 |
from US $3.12 |
||
|
41201F
|
41201F
90564-40022 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．４７５ |
90564-40022 |
US $2.62 |
||
|
41201F
|
41201F
90564-40023 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．５０ |
90564-40023 |
from US $3.17 |
||
|
41201F
|
41201F
90564-40024 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．５２５ |
90564-40024 |
US $2.62 |
||
|
41201F
|
41201F
90564-40025 Washer, Plate (For Rear Differential Drive Pinion)[03.2012 -] XZU282 厚さ＝１．５５ |
90564-40025 |
from US $3.12 |
||
|
41204
|
41204
41204-37100 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[03.2012 -] XZU282 |
41204-37100 |
US $77.17 |
||
|
41204B
|
41204B
90179-22029 Nut (For Rear Drive Pinion)[03.2012 -] XZU282 外径＝４３ |
90179-22029 |
from US $2.74 |
||
|
41214
|
41214
41214-37010 Slinger, Rear Differential Drive Pinion Oil[03.2012 -] XZU282 |
41214-37010 |
from US $3.84 |
||
|
41222A
|
41222A
90105-14183 Bolt (For Rear Differential Ring Gear Set)[03.2012 -] XZU282 |
90105-14183 |
US $2.61 |
||
|
41231
|
41231
41231-36040 Spacer, Rear Differential Drive Pinion Bearing[03.2012 -] XZU282 |
41231-36040 |
from US $6.81 |
||
|
41252
|
41252
41252-37020 Deflector, Dust (For Rear Differential)[03.2012 -] XZU282 |
41252-37020 |
US $7.69 |
||
|
41301
|
41301
41301-37060 Case Sub-Assy, Rear Differential[03.2012 -] XZU282 |
41301-37060 |
US $524.16 |
||
|
41301A
|
41301A
90366-52004 Bearing(For Rear Differential Case)[03.2012 -] XZU282 |
90366-52004 |
from US $26.38 |
||
|
41302A
|
41302A
90105-12087 Bolt(For Rear Differential Case)[03.2012 -] XZU282 |
90105-12087 |
US $3.49 |
||
|
41315
|
41315
41315-36011 Nut, Rear Differential Bearing Adjusting[03.2012 -] XZU282 |
41315-36011 |
US $7.86 |
||
|
41316
|
41316
41316-36011 Lock, Rear Differential Bearing Adjusting Nut[03.2012 -] XZU282 ＴＹＰＥ Ａ：イラスト参照 |
41316-36011 |
US $2.18 |
||
|
41316
|
41316
41317-36011 Lock, Rear Differential Bearing Adjusting Nut[03.2012 -] XZU282 ＴＹＰＥ Ｂ：イラスト参照 |
41317-36011 |
US $3.79 |
||
|
41331
|
41331
41331-36020 Gear, Rear Differential Side[03.2012 -] XZU282 |
41331-36020 |
from US $55.74 |
||
|
41341
|
41341
41341-55013 Pinion, Rear Differential[03.2012 -] XZU282 |
41341-55013 |
from US $29.40 |
||
|
41351
|
41351
41351-35011 Washer, Rear Differential Pinion Thrust[03.2012 -] XZU282 |
41351-35011 |
from US $9.32 |
||
|
41361
|
41361
41361-60011 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．６０ |
41361-60011 |
from US $5.64 |
||
|
41361
|
41361
41361-60021 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．７５ |
41361-60021 |
from US $5.59 |
||
|
41361
|
41361
41361-60031 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．９０ |
41361-60031 |
from US $6.65 |
||
|
41361
|
41361
41361-60041 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝２．０５ |
41361-60041 |
from US $8.17 |
||
|
41361
|
41361
41361-60480 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．５５ |
41361-60480 |
US $4.51 |
||
|
41361
|
41361
41361-60490 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．６５ |
41361-60490 |
US $4.95 |
||
|
41361
|
41361
41361-60500 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．７０ |
41361-60500 |
US $5.10 |
||
|
41361
|
41361
41361-60510 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．８０ |
41361-60510 |
US $5.24 |
||
|
41361
|
41361
41361-60520 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．８５ |
41361-60520 |
US $5.53 |
||
|
41361
|
41361
41361-60530 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝１．９５ |
41361-60530 |
US $5.82 |
||
|
41361
|
41361
41361-60540 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝２．００ |
41361-60540 |
US $5.82 |
||
|
41361
|
41361
41361-60550 Washer, Rear Differential Side Gear Thrust, No.1[03.2012 -] XZU282 厚さ＝２．１０ |
41361-60550 |
US $6.84 |
||
|
41371
|
41371
41371-36011 Spider, Rear Differential[03.2012 -] XZU282 |
41371-36011 |
from US $70.90 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
