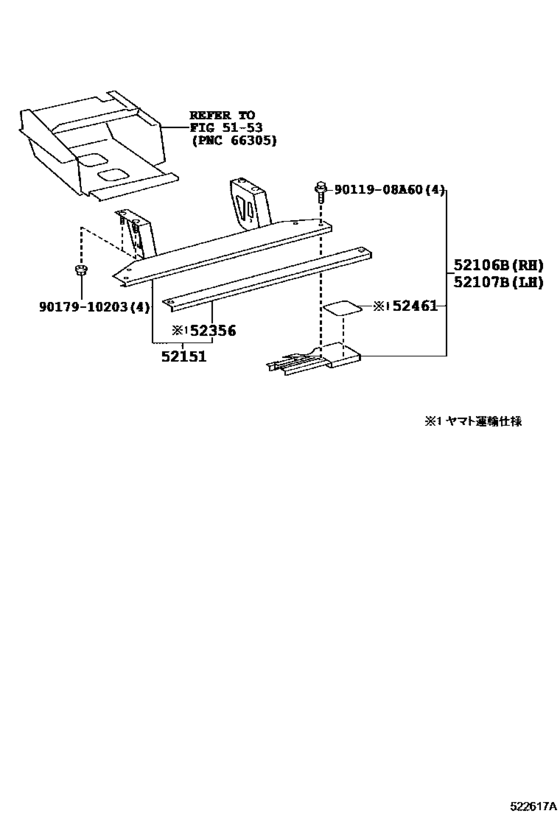

Rear Bumper & Bumper Stay ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52106B
|
52106B
52106-37010 Bumper Sub-Assy, Rear Rh[03.2012 -] XZU282 ヤマト運輸仕様 |
52106-37010 |
US $138.32 |
||
| replacements | |||||
|
52106B
|
52106B
52106-37020 Bumper Sub-Assy, Rear Rh[03.2012 -] XZU282 ヤマト運輸仕様 |
52106-37020 |
US $131.04 |
||
|
52106B
|
52106B
52461-37010 Pad, Rear Bumper, Center[03.2012 -] XZU282 ヤマト運輸仕様 |
52461-37010 |
US $7.98 |
||
|
52106B
|
52106B
52106-37020 Bumper Sub-Assy, Rear Rh[03.2012 -] XZU282 |
52106-37020 |
US $131.04 |
||
|
52107B
|
52107B
52107-37010 Bumper Sub-Assy, Rear Lh[03.2012 -] XZU282 ヤマト運輸仕様 |
52107-37010 |
US $138.32 |
||
| replacements | |||||
|
52107B
|
52107B
52107-37020 Bumper Sub-Assy, Rear Lh[03.2012 -] XZU282 ヤマト運輸仕様 |
52107-37020 |
US $131.04 |
||
|
52107B
|
52107B
52461-37010 Pad, Rear Bumper, Center[03.2012 -] XZU282 ヤマト運輸仕様 |
52461-37010 |
US $7.98 |
||
|
52107B
|
52107B
52107-37020 Bumper Sub-Assy, Rear Lh[03.2012 -] XZU282 |
52107-37020 |
US $131.04 |
||
|
52151
|
52151
52105-37080 Bumper Assy, Rear[03.2012 -] XZU282 ヤマト運輸仕様 |
52105-37080 |
US $511.06 |
||
| replacements | |||||
|
52151
|
52151
52105-37100 Bumper Assy, Rear[03.2012 -] XZU282 ヤマト運輸仕様 |
52105-37100 |
US $511.06 |
||
|
52151
|
52151
52356-37050 Cushion, Rear Bumper Step[03.2012 -] XZU282 ヤマト運輸仕様 |
52356-37050 |
US $32.03 |
||
|
52151
|
52151
52105-37100 Bumper Assy, Rear[03.2012 -] XZU282 |
52105-37100 |
US $511.06 |
||
|
52356
|
52356
52356-37050 Cushion, Rear Bumper Step[03.2012 - 12.2012] XZU282 ヤマト運輸仕様 |
52356-37050 |
US $32.03 |
||
|
52461
|
52461
52461-37010 Pad, Rear Bumper, Center[03.2012 -] XZU282 ヤマト運輸仕様 |
52461-37010 |
US $7.98 |
||
|
9011908A60
|
9011908A60
90119-08A60 New Genuine Part |
90119-08A60 |
US $0.87 |
||
|
9017910203
|
9017910203
90179-10203 NUT |
90179-10203 |
US $1.79 |
||
