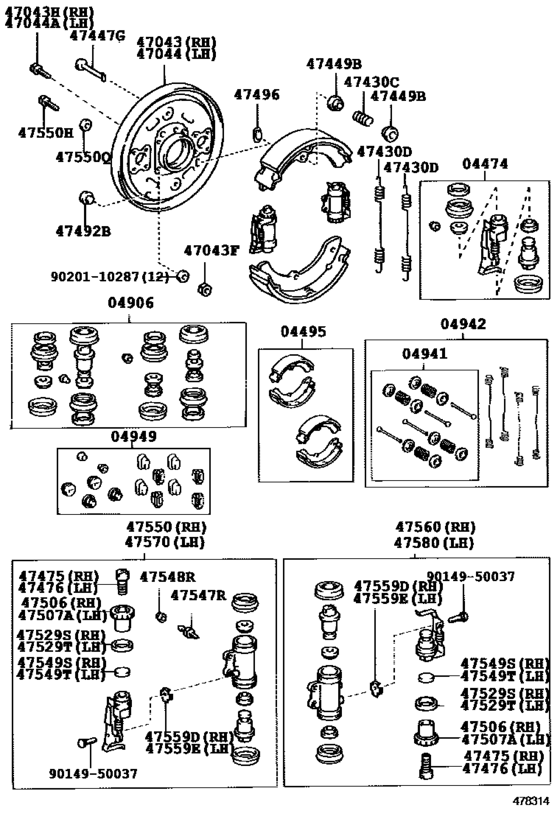

Rear Drum Brake Wheel Cylinder & Backing Plate ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04468-37040 Cylinder Kit, Rear Wheel[03.2012 -] XZU282 左側 |
04468-37040 |
US $44.55 |
||
|
04474
|
04474
04474-37250 Cylinder Kit, Rear Wheel[03.2012 -] XZU282 右側 |
04474-37250 |
US $44.55 |
||
|
04495
|
04495
04494-36280 Shoe Kit, Brake[03.2012 -] XZU282 マーク ＡＫ ＬＡ５１４ |
04494-36280 |
from US $100.02 |
||
|
04906
|
04906
04906-36211 Cup Kit, Rear Wheel Cylinder[03.2012 -] XZU282 |
04906-36211 |
US $18 |
||
|
04941
|
04941
04941-25030 Spring Kit, Rear Brake Shoe Hold Down[03.2012 -] XZU282 |
04941-25030 |
US $26.21 |
||
|
04942
|
04942
04942-25040 Spring Kit, Rear Brake[03.2012 -] XZU282 |
04942-25040 |
US $44.26 |
||
|
04949
|
04949
04949-25040 Plug Kit, Rear Brake[03.2012 -] XZU282 |
04949-25040 |
from US $29.83 |
||
|
47043
|
47043
47043-37050 Plate Sub-Assy, Brake Backing, Rear Rh[03.2012 -] XZU282 |
47043-37050 |
US $77.17 |
||
|
47043F
|
47043F
94130-01002 Nut, Booster Sleeve Cylinder[03.2012 - 12.2012] XZU282 |
94130-01002 |
from US $0.91 |
||
|
47043H
|
47043H
90114-10063 Bolt, No.1(For Rear Brake Backing Plate Rh)[03.2012 - 12.2012] XZU282 |
90114-10063 |
US $1.79 |
||
|
47044
|
47044
47044-37050 Plate Sub-Assy, Brake Backing, Rear Lh[03.2012 -] XZU282 |
47044-37050 |
US $77.17 |
||
|
47044A
|
47044A
90114-10063 Bolt, No.1(For Rear Brake Backing Plate Rh)[03.2012 - 12.2012] XZU282 |
90114-10063 |
US $1.79 |
||
|
47430C
|
47430C
90501-20012 Spring(For Front Brake Shoe Hold Down)[03.2012 -] XZU282 |
90501-20012 |
from US $2.15 |
||
|
47430D
|
47430D
90506-29006 Spring, Tension(For Front Brake Shoe Return)[03.2012 -] XZU282 |
90506-29006 |
from US $7.54 |
||
|
47447G
|
47447G
47447-35020 Pin, Shoe Hold Down Spring[03.2012 -] XZU282 |
47447-35020 |
US $2.33 |
||
|
47449B
|
47449B
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[03.2012 -] XZU282 |
47449-30020 |
from US $1.27 |
||
|
47475
|
47475
47553-36070 Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)[03.2012 -] XZU282 |
47553-36070 |
US $3.03 |
||
|
47476
|
47476
47554-36070 Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[03.2012 -] XZU282 |
47554-36070 |
from US $3.20 |
||
|
47492B
|
47492B
47492-28010 Plug, Shoe Inspection(For Rear Brake)[03.2012 -] XZU282 |
47492-28010 |
from US $1.48 |
||
|
47496
|
47496
47491-36020 Plug, Hole(For Rear Brake)[03.2012 -] XZU282 |
47491-36020 |
US $3.05 |
||
|
47506
|
47506
47506-36020 Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)[03.2012 -] XZU282 |
47506-36020 |
from US $7.28 |
||
|
47507A
|
47507A
47507-36020 Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)[03.2012 -] XZU282 |
47507-36020 |
from US $7.28 |
||
|
47529S
|
47529S
47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust[03.2012 -] XZU282 |
47529-36010 |
US $4.22 |
||
|
47529T
|
47529T
47529-36010 Seal, Front Wheel Brake Cylinder Adjust Dust[03.2012 -] XZU282 |
47529-36010 |
US $4.22 |
||
|
47547R
|
47547R
47547-27020 Plug, Bleeder(For Front Drum Brake)[03.2012 -] XZU282 |
47547-27020 |
US $3.23 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[03.2012 -] XZU282 |
31478-30010 |
from US $1.48 |
||
|
47549S
|
47549S
47549-37091 Seat, Rear Brake Automatic Adjust Nut, Rh[03.2012 -] XZU282 |
47549-37091 |
US $1.79 |
||
|
47549T
|
47549T
47549-37091 Seat, Rear Brake Automatic Adjust Nut, Rh[03.2012 -] XZU282 |
47549-37091 |
US $1.79 |
||
|
47550
|
47550
47550-37101
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
[03.2012 -] XZU282 |
47550-37101 |
— | ||
| replacement | |||||
|
47550
|
47550
47550-37102 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[03.2012 -] XZU282 |
47550-37102 |
US $75.10 |
||
|
47550H
|
47550H
90101-08081 Bolt(For Front Wheel Cylinder)[03.2012 -] XZU282 |
90101-08081 |
US $1.79 |
||
|
47550Q
|
47550Q
90201-08002 Washer(For Front Wheel Cylinder)[03.2012 -] XZU282 |
90201-08002 |
from US $1.39 |
||
|
47559D
|
47559D
47559-36010 Sping, Front Automatic Adjust Lever Support[03.2012 -] XZU282 |
47559-36010 |
from US $3.32 |
||
|
47559E
|
47559E
47559-36010 Sping, Front Automatic Adjust Lever Support[03.2012 -] XZU282 |
47559-36010 |
from US $3.32 |
||
|
47560
|
47560
47560-37072
Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
[03.2012 -] XZU282 |
47560-37072 |
— | ||
| replacement | |||||
|
47560
|
47560
47560-37073 Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)[03.2012 -] XZU282 |
47560-37073 |
US $75.10 |
||
|
47570
|
47570
47570-37061
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
[03.2012 -] XZU282 |
47570-37061 |
— | ||
| replacement | |||||
|
47570
|
47570
47570-37062 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)[03.2012 -] XZU282 |
47570-37062 |
US $75.10 |
||
|
47580
|
47580
47580-37062
Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
[03.2012 -] XZU282 |
47580-37062 |
— | ||
| replacement | |||||
|
47580
|
47580
47580-37063 Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)[03.2012 -] XZU282 |
47580-37063 |
US $75.10 |
||
|
9014950037
|
9014950037
90149-50037 SCREW |
90149-50037 |
US $1.43 |
||
|
9020110287
|
9020110287
90201-10287 Washer(For Front Wheel Cylinder) |
90201-10287 |
US $3.05 |
||
