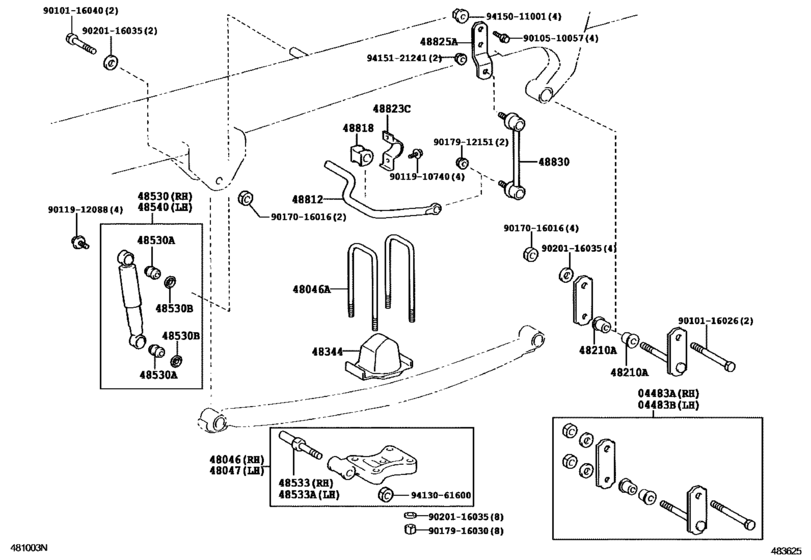

Rear Spring & Shock Absorber ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483A
|
04483A
04483-36140 Shackle Kit, Rear Spring, Rh[03.2012 -] XZU282 |
04483-36140 |
US $106.60 |
||
|
04483B
|
04483B
04483-36140 Shackle Kit, Rear Spring, Rh[03.2012 -] XZU282 |
04483-36140 |
US $106.60 |
||
|
48046
|
48046
48046-37170 Seat Sub-Assy, Spring U Bolt, Rh[03.2012 -] XZU282 |
48046-37170 |
US $52.71 |
||
|
48046A
|
48046A
90117-16007 Bolt, U(For Rear Spring)[03.2012 -] XZU282 長さ＝２２５ |
90117-16007 |
US $42.84 |
||
|
48047
|
48047
48046-37170 Seat Sub-Assy, Spring U Bolt, Rh[03.2012 -] XZU282 |
48046-37170 |
US $52.71 |
||
|
48210A
|
48210A
90385-23002 Bush(For Front Spring Pin)[03.2012 -] XZU282 |
90385-23002 |
from US $3.65 |
||
|
48344
|
48344
48344-37260 Stopper, Bumper, Rear[03.2012 -] XZU282 |
48344-37260 |
US $40.19 |
||
|
48530
|
48530
48531-80715 Absorber Assy, Shock, Rear Rh[03.2012 -] XZU282 マーク ４８５３１−３７１３１ |
48531-80715 |
US $121.36 |
||
|
48530A
|
48530A
90385-19006 Cushion, Shock Absorber[03.2012 -] XZU282 |
90385-19006 |
from US $2.89 |
||
|
48530B
|
48530B
90948-03011 Washer, Front Shock Absorber Cushion, No.1[03.2012 -] XZU282 |
90948-03011 |
from US $2.33 |
||
|
48533
|
48533
48522-37030 Pin, Front Shock Absorber Lower Pivot[03.2012 -] XZU282 |
48522-37030 |
US $24.36 |
||
|
48533A
|
48533A
48522-37030 Pin, Front Shock Absorber Lower Pivot[03.2012 -] XZU282 |
48522-37030 |
US $24.36 |
||
|
48540
|
48540
48531-80715 Absorber Assy, Shock, Rear Rh[03.2012 -] XZU282 マーク ４８５３１−３７１３１ |
48531-80715 |
US $121.36 |
||
|
48812
|
48812
48812-37050 Bar, Stabilizer, Rear[03.2012 -] XZU282 |
48812-37050 |
US $171.81 |
||
|
48818
|
48818
48815-37060 Bush, Stabilizer, Rear[03.2012 -] XZU282 |
48815-37060 |
US $13.44 |
||
|
48823C
|
48823C
48823-37011 Cover, Front Stabilizer Bracket[03.2012 -] XZU282 |
48823-37011 |
US $22.18 |
||
|
48825A
|
48825A
48825-37030 Bracket, Rear Stabilizer End[03.2012 -] XZU282 |
48825-37030 |
US $27.52 |
||
|
48830
|
48830
48830-37020 Link Assy, Rear Stabilizer[03.2012 -] XZU282 |
48830-37020 |
US $78.46 |
||
|
9010116026
|
9010116026
90101-16026 BOLT HEXAGON |
90101-16026 |
US $6.19 |
||
|
9010116040
|
9010116040
90101-16040 New Genuine Part |
90101-16040 |
US $9.61 |
||
|
9010510057
|
9010510057
90105-10057 Bolt (For Front Lower Ball Joint) |
90105-10057 |
US $4.12 |
||
|
9011910740
|
9011910740
90119-10740 New Genuine Part |
90119-10740 |
US $1.97 |
||
|
9011912088
|
9011912088
90119-12088 BOLT |
90119-12088 |
from US $1.98 |
||
|
9017016016
|
9017016016
90170-16016 NUT HEXAGON |
90170-16016 |
US $2.33 |
||
|
9017912151
|
9017912151
90179-12151 Nut(For Front Stabilizer Link) |
90179-12151 |
from US $0.89 |
||
|
9017916030
|
9017916030
90179-16030 NUT |
90179-16030 |
US $3.40 |
||
|
9020116035
|
9020116035
90201-16035 New Genuine Part |
90201-16035 |
US $2.15 |
||
|
9413061600
|
9413061600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $2.15 |
||
|
9415011001
|
9415011001
94150-11001 NUT |
94150-11001 |
US $1.43 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.91 |
