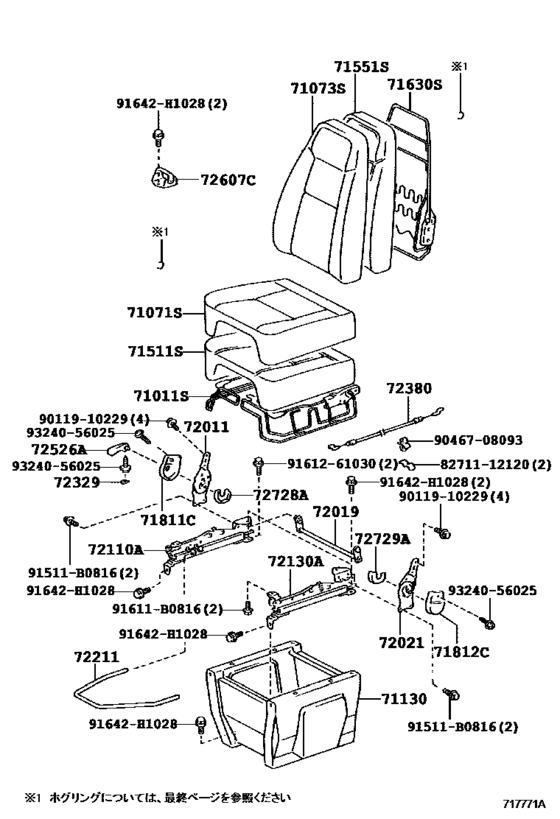

Seat & Seat Track ([03.2012 - ] ｳﾝﾃﾝｾｷ (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71011S
|
71011S
71610-37040 Frame Sub-Assy, Front Seat Cushion, Rh[03.2012 -] XZU282 |
71610-37040 |
US $321.78 |
||
|
71071S
|
71071S
71071-37560-B0 Cover, Front Seat Cushion, Rh(For Separate Type)[03.2012 - 12.2012] XZU282 BLUISH GRAY,TRIM1# |
71071-37560-B0 |
US $152.88 |
||
|
71073S
|
71073S
71073-37700-B0 Cover, Front Seat Back, Rh(For Separate Type)[03.2012 - 12.2012] XZU282 BLUISH GRAY,TRIM1# |
71073-37700-B0 |
US $218.40 |
||
|
71130
|
71130
71130-37011-B0 Leg Assy, Front Seat, Rh[03.2012 - 12.2012] XZU282 BLUISH GRAY,TRIM1# |
71130-37011-B0 |
US $304.30 |
||
|
71511S
|
71511S
71511-37090 Pad, Front Seat Cushion, Rh(For Separate Type)[03.2012 -] XZU282 |
71511-37090 |
US $199.47 |
||
|
71551S
|
71551S
71551-37180 Pad, Front Seat Back, Rh(For Separate Type)[03.2012 -] XZU282 |
71551-37180 |
US $129.58 |
||
|
71630S
|
71630S
71630-37100 Spring Assy, Front Seat Back, Rh(For Separate Type)[03.2012 -] XZU282 |
71630-37100 |
US $190.74 |
||
|
71811C
|
71811C
71834-60090-B0 Cover, Reclining Adjuster, Rh[03.2012 - 12.2012] XZU282 MD.GRAY,TRIM1# |
71834-60090-B0 |
US $15.72 |
||
|
71812C
|
71812C
71834-60100-B0 Cover, Reclining Adjuster, Rh[03.2012 - 12.2012] XZU282 MD.GRAY,TRIM1# |
71834-60100-B0 |
US $15.72 |
||
|
72011
|
72011
72720-37010 Adjuster Sub-Assy, Front Seat, Outer Rh[03.2012 -] XZU282 |
72720-37010 |
US $138.32 |
||
|
72019
|
72019
72019-37010 Retainer Sub-Assy, Seat Track, Rear Rh[03.2012 -] XZU282 |
72019-37010 |
US $27.52 |
||
|
72021
|
72021
72740-37010 Adjuster Sub-Assy, Front Seat, Inner Rh[03.2012 -] XZU282 |
72740-37010 |
US $138.32 |
||
|
72110A
|
72110A
72110-37040 Track Assy, Front Seat, Outer Rh[03.2012 -] XZU282 |
72110-37040 |
US $142.69 |
||
|
72130A
|
72130A
72130-37040 Track Assy, Front Seat, Inner Rh[03.2012 -] XZU282 |
72130-37040 |
US $142.69 |
||
|
72211
|
72211
72211-37030 Handle, Seat Track Adjusting[03.2012 -] XZU282 |
72211-37030 |
US $13.83 |
||
|
72329
|
72329
72329-60010-B0 Cover, Seat Adjuster Bolt[03.2012 - 12.2012] XZU282 MD. GRAY,TRIM1# |
72329-60010-B0 |
US $1.60 |
||
|
72380
|
72380
72380-60150 Cable Assy, Seat Adjuster Control, No.2[03.2012 -] XZU282 |
72380-60150 |
US $34.51 |
||
|
72526A
|
72526A
72525-60050-B0 Handle, Reclining Adjuster Release, Lh[03.2012 - 12.2012] XZU282 MD.GRAY,TRIM1# |
72525-60050-B0 |
US $29.27 |
||
|
72607C
|
72607C
72607-37010 Striker Sub-Assy, Front Seat Cushion Lock[03.2012 -] XZU282 |
72607-37010 |
US $30.58 |
||
|
72728A
|
72728A
72728-60010 Protector, Rear Seat Reclining, Inner Rh[03.2012 -] XZU282 |
72728-60010 |
US $10.48 |
||
|
72729A
|
72729A
72729-60010 Protector, Rear Seat Reclining, Inner Rh[03.2012 -] XZU282 |
72729-60010 |
US $10.48 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
from US $0.82 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
91642H1028
|
91642H1028
91642-H1028 BOLT WWASHER |
91642-H1028 |
from US $1.37 |
||
|
8271112120
|
8271112120
82711-12120 Clamp(Rear Seat) |
82711-12120 |
US $3.40 |
||
|
9011910229
|
9011910229
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9046708093
|
9046708093
90467-08093 New Genuine Part |
90467-08093 |
US $1.31 |
||
|
9161261030
|
9161261030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
|
9324056025
|
9324056025
93240-56025 SCREW |
93240-56025 |
from US $0.78 |
