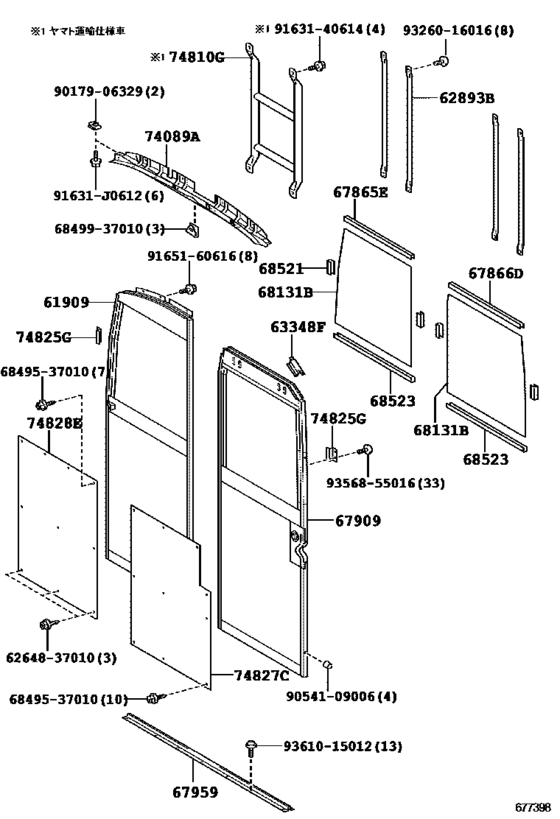

Separation Door Panel & Glass ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61909
|
61909
74085-37013 Panel Sub-Assy, Separation[03.2012 -] XZU282 |
74085-37013 |
US $532.90 |
||
|
61909
|
61909
74085-37023 Panel Sub-Assy, Separation[03.2012 -] XZU282 ヤマト運輸仕様 |
74085-37023 |
US $532.90 |
||
|
62893B
|
62893B
62893-37010 Bar, Separation Door Window Guard[03.2012 -] XZU282 |
62893-37010 |
US $26.06 |
||
|
63348F
|
63348F
63348-37040-A0 Cover, Roof Side Rail, Inner[03.2012 - 12.2012] XZU282 IVORY,TRIM1# |
63348-37040-A0 |
US $7.72 |
||
|
67865E
|
67865E
68523-37010 Weatherstrip, Front Door, No.3 Rh[03.2012 -] XZU282 |
68523-37010 |
US $19.95 |
||
|
67866D
|
67866D
67866-37020
Weatherstrip, Front Door, No.3 Lh
[03.2012 -] XZU282 |
67866-37020 |
— | ||
|
67909
|
67909
67909-37050
Panel Sub-Assy, Separation Door
[03.2012 -] XZU282 |
67909-37050 |
— | ||
|
67959
|
67959
67959-37011 Rail, Separation Door[03.2012 -] XZU282 |
67959-37011 |
US $119.39 |
||
|
68131B
|
68131B
68515-37010
Glass, Separation
[03.2012 -] XZU282 右側 |
68515-37010 |
— | ||
|
68131B
|
68131B
68516-37030
Glass, Separation
[03.2012 -] XZU282 左側 |
68516-37030 |
— | ||
|
68521
|
68521
68521-37010 Weatherstrip, Separation Door Window[03.2012 -] XZU282 |
68521-37010 |
US $4.22 |
||
|
68523
|
68523
68523-37010 Weatherstrip, Front Door, No.3 Rh[03.2012 -] XZU282 右側 |
68523-37010 |
US $19.95 |
||
|
68523
|
68523
68523-37020
Weatherstrip, Separation Door Window, No.2
[03.2012 -] XZU282 左側 |
68523-37020 |
— | ||
|
74089A
|
74089A
74089-37010 Rail Sub-Assy, Separation Door[03.2012 -] XZU282 |
74089-37010 |
US $135.41 |
||
|
74810G
|
74810G
74810-37100 Separator Assy, Front Rh[03.2012 -] XZU282 ヤマト運輸仕様 |
74810-37100 |
US $91.73 |
||
|
74825G
|
74825G
74825-37030-A0 Bracket, Separator, Rh[03.2012 - 12.2012] XZU282 WHITE,TRIM1# |
74825-37030-A0 |
US $5.53 |
||
|
74825G
|
74825G
74825-37030-A1 Bracket, Separator, Rh[03.2012 - 12.2012] XZU282 ヤマト運輸仕様,YAMATOUNYU JORSEY CR,TRIM1# |
74825-37030-A1 |
US $5.53 |
||
|
74827C
|
74827C
74827-37011 Board, Separator, Front[03.2012 -] XZU282 |
74827-37011 |
US $165.98 |
||
|
74828E
|
74828E
74828-37012 Board, Separator, Rear[03.2012 -] XZU282 |
74828-37012 |
US $177.63 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
6264837010
|
6264837010
62648-37010 Cap, Side Trim |
62648-37010 |
US $2.18 |
||
|
6849537010
|
6849537010
68495-37010 New Genuine Part |
68495-37010 |
US $2.91 |
||
|
6849937010
|
6849937010
68499-37010 New Genuine Part |
68499-37010 |
US $3.93 |
||
|
9017906329
|
9017906329
90179-06329 NUT |
90179-06329 |
US $1.43 |
||
|
9054109006
|
9054109006
90541-09006 Cushion, Front Door Panel |
90541-09006 |
from US $1.65 |
||
|
9163140614
|
9163140614
91631-40614 БОЛТ BOLT |
91631-40614 |
US $1.43 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
|
9326016016
|
9326016016
93260-16016 New Genuine Part |
93260-16016 |
US $1.46 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.49 |
||
|
9361015012
|
9361015012
93610-15012 New Genuine Part |
93610-15012 |
US $1.05 |
