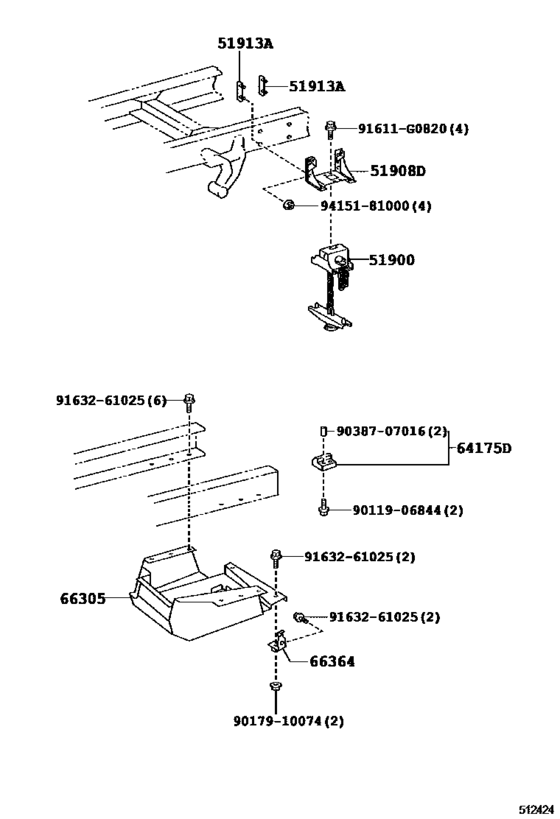

Spare Wheel Carrier ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900
|
51900
51900-37160 Carrier Assy, Spare Wheel[03.2012 -] XZU282 |
51900-37160 |
from US $74.59 |
||
|
51908D
|
51908D
51908-37500 Bracket Sub-Assy, Spare Wheel Carrier, Rh[03.2012 -] XZU282 |
51908-37500 |
US $122.30 |
||
|
51913A
|
51913A
51913-37020 Plate, Spare Wheel Mounting[03.2012 -] XZU282 |
51913-37020 |
US $10.05 |
||
|
64175D
|
64175D
64175-37080 Protector, Lower Back Rail[03.2012 -] XZU282 |
64175-37080 |
US $19.95 |
||
|
66305
|
66305
66305-37010 Box Sub-Assy, Hand Truck[03.2012 - 12.2012] XZU282 |
66305-37010 |
US $538.72 |
||
|
66364
|
66364
66364-37010 Bracket, Hand Truck Box, No.4[03.2012 -] XZU282 |
66364-37010 |
US $8.26 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.16 |
||
|
9011906844
|
9011906844
90119-06844 Bolt, Brake Actuator Cushion |
90119-06844 |
US $1.61 |
||
|
9017910074
|
9017910074
90179-10074 New Genuine Part |
90179-10074 |
US $1.97 |
||
|
9038707016
|
9038707016
90387-07016 Collar(For Intake Air Connector) |
90387-07016 |
US $0.79 |
||
|
9163261025
|
9163261025
91632-61025 New Genuine Part |
91632-61025 |
US $3.05 |
||
|
9415181000
|
9415181000
94151-81000 NUT FLANGE |
94151-81000 |
US $1.79 |
