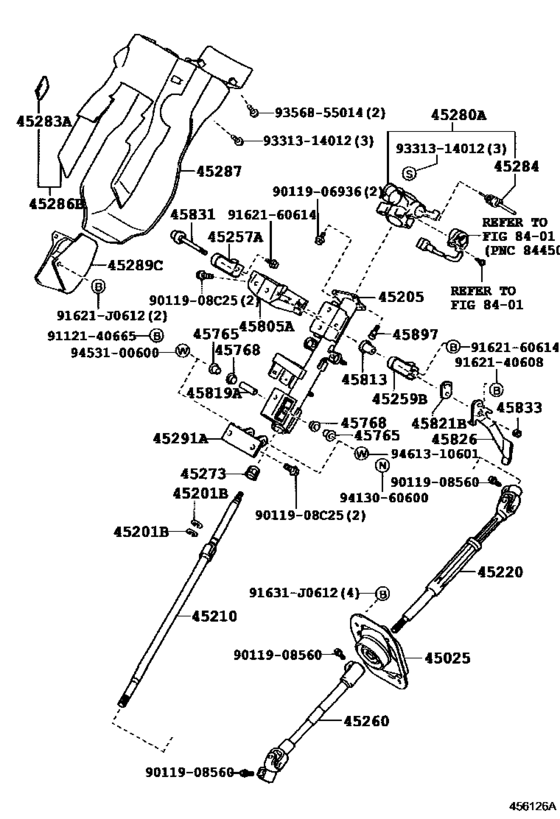

Steering Column & Shaft ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025
|
45025
45025-37020 Cover, Steering Intermediate Shaft[03.2012 - 12.2012] XZU282 |
45025-37020 |
US $33.63 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[03.2012 -] XZU282 厚さ＝１．２０ |
90520-17269 |
US $2.15 |
||
|
45205
|
45205
45205-37110 Tube Sub-Assy, Steering Column[03.2012 -] XZU282 |
45205-37110 |
US $67.70 |
||
|
45210
|
45210
45210-37140 Shaft Assy, Steering Main[03.2012 -] XZU282 |
45210-37140 |
US $231.50 |
||
|
45220
|
45220
45220-37110 Shaft Assy, Steering Intermediate[03.2012 -] XZU282 |
45220-37110 |
US $190.74 |
||
|
45257A
|
45257A
45257-37020 Plate, Steering Column Energy Absorbing[03.2012 -] XZU282 |
45257-37020 |
US $3.93 |
||
|
45259B
|
45259B
45259-37020 Plate, Steering Column Energy Absorbing, No.2[03.2012 -] XZU282 |
45259-37020 |
US $4.37 |
||
|
45260
|
45260
45260-37030 Shaft Assy, Steering Intermediate, No.2[03.2012 -] XZU282 |
45260-37030 |
US $171.81 |
||
|
45273
|
45273
45273-33030 Bush, Steering Main Shaft[03.2012 -] XZU282 |
45273-33030 |
from US $7.98 |
||
|
45280A
|
45280A
45280-37100 Bracket Assy, Steering Column, Upper[03.2012 - 12.2012] XZU282 |
45280-37100 |
US $262.40 |
||
|
45283A
|
45283A
45283-22010 Plate, Safety Caution[03.2012 -] XZU282 |
45283-22010 |
US $2.69 |
||
|
45284
|
45284
45284-37010 Shaft, Steering Lock Cam[03.2012 -] XZU282 |
45284-37010 |
from US $20.12 |
||
|
45286B
|
45286B
45286-37110-B0 Cover, Steering Column, Upr[03.2012 - 12.2012] XZU282 BLUISH GRAY,TRIM1# |
45286-37110-B0 |
US $37.86 |
||
|
45287
|
45287
45287-37100-B0 Cover, Steering Column, Lwr[03.2012 - 12.2012] XZU282 BLUISH GRAY,TRIM1# |
45287-37100-B0 |
US $39.89 |
||
|
45289C
|
45289C
45289-37020 Cover, Steering Column, Lwr No.2[03.2012 -] XZU282 |
45289-37020 |
US $13.54 |
||
|
45291A
|
45291A
45803-37010 Support, Steering Column Tube[03.2012 -] XZU282 |
45803-37010 |
US $10.63 |
||
|
45765
|
45765
45765-37010 Guide, Telescopic Steering[03.2012 -] XZU282 |
45765-37010 |
US $1.16 |
||
|
45768
|
45768
45768-37010 Bush, Telescopic Steering[03.2012 -] XZU282 |
45768-37010 |
US $1.46 |
||
|
45805A
|
45805A
45805-37020 Support Sub-Assy, Tilt Steering[03.2012 -] XZU282 |
45805-37020 |
US $49.21 |
||
|
45813
|
45813
45813-37010 Collar, Tilt Steering Support, No.1[03.2012 -] XZU282 外径＝３０ |
45813-37010 |
US $5.39 |
||
|
45819A
|
45819A
90387-06037 Collar(For Tilt Lever Retainer)[03.2012 -] XZU282 |
90387-06037 |
US $1.40 |
||
|
45821B
|
45821B
45821-12010 Reinforce, Tilt Steering Support, No.1[03.2012 -] XZU282 |
45821-12010 |
US $1.02 |
||
|
45826
|
45826
45826-37020 Lever, Steering Tilt[03.2012 -] XZU282 |
45826-37020 |
US $9.32 |
||
|
45831
|
45831
45831-37010 Bolt, Tilt Lever Lock, No.1[03.2012 -] XZU282 |
45831-37010 |
US $5.97 |
||
|
45833
|
45833
45833-37010 Nut, Tilt Steering Adjusting, No.1[03.2012 -] XZU282 |
45833-37010 |
US $1.02 |
||
|
45897
|
45897
45897-25010 Bolt, Steering Lock Set[03.2012 - 12.2012] XZU282 |
45897-25010 |
from US $3.14 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011908C25
|
9011908C25
90119-08C25 BOLT WWASHER |
90119-08C25 |
from US $0.84 |
||
|
9011906936
|
9011906936
90119-06936 New Genuine Part |
90119-06936 |
US $1.61 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.10 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 New Genuine Part |
90080-11555 |
US $4.23 |
||
|
9112140665
|
9112140665
91121-40665 New Genuine Part |
91121-40665 |
US $1.10 |
||
|
9162140608
|
9162140608
91621-40608 New Genuine Part |
91621-40608 |
US $0.42 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9413060600
|
9413060600
94130-60600 Nut, Wire Adjusting, No.1 |
94130-60600 |
from US $0.76 |
||
|
9453100600
|
9453100600
94531-00600 Washer(For Outer Lever Oil Setting) |
94531-00600 |
from US $0.72 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.25 |
||
