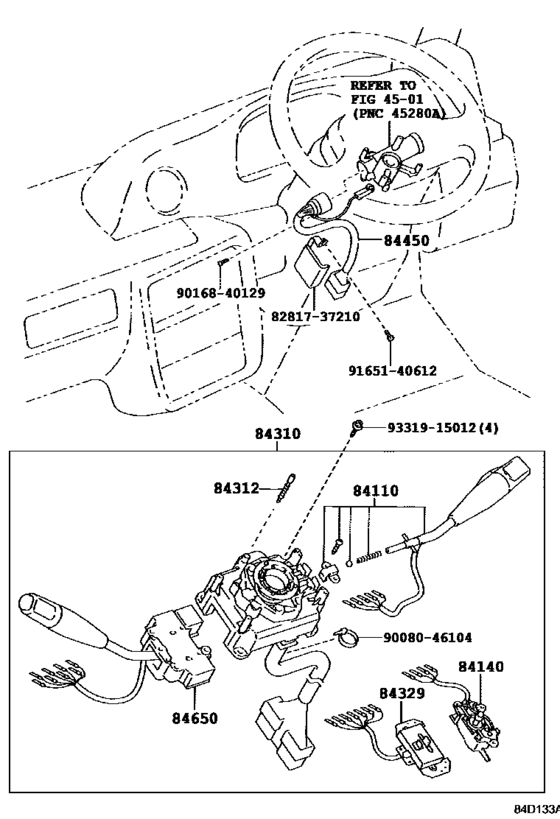

Switch & Relay & Computer ([03.2012 - ] ｽﾃｱﾘﾝｸﾞ (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-80224 Switch Assy, Light Control, No.1[03.2012 -] XZU282 |
84112-80224 |
US $59.40 |
||
|
84140
|
84140
84140-37070 Switch Assy, Headlamp Dimmer[03.2012 -] XZU282 |
84140-37070 |
US $69.31 |
||
|
84310
|
84310
84310-37300 Switch Assy, Turn Signal[03.2012 -] XZU282 |
84310-37300 |
US $280.70 |
||
|
84312
|
84312
84312-20011 Plate, Horn Contact[03.2012 -] XZU282 |
84312-20011 |
from US $4.69 |
||
|
84329
|
84329
84329-37090 Switch, Turn Signal[03.2012 -] XZU282 |
84329-37090 |
US $19.22 |
||
|
84450
|
84450
84450-37130 Switch Assy, Ignition Or Starter[03.2012 - 12.2012] XZU282 |
84450-37130 |
US $62.46 |
||
| replacement | |||||
|
84450
|
84450
84450-37131 Switch Assy, Ignition Or Starter[03.2012 - 12.2012] XZU282 |
84450-37131 |
US $93.48 |
||
|
84650
|
84650
84652-37200 Switch Assy, Windshield Wiper[03.2012 -] XZU282 |
84652-37200 |
US $116.48 |
||
|
8281737210
|
8281737210
82817-37210 Protector, Wiring Harness, No.1 |
82817-37210 |
US $17.33 |
||
|
9008046104
|
9008046104
90080-46104 New Genuine Part |
90080-46104 |
US $1.46 |
||
|
9016840129
|
9016840129
90168-40129 SCREW TAPPING |
90168-40129 |
US $1.08 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.25 |
||
