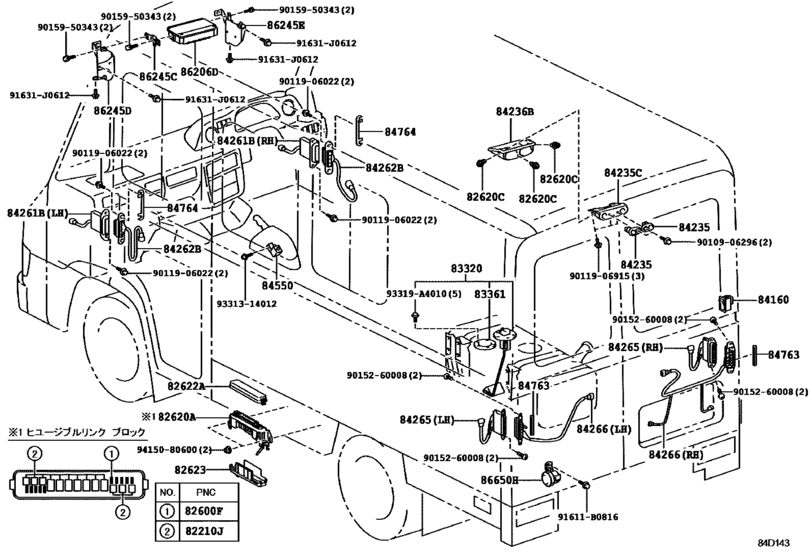

Switch & Relay & Computer ([03.2012 - ] ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08202 Fusible Link[03.2012 - 12.2012] XZU282 ６０Ａ，オス端子 |
90982-08202 |
US $12.54 |
||
|
82210J
|
82210J
90982-08223 Fusible Link[03.2012 - 12.2012] XZU282 ３０Ａ，オス端子 |
90982-08223 |
US $12.72 |
||
|
82210J
|
82210J
90982-08228 Fusible Link[03.2012 - 12.2012] XZU282 ５０Ａ，オス端子 |
90982-08228 |
US $10.39 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[03.2012 - 12.2012] XZU282 ３０Ａ，メス端子 |
90982-08280 |
from US $3.78 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[03.2012 - 12.2012] XZU282 ４０Ａ，メス端子 |
90982-08281 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[03.2012 - 12.2012] XZU282 １４０Ａ，オス端子 |
90982-08286 |
from US $8.60 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[03.2012 - 12.2012] XZU282 １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $0.48 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[03.2012 - 12.2012] XZU282 ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.91 |
||
|
82620A
|
82620A
82620-36080 Block Assy, Fusible Link[03.2012 - 12.2012] XZU282 |
82620-36080 |
US $91.73 |
||
|
82620C
|
82620C
90467-06133-C0 Clip, Step Plate Cover[03.2012 - 12.2012] XZU282 BLACK |
90467-06133-C0 |
from US $1.43 |
||
|
82622A
|
82622A
82622-37050 Cover, Fusible Link, Upper, No.2[03.2012 - 12.2012] XZU282 |
82622-37050 |
US $18.05 |
||
|
82623
|
82623
82623-36010 Cover, Fusible Link, Lower[03.2012 - 12.2012] XZU282 |
82623-36010 |
US $30.93 |
||
|
83320
|
83320
83320-80312 Gage Assy, Fuel Sender[03.2012 - 12.2012] XZU282 |
83320-80312 |
US $58.24 |
||
| replacement | |||||
|
83320
|
83320
83320-80316 Gage Assy, Fuel Sender[03.2012 - 12.2012] XZU282 |
83320-80316 |
US $72.58 |
||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[03.2012 - 12.2012] XZU282 |
83361-20030 |
from US $2.24 |
||
|
84160
|
84160
84170-90D00 Switch Assy, Room Lamp[03.2012 -] XZU282 |
84170-90D00 |
US $60.31 |
||
|
84235
|
84235
84231-60070 Switch, Courtesy Lamp[03.2012 -] XZU282 |
84231-60070 |
from US $11.83 |
||
|
84235C
|
84235C
84233-37010 Bracket, Courtesy Switch(For Back Door)[03.2012 -] XZU282 |
84233-37010 |
US $25.92 |
||
|
84236B
|
84236B
84236-37010 Cover, Courtesy Lamp Switch[03.2012 -] XZU282 |
84236-37010 |
US $17.18 |
||
|
84261B
|
84261B
84261-37010 Junction, Slide Door Control,male[03.2012 -] XZU282 右側 |
84261-37010 |
US $54.75 |
||
|
84261B
|
84261B
84261-37020 Junction, Slide Door Control,male[03.2012 -] XZU282 左側 |
84261-37020 |
US $54.75 |
||
|
84262B
|
84262B
84262-37011 Junction, Slide Door Control, Female[03.2012 -] XZU282 |
84262-37011 |
US $59.64 |
||
|
84265
|
84265
84265-37020 Junction, Back Door Male[03.2012 -] XZU282 左側 |
84265-37020 |
US $84.45 |
||
| replacement | |||||
|
84265
|
84265
84265-37030 Junction, Back Door Male[03.2012 -] XZU282 左側 |
84265-37030 |
US $113.52 |
||
|
84265
|
84265
84265-37030 Junction, Back Door Male[03.2012 -] XZU282 右側 |
84265-37030 |
US $113.52 |
||
|
84266
|
84266
84266-37010 Junction, Back Door Female[03.2012 -] XZU282 右側 |
84266-37010 |
US $100.32 |
||
|
84266
|
84266
84266-37020 Junction, Back Door Female[03.2012 -] XZU282 左側 |
84266-37020 |
US $74.26 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[03.2012 - 12.2012] XZU282 |
84550-16060 |
from US $19.32 |
||
|
84763
|
84763
84763-37010 Plate, Switch[03.2012 -] XZU282 |
84763-37010 |
US $1.60 |
||
|
84764
|
84764
84764-37020 Plate, Switch, No.2[03.2012 -] XZU282 厚さ＝１．０ |
84764-37020 |
US $3.79 |
||
|
84764
|
84764
84764-37030 Plate, Switch, No.2[03.2012 -] XZU282 厚さ＝０．６ |
84764-37030 |
US $3.49 |
||
|
86206D
|
86206D
86206-37130
Converter Sub-Assy, Voltage
[03.2012 -] XZU282 |
86206-37130 |
— | ||
| replacement | |||||
|
86206D
|
86206D
86206-37131 Converter Sub-Assy, Voltage[03.2012 -] XZU282 |
86206-37131 |
US $575.12 |
||
|
86245C
|
86245C
86245-37170 Bracket, Voltage Converter[03.2012 -] XZU282 |
86245-37170 |
US $5.24 |
||
|
86245D
|
86245D
86245-37190 Bracket, Voltage Converter, No.2[03.2012 - 12.2012] XZU282 |
86245-37190 |
US $17.18 |
||
|
86245E
|
86245E
86245-37200 Bracket, Voltage Converter, No.3[03.2012 - 12.2012] XZU282 |
86245-37200 |
US $16.31 |
||
|
86650H
|
86650H
86650-37050 Buzzer Assy, Reverse Warning[03.2012 -] XZU282 |
86650-37050 |
US $106.60 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.67 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.61 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9015260008
|
9015260008
90152-60008 New Genuine Part |
90152-60008 |
US $2.15 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.67 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $1.08 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
