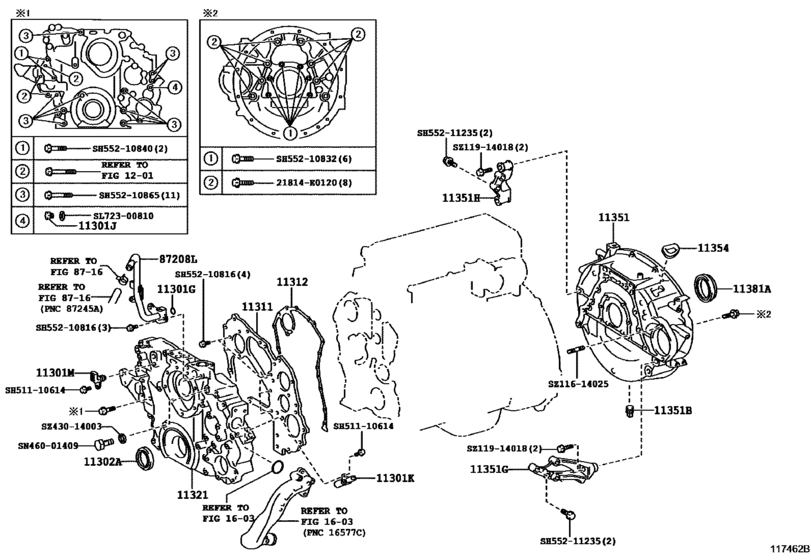

Timing Gear Cover & Rear End Plate ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301G
|
11301G
SN741-00253 Ring, O(For Timing Gear Case, Upper)[03.2012 -] N04C..XZU282 |
SN741-00253 |
US $5.91 |
||
|
11301J
|
11301J
SZ341-08001 Plug, W/head Straight Screw(For Timing Gear Case)[03.2012 -] N04C..XZU282 |
SZ341-08001 |
US $2.91 |
||
|
11301K
|
11301K
89411-E0040 Sensor, Crank Position[03.2012 - 12.2012] N04C..XZU282 |
89411-E0040 |
from US $39.08 |
||
|
11301M
|
11301M
S8941-01570 Sensor, Cam Position[03.2012 - 12.2012] N04C..XZU282 |
S8941-01570 |
from US $52.86 |
||
|
11302A
|
11302A
SZ313-58001 Seal, Oil(For Timing Chain Or Belt Cover)[03.2012 -] N04C..XZU282 |
SZ313-58001 |
from US $9.73 |
||
|
11311
|
11311
S1140-51090 Plate, Front End[03.2012 -] N04C..XZU282 |
S1140-51090 |
US $240.24 |
||
|
11312
|
11312
S1131-21170 Gasket, Front End Plate[03.2012 -] N04C..XZU282 |
S1131-21170 |
US $20.38 |
||
|
11321
|
11321
11310-E0141 Case, Timing Gear[03.2012 - 08.2012] N04C..XZU282 |
11310-E0141 |
US $451.36 |
||
| replacement | |||||
|
11321
|
11321
11310-E0151
Case, Timing Gear
[03.2012 - 08.2012] N04C..XZU282 |
11310-E0151 |
— | ||
|
11321
|
11321
11310-E0150
Case, Timing Gear
[08.2012 -] N04C..XZU282 |
11310-E0150 |
— | ||
| replacement | |||||
|
11321
|
11321
11310-E0151
Case, Timing Gear
[08.2012 -] N04C..XZU282 |
11310-E0151 |
— | ||
|
11351
|
11351
11351-E0G73 Housing, Flywheel[03.2012 -] N04C..XZU282 |
11351-E0G73 |
US $422.24 |
||
| replacement | |||||
|
11351
|
11351
11351-E0G75 Housing, Flywheel[03.2012 -] N04C..XZU282 |
11351-E0G75 |
US $422.24 |
||
|
11351B
|
11351B
SN480-01008 Plug, Hole(For Flywheel Housing)[03.2012 -] N04C..XZU282 |
SN480-01008 |
US $2.77 |
||
|
11351G
|
11351G
11353-E0060 Stay, Lh(For Flywheel Housing)[03.2012 -] N04C..XZU282 |
11353-E0060 |
US $152.88 |
||
|
11351H
|
11351H
S1135-62030 Stay, Rh(For Flywheel Housing)[03.2012 -] N04C..XZU282 |
S1135-62030 |
US $107.74 |
||
|
11354
|
11354
11354-E0060 Seal, Flywheel Housing Dust[03.2012 -] N04C..XZU282 |
11354-E0060 |
from US $2.91 |
||
|
11381A
|
11381A
SZ311-00002
Seal, Engine Rear Oil
[03.2012 -] N04C..XZU282 |
SZ311-00002 |
— | ||
| replacement | |||||
|
11381A
|
11381A
SZ311-00004 Seal, Engine Rear Oil[03.2012 -] N04C..XZU282 |
SZ311-00004 |
from US $14.88 |
||
|
87208L
|
87208L
16302-E0400 Pipe Sub-Assy, Water[03.2012 - 12.2012] XZU282 |
16302-E0400 |
US $74.26 |
||
|
21814E0120
|
21814E0120
21814-E0120 Bolt, Fuel Inlet |
21814-E0120 |
US $3.93 |
||
|
SH51110614
|
SH51110614
SH511-10614
New Genuine Part
|
SH511-10614 |
— | ||
|
SH55210816
|
SH55210816
SH552-10816 Bolt(For Cylinder Head Cover) |
SH552-10816 |
US $6.27 |
||
|
SH55210832
|
SH55210832
SH552-10832 New Genuine Part |
SH552-10832 |
US $6.63 |
||
|
SH55210840
|
SH55210840
SH552-10840 New Genuine Part |
SH552-10840 |
US $2.91 |
||
|
SH55210865
|
SH55210865
SH552-10865 Bolt(For Cylinder Head Cover) |
SH552-10865 |
US $17.30 |
||
|
SH55211235
|
SH55211235
SH552-11235 New Genuine Part |
SH552-11235 |
US $4.08 |
||
|
SL72300810
|
SL72300810
SL723-00810
New Genuine Part
|
SL723-00810 |
— | ||
|
SN46001409
|
SN46001409
SN460-01409 New Genuine Part |
SN460-01409 |
US $6.27 |
||
|
SZ11614025
|
SZ11614025
SZ116-14025 New Genuine Part |
SZ116-14025 |
US $5.39 |
||
|
SZ11914018
|
SZ11914018
SZ119-14018 NR BOLT 300S |
SZ119-14018 |
US $4.80 |
||
|
SZ43014003
|
SZ43014003
SZ430-14003 Gasket, No.2(For Turbo Water Pipe) |
SZ430-14003 |
US $2.15 |
||
