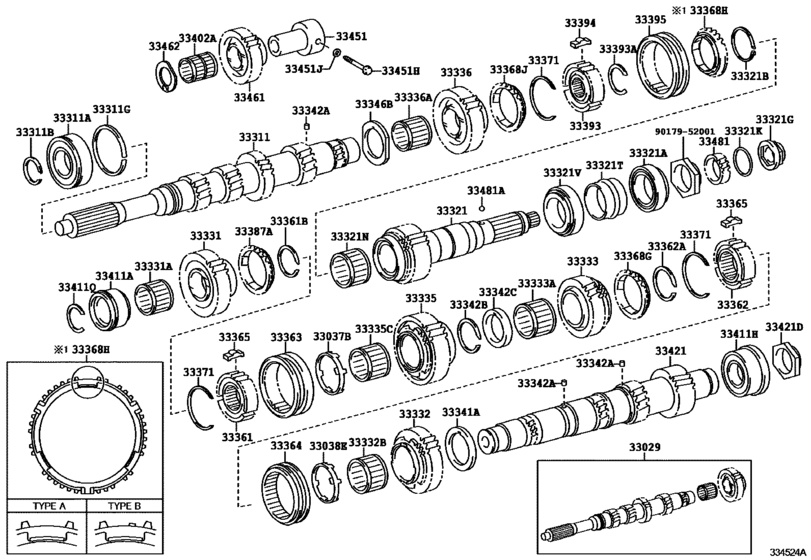

Transmission Gear (Mtm) ([03.2012 - ] M550 (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33029
|
33029
33029-37040 Shaft Set, InputINPUT [03.2012 -] XZU282 |
33029-37040 |
US $828.46 |
||
|
33037B
|
33037B
33037-37050 Ring Set, Synchronizer, No.1SYNCHRONIZER, NO.1 [03.2012 - 12.2012] XZU282 |
33037-37050 |
from US $121.36 |
||
|
33038E
|
33038E
33038-37040 Ring Set, Synchronizer, No.2[03.2012 - 12.2012] XZU282 |
33038-37040 |
from US $118.08 |
||
|
33311
|
33311
33311-37290 Shaft, InputINPUT [03.2012 - 12.2012] XZU282 |
33311-37290 |
US $330.51 |
||
|
33311A
|
33311A
90363-47001 Bearing (For Input Shaft Front)[03.2012 - 12.2012] XZU282 |
90363-47001 |
from US $55.60 |
||
|
33311B
|
33311B
90520-42022 Ring, Shaft Snap (For Front Bearing)[03.2012 - 12.2012] XZU282 厚さ＝３．００−３．０５，マーク Ａ |
90520-42022 |
from US $1.60 |
||
|
33311B
|
33311B
90520-42023 Ring, Shaft Snap (For Front Bearing)[03.2012 - 12.2012] XZU282 厚さ＝３．０５−３．１０，マーク Ｂ |
90520-42023 |
US $1.60 |
||
|
33311B
|
33311B
90520-42024 Ring, Shaft Snap (For Front Bearing)[03.2012 - 12.2012] XZU282 厚さ＝３．１０−３．１５，マーク Ｃ |
90520-42024 |
from US $1.60 |
||
|
33311B
|
33311B
90520-42025 Ring, Shaft Snap (For Front Bearing)[03.2012 - 12.2012] XZU282 厚さ＝３．１５−３．２０，マーク Ｄ |
90520-42025 |
US $1.60 |
||
|
33311B
|
33311B
90520-42026 Ring, Shaft Snap (For Front Bearing)[03.2012 - 12.2012] XZU282 厚さ＝３．２０−３．２５，マーク Ｅ |
90520-42026 |
US $1.60 |
||
|
33311B
|
33311B
90520-42027 Ring, Shaft Snap (For Front Bearing)[03.2012 - 12.2012] XZU282 厚さ＝３．２５−３．３０，マーク Ｆ |
90520-42027 |
from US $1.60 |
||
|
33311G
|
33311G
90520-99009 Ring, Shaft Snap (For Front Bearing)[03.2012 - 12.2012] XZU282 |
90520-99009 |
from US $3.12 |
||
|
33321
|
33321
33302-37030
Shaft, Output
[03.2012 - 12.2012] XZU282 |
33302-37030 |
— | ||
| replacement | |||||
|
33321
|
33321
33302-36010 SHAFT SUBASSY[03.2012 - 12.2012] XZU282 |
33302-36010 |
from US $212.80 |
||
|
33321A
|
33321A
90366-55057 Bearing (For Output Shaft Rear)[03.2012 - 12.2012] XZU282 |
90366-55057 |
from US $37.80 |
||
|
33321B
|
33321B
90521-58001 Ring, Shaft Snap (For Front Bearing)[03.2012 - 12.2012] XZU282 厚さ＝１．７３−１．８７ |
90521-58001 |
from US $1.60 |
||
|
33321G
|
33321G
90179-24008 Nut (For Manual Transmission Output Shaft Rear Set)[03.2012 - 12.2012] XZU282 |
90179-24008 |
from US $3.23 |
||
|
33321K
|
33321K
90301-31003 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)[03.2012 - 12.2012] XZU282 |
90301-31003 |
from US $3.15 |
||
|
33321N
|
33321N
90364-38021 Bearing, Needle Roller[03.2012 - 12.2012] XZU282 |
90364-38021 |
from US $42.77 |
||
|
33321T
|
33321T
35775-37020 Spacer (For Output Shaft)[03.2012 - 12.2012] XZU282 |
35775-37020 |
from US $11.42 |
||
|
33321V
|
33321V
90366-55060 Bearing (For Output Shaft Center)[03.2012 - 12.2012] XZU282 |
90366-55060 |
from US $53.26 |
||
|
33331
|
33331
33425-37020 Gear, ReverseREVERSE [03.2012 - 12.2012] XZU282 |
33425-37020 |
from US $142.80 |
||
|
33331A
|
33331A
90364-43010 Bearing (For Reverse Gear)[03.2012 - 12.2012] XZU282 |
90364-43010 |
US $33.49 |
||
|
33332
|
33332
33424-37040 Gear, 2Nd2ND [03.2012 - 12.2012] XZU282 |
33424-37040 |
from US $148.51 |
||
|
33332B
|
33332B
90364-54010 Bearing, Needle Roller (For 2Nd Gear)NEEDLE ROLLER (FOR 2ND GEAR) [03.2012 - 12.2012] XZU282 |
90364-54010 |
from US $30.89 |
||
|
33333
|
33333
33044-37020 Gear, 3Rd3RD [03.2012 - 12.2012] XZU282 |
33044-37020 |
from US $90.59 |
||
|
33333A
|
33333A
90364-54011 Bearing, Needle Roller (For 3Rd Gear)NEEDLE ROLLER (FOR 3RD GEAR) [03.2012 - 12.2012] XZU282 |
90364-54011 |
US $33.49 |
||
|
33335
|
33335
33426-37020 Gear, 1St[03.2012 - 12.2012] XZU282 |
33426-37020 |
from US $161.62 |
||
|
33335C
|
33335C
90364-49004 Bearing, Needle Roller(For 1St Gear)NEEDLE ROLLER(FOR 1ST GEAR) [03.2012 - 12.2012] XZU282 |
90364-49004 |
from US $33.49 |
||
|
33336
|
33336
33336-37061 Gear, 5Th[03.2012 - 12.2012] XZU282 |
33336-37061 |
US $121.44 |
||
|
33336A
|
33336A
90364-48008 Bearing, Needle Roller (For 5Th Gear)NEEDLE ROLLER (FOR 5TH GEAR) [03.2012 - 12.2012] XZU282 ＊１５５ |
90364-48008 |
from US $35.45 |
||
|
33336A
|
33336A
90364-48009 Bearing, Needle Roller (For 5Th Gear)NEEDLE ROLLER (FOR 5TH GEAR) [03.2012 - 12.2012] XZU282 ＊１５６ |
90364-48009 |
US $33.49 |
||
|
33336A
|
33336A
90364-48010 Bearing, Needle Roller (For 5Th Gear)NEEDLE ROLLER (FOR 5TH GEAR) [03.2012 - 12.2012] XZU282 ＊１５７ |
90364-48010 |
US $33.49 |
||
|
33336A
|
33336A
90364-48011 Bearing, Needle Roller (For 5Th Gear)NEEDLE ROLLER (FOR 5TH GEAR) [03.2012 - 12.2012] XZU282 ＊１５８ |
90364-48011 |
US $33.49 |
||
|
33336A
|
33336A
90364-48012 Bearing, Needle Roller (For 5Th Gear)NEEDLE ROLLER (FOR 5TH GEAR) [03.2012 - 12.2012] XZU282 ＊１５９ |
90364-48012 |
US $33.49 |
||
|
33341A
|
33341A
33341-37020 Washer, 2Nd Gear Thrust[03.2012 - 12.2012] XZU282 |
33341-37020 |
from US $8.04 |
||
|
33342A
|
33342A
90250-04056 Pin, Straight (For Gear Thrust Washer)[03.2012 - 12.2012] XZU282 |
90250-04056 |
from US $0.67 |
||
|
33342B
|
33342B
90520-45021 Ring, Shaft Snap (For Gear Thrust Washer)[03.2012 - 12.2012] XZU282 厚さ＝２．４０−２．４５，マーク １ |
90520-45021 |
from US $1.05 |
||
|
33342B
|
33342B
90520-45022 Ring, Shaft Snap (For Gear Thrust Washer)[03.2012 - 12.2012] XZU282 厚さ＝２．４５−２．５０，マーク ２ |
90520-45022 |
US $1.60 |
||
|
33342B
|
33342B
90520-45023 Ring, Shaft Snap (For Gear Thrust Washer)[03.2012 - 12.2012] XZU282 厚さ＝２．５０−２．５５，マーク ３ |
90520-45023 |
from US $1.60 |
||
|
33342B
|
33342B
90520-45024 Ring, Shaft Snap (For Gear Thrust Washer)[03.2012 - 12.2012] XZU282 厚さ＝２．５５−２．６０，マーク ４ |
90520-45024 |
US $1.60 |
||
|
33342B
|
33342B
90520-45025 Ring, Shaft Snap (For Gear Thrust Washer)[03.2012 - 12.2012] XZU282 厚さ＝２．６０−２．６５，マーク ５ |
90520-45025 |
from US $1.60 |
||
|
33342B
|
33342B
90520-45026 Ring, Shaft Snap (For Gear Thrust Washer)[03.2012 - 12.2012] XZU282 厚さ＝２．６５−２．７０，マーク ６ |
90520-45026 |
from US $1.60 |
||
|
33342C
|
33342C
33342-37010 Washer, 3Rd Gear Thrust[03.2012 - 12.2012] XZU282 |
33342-37010 |
from US $11.88 |
||
|
33346B
|
33346B
33346-37010 Washer, 5Th Gear Thrust[03.2012 - 12.2012] XZU282 |
33346-37010 |
US $7.57 |
||
|
33361
|
33361
33361-37060 Hub, Transmission Clutch, No.1[03.2012 - 12.2012] XZU282 |
33361-37060 |
from US $79.13 |
||
|
33361B
|
33361B
90520-40013 Ring, Shaft Snap (For Clutch Hub No.1)[03.2012 - 12.2012] XZU282 厚さ＝２．４０−２．４５，マーク Ａ |
90520-40013 |
from US $1.05 |
||
|
33361B
|
33361B
90520-40014 Ring, Shaft Snap (For Clutch Hub No.1)[03.2012 - 12.2012] XZU282 厚さ＝２．４５−２．５０，マーク Ｂ |
90520-40014 |
US $1.60 |
||
|
33361B
|
33361B
90520-40015 Ring, Shaft Snap (For Clutch Hub No.1)[03.2012 - 12.2012] XZU282 厚さ＝２．５０−２．５５，マーク Ｃ |
90520-40015 |
US $1.60 |
||
|
33361B
|
33361B
90520-40016 Ring, Shaft Snap (For Clutch Hub No.1)[03.2012 - 12.2012] XZU282 厚さ＝２．５５−２．６０，マーク Ｄ |
90520-40016 |
US $1.60 |
||
|
33361B
|
33361B
90520-40017 Ring, Shaft Snap (For Clutch Hub No.1)[03.2012 - 12.2012] XZU282 厚さ＝２．６０−２．６５，マーク Ｅ |
90520-40017 |
US $1.60 |
||
|
33361B
|
33361B
90520-40018 Ring, Shaft Snap (For Clutch Hub No.1)[03.2012 - 12.2012] XZU282 厚さ＝２．６５−２．７０，マーク Ｆ |
90520-40018 |
US $1.60 |
||
|
33362
|
33362
33362-37030 Hub, Transmission Clutch, No.2[03.2012 - 12.2012] XZU282 |
33362-37030 |
from US $68.02 |
||
|
33362A
|
33362A
90520-50010 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[03.2012 - 12.2012] XZU282 厚さ＝２．４０−２．４５，マーク Ａ |
90520-50010 |
from US $1.05 |
||
|
33362A
|
33362A
90520-50011 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[03.2012 - 12.2012] XZU282 厚さ＝２．４５−２．５０，マーク Ｂ |
90520-50011 |
US $1.60 |
||
|
33362A
|
33362A
90520-50012 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[03.2012 - 12.2012] XZU282 厚さ＝２．５０−２．５５，マーク Ｃ |
90520-50012 |
from US $1.60 |
||
|
33362A
|
33362A
90520-50013 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[03.2012 - 12.2012] XZU282 厚さ＝２．５５−２．６０，マーク Ｄ |
90520-50013 |
US $1.60 |
||
|
33362A
|
33362A
90520-50014 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[03.2012 - 12.2012] XZU282 厚さ＝２．６０−２．６５，マーク Ｅ |
90520-50014 |
from US $1.60 |
||
|
33362A
|
33362A
90520-50015 Ring, Shaft Snap (For Clutch Hub No.2 Setting)[03.2012 - 12.2012] XZU282 厚さ＝２．６５−２．７０，マーク Ｆ |
90520-50015 |
US $1.60 |
||
|
33363
|
33363
33363-37060 Sleeve, Transmission Hub, No.1[03.2012 - 12.2012] XZU282 |
33363-37060 |
from US $78.17 |
||
|
33364
|
33364
33364-37051 Sleeve, Transmission Hub, No.2TRANSMISSION HUB, NO.2 [03.2012 - 09.2012] XZU282 |
33364-37051 |
US $94.64 |
||
| replacement | |||||
|
33364
|
33364
33364-37052 Sleeve, Transmission Hub, No.2[03.2012 - 09.2012] XZU282 |
33364-37052 |
from US $86.30 |
||
|
33364
|
33364
33364-37052 Sleeve, Transmission Hub, No.2[09.2012 - 12.2012] XZU282 |
33364-37052 |
from US $86.30 |
||
|
33365
|
33365
33365-37050 Key, Synchromesh Shifting, No.1[03.2012 - 12.2012] XZU282 |
33365-37050 |
from US $2.74 |
||
|
33368G
|
33368G
33369-37020 Ring, Synchronizer (For 3Rd Gear)SYNCHRONIZER (FOR 3RD GEAR) [03.2012 - 12.2012] XZU282 |
33369-37020 |
from US $33.48 |
||
|
33368H
|
33368H
33381-37050 Ring, Synchronizer (For 4Th Gear)SYNCHRONIZER (FOR 4TH GEAR) [03.2012 - 09.2012] XZU282 ＴＹＰＥ Ａ：イラスト参照 |
33381-37050 |
US $52.85 |
||
| replacement | |||||
|
33368H
|
33368H
33381-37051 Ring, Synchronizer (For 4Th Gear)[03.2012 - 09.2012] XZU282 ＴＹＰＥ Ａ：イラスト参照 |
33381-37051 |
from US $32.43 |
||
|
33368H
|
33368H
33381-37051 Ring, Synchronizer (For 4Th Gear)[09.2012 - 12.2012] XZU282 ＴＹＰＥ Ｂ：イラスト参照 |
33381-37051 |
from US $32.43 |
||
|
33368J
|
33368J
33396-37020 Ring, Synchronizer (For 5Th Gear)SYNCHRONIZER (FOR 5TH GEAR) [03.2012 - 12.2012] XZU282 |
33396-37020 |
US $43.97 |
||
| replacement | |||||
|
33368J
|
33368J
33396-36010 Ring, Synchronizer (For 5Th Gear)[03.2012 - 12.2012] XZU282 |
33396-36010 |
from US $31.22 |
||
|
33371
|
33371
33371-37040 Spring, Synchromesh Shifting Key, No.1[03.2012 - 12.2012] XZU282 |
33371-37040 |
from US $3.86 |
||
|
33387A
|
33387A
33387-37030 Ring, Reverse SynchronizerREVERSE SYNCHRONIZER [03.2012 - 12.2012] XZU282 |
33387-37030 |
from US $31.75 |
||
|
33393
|
33393
33393-37050 Hub, Transmission Clutch, No.3[03.2012 - 09.2012] XZU282 ＰＮＣ ３３３６８Ｈ＝ＴＹＰＥ Ａ |
33393-37050 |
US $84.45 |
||
| replacement | |||||
|
33393
|
33393
33393-37051 Hub, Transmission Clutch, No.3[03.2012 - 09.2012] XZU282 ＰＮＣ ３３３６８Ｈ＝ＴＹＰＥ Ａ |
33393-37051 |
from US $79.13 |
||
|
33393
|
33393
33393-37051 Hub, Transmission Clutch, No.3[09.2012 - 12.2012] XZU282 ＰＮＣ ３３３６８Ｈ＝ＴＹＰＥ Ｂ |
33393-37051 |
from US $79.13 |
||
|
33393A
|
33393A
90520-39032 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[03.2012 - 12.2012] XZU282 厚さ＝２．６０，マーク Ａ |
90520-39032 |
from US $0.79 |
||
|
33393A
|
33393A
90520-39033 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[03.2012 - 12.2012] XZU282 厚さ＝２．６５，マーク Ｂ |
90520-39033 |
US $0.79 |
||
|
33393A
|
33393A
90520-39034 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[03.2012 - 12.2012] XZU282 厚さ＝２．７０，マーク Ｃ |
90520-39034 |
US $1.10 |
||
|
33393A
|
33393A
90520-39035 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[03.2012 - 12.2012] XZU282 厚さ＝２．７５，マーク Ｄ |
90520-39035 |
US $0.79 |
||
|
33393A
|
33393A
90520-39036 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[03.2012 - 12.2012] XZU282 厚さ＝２．８０，マーク Ｅ |
90520-39036 |
US $0.79 |
||
|
33393A
|
33393A
90520-39037 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[03.2012 - 12.2012] XZU282 厚さ＝２．８５，マーク Ｆ |
90520-39037 |
US $1.16 |
||
|
33394
|
33394
33394-37020 Key, Synchromesh Shifting, No.3[03.2012 - 12.2012] XZU282 |
33394-37020 |
US $2.91 |
||
| replacement | |||||
|
33394
|
33394
33394-36030 Key, Synchromesh Shifting, No.3[03.2012 - 12.2012] XZU282 |
33394-36030 |
from US $2.58 |
||
|
33395
|
33395
33395-37030 Sleeve, Transmission Hub, No.3[03.2012 - 12.2012] XZU282 |
33395-37030 |
US $69.89 |
||
| replacement | |||||
|
33395
|
33395
33395-36050 Sleeve, Transmission Hub, No.3[03.2012 - 12.2012] XZU282 |
33395-36050 |
from US $77.52 |
||
|
33402A
|
33402A
90364-28010 Bush Or Bearing (For Reverse Idler Gear)[03.2012 - 12.2012] XZU282 |
90364-28010 |
from US $18 |
||
|
33411A
|
33411A
90365-38006 Bearing Or Roller(For Counter Gear Front)[03.2012 - 12.2012] XZU282 |
90365-38006 |
from US $71.28 |
||
|
33411H
|
33411H
90363-40075 Bearing Or Roller(For Counter Gear Rear)[03.2012 - 12.2012] XZU282 |
90363-40075 |
from US $90.54 |
||
|
33411Q
|
33411Q
90520-34018 Ring, Shaft Snap[03.2012 - 12.2012] XZU282 厚さ＝２．４０−２．４５，マーク Ａ |
90520-34018 |
from US $0.87 |
||
|
33411Q
|
33411Q
90520-34019 Ring, Shaft Snap[03.2012 - 12.2012] XZU282 厚さ＝２．４５−２．５０，マーク Ｂ |
90520-34019 |
from US $1.50 |
||
|
33411Q
|
33411Q
90520-34020 Ring, Shaft Snap[03.2012 - 12.2012] XZU282 厚さ＝２．５０−２．５５，マーク Ｃ |
90520-34020 |
from US $0.87 |
||
|
33411Q
|
33411Q
90520-34021 Ring, Shaft Snap[03.2012 - 12.2012] XZU282 厚さ＝２．５５−２．６０，マーク Ｄ |
90520-34021 |
US $0.87 |
||
|
33411Q
|
33411Q
90520-34022 Ring, Shaft Snap[03.2012 - 12.2012] XZU282 厚さ＝２．６０−２．６５，マーク Ｅ |
90520-34022 |
US $0.87 |
||
|
33411Q
|
33411Q
90520-34023 Ring, Shaft Snap[03.2012 - 12.2012] XZU282 厚さ＝２．６５−２．７０，マーク Ｆ |
90520-34023 |
US $0.87 |
||
|
33421
|
33421
33421-37131 Gear, Counter[03.2012 - 12.2012] XZU282 |
33421-37131 |
US $344.20 |
||
|
33421D
|
33421D
90179-36007 Nut(For Counter Gear Rear)[03.2012 - 12.2012] XZU282 |
90179-36007 |
from US $1.48 |
||
|
33451
|
33451
33451-37030 Shaft, Reverse Idler Gear[03.2012 - 12.2012] XZU282 |
33451-37030 |
from US $31.89 |
||
|
33451H
|
33451H
90105-10530 Bolt (For Reverse Idler Gear Shaft)[03.2012 - 12.2012] XZU282 |
90105-10530 |
US $2.04 |
||
|
33451J
|
33451J
90430-10021 Gasket (For Reverse Idler Gear Shaft)[03.2012 - 12.2012] XZU282 |
90430-10021 |
US $0.61 |
||
|
33461
|
33461
33461-37040 Gear, Reverse Idler[03.2012 - 12.2012] XZU282 |
33461-37040 |
from US $120.85 |
||
|
33462
|
33462
33462-37010 Washer, Reverse Idler Thrust[03.2012 - 12.2012] XZU282 |
33462-37010 |
US $4.12 |
||
|
33481
|
33481
33481-37070 Gear, Speedometer Drive (Mtm)[03.2012 - 12.2012] XZU282 歯数＝７，マーク ７Ｘ２０−２２ |
33481-37070 |
US $27.38 |
||
|
33481A
|
33481A
90360-05012 Ball, Reverse Shift Restrict[03.2012 - 12.2012] XZU282 |
90360-05012 |
from US $0.84 |
||
|
9017952001
|
9017952001
90179-52001 NUT |
90179-52001 |
from US $1.46 |
||
