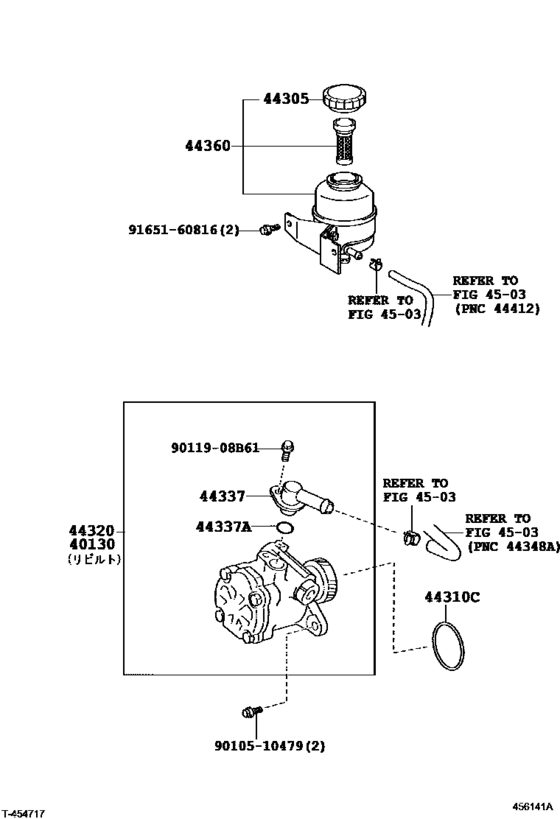

Vane Pump & Reservoir (Power Steering) ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40130
|
40130
40130-37220 Pump Assy,vane Rebuilt[03.2012 -] XZU282 |
40130-37220 |
US $643.55 |
||
|
44305
|
44305
44305-12040 Cap Sub-Assy, Vane Pump Oil Reservoir[03.2012 -] XZU282 |
44305-12040 |
from US $21.22 |
||
|
44310C
|
44310C
90301-60002 Ring, O(For Vane Pump)[03.2012 -] XZU282 |
90301-60002 |
from US $6.69 |
||
|
44320
|
44320
44310-37220 Pump Assy, Vane[03.2012 - 12.2012] XZU282 |
44310-37220 |
US $1,168.88 |
||
|
44337
|
44337
44337-37230 Union, Power Steering Suction Port[03.2012 -] XZU282 |
44337-37230 |
US $25.63 |
||
|
44337A
|
44337A
90301-15025 Ring, O(For Power Steering Suction Port)[03.2012 -] XZU282 |
90301-15025 |
from US $2.13 |
||
|
44360
|
44360
44360-37200 Reservoir Assy, Vane Pump Oil[03.2012 - 12.2012] XZU282 |
44360-37200 |
US $163.20 |
||
|
9011908B61
|
9011908B61
90119-08B61 New Genuine Part |
90119-08B61 |
US $0.87 |
||
|
9010510479
|
9010510479
90105-10479 New Genuine Part |
90105-10479 |
US $1.60 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
