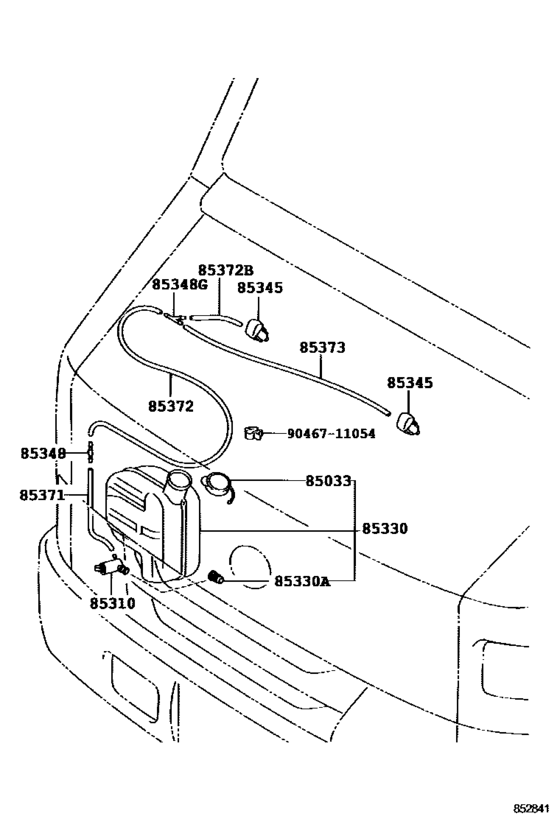

Windshield Washer ([03.2012 - ] (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85033-36120 Cap Assy, Windshield Washer[03.2012 -] XZU282 |
85033-36120 |
US $0.55 |
||
|
85310
|
85310
85330-25050
Motor And Pump Assy, Windshield Washer
[03.2012 -] XZU282 |
85330-25050 |
— | ||
|
85330
|
85330
85330-25040
Jar Assy, Windshield Washer
[03.2012 -] XZU282 |
85330-25040 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[03.2012 -] XZU282 |
90099-32089 |
from US $0.98 |
||
| replacement | |||||
|
85330A
|
85330A
90099320891
Grommet
[03.2012 -] XZU282 |
90099320891 |
— | ||
|
85345
|
85345
85381-12050 Nozzle Sub-Assy, Washer[03.2012 -] XZU282 |
85381-12050 |
from US $16.19 |
||
| replacement | |||||
|
85345
|
85345
85381200201
Nozzle Fr Washer Rh
[03.2012 -] XZU282 |
85381200201 |
— | ||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[03.2012 -] XZU282 |
85349-89122 |
from US $1.25 |
||
|
85348G
|
85348G
85348-12250 Joint, Windshield Washer Hose, No.1[03.2012 -] XZU282 |
85348-12250 |
from US $0.55 |
||
|
85371
|
85371
90446-06013 Hose, Windshield Washer (From Motor To Joint)[03.2012 -] XZU282 ＊Ｈ，Ｌ＝２００ |
90446-06013 |
from US $0.70 |
||
|
85372
|
85372
90446-06013 Hose, Windshield Washer (From Motor To Joint)[03.2012 -] XZU282 ＊Ｈ，Ｌ＝６１０ |
90446-06013 |
from US $0.70 |
||
|
85372B
|
85372B
90446-06013 Hose, Windshield Washer (From Motor To Joint)[03.2012 -] XZU282 ＊Ｈ，Ｌ＝６０ |
90446-06013 |
from US $0.70 |
||
|
85373
|
85373
90446-06013 Hose, Windshield Washer (From Motor To Joint)[03.2012 -] XZU282 ＊Ｈ，L＝５８０ |
90446-06013 |
from US $0.70 |
||
|
9046711054
|
9046711054
90467-11054 New Genuine Part |
90467-11054 |
US $1.60 |
||
