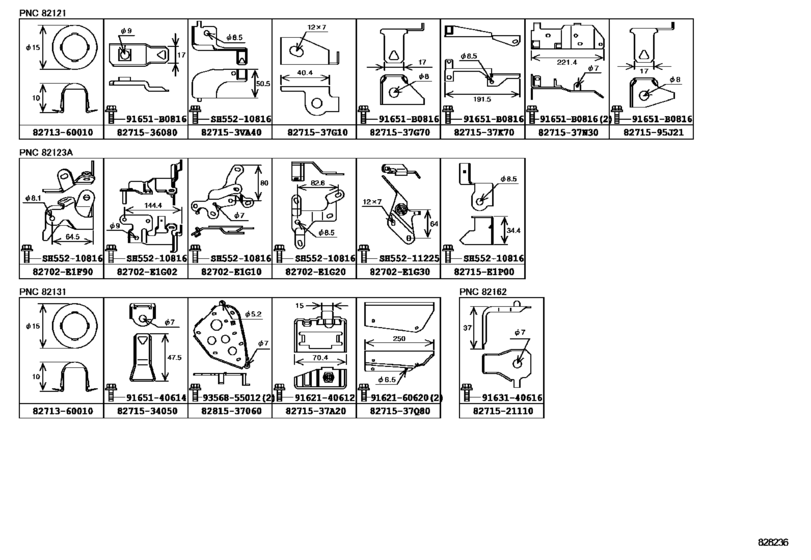

Wiring & Clamp ([03.2012 - ] ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ (1203- )) Diagram Toyota QUICK DELIVERY/ URBAN SUPPORTER
- Year
- 2012 - 2012
- Sales region
- Japan
- Frame
- XZU282
- grade
- DLX
- ENGINE
- N04C
- TRANSMISSION
- MTM
- Model
- QUICK DELIVERY 200
- From
- 03.2012
- To
- 12.2012
- Gear Shift Type
- 5H
- Seating Capacity
- 02S
- Vehicle Model
- QUICK DELIVERY 200
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82702E1F90
|
82702E1F90
82702-E1F90 Bracket Sub-assy, Wiring Harness |
82702-E1F90 |
US $12.67 |
||
|
82702E1G02
|
82702E1G02
82702-E1G02 Bracket Sub-assy, Wiring Harness |
82702-E1G02 |
US $27.37 |
||
|
82702E1G10
|
82702E1G10
82702-E1G10 Bracket Sub-assy, Wiring Harness |
82702-E1G10 |
US $14.71 |
||
|
82702E1G20
|
82702E1G20
82702-E1G20 Bracket Sub-assy, Wiring Harness |
82702-E1G20 |
US $11.65 |
||
|
82702E1G30
|
82702E1G30
82702-E1G30 Bracket Sub-assy, Wiring Harness |
82702-E1G30 |
US $9.46 |
||
|
82715E1P00
|
82715E1P00
82715-E1P00 Bracket,wiring Harness Clamp |
82715-E1P00 |
US $4.95 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.87 |
||
|
827153VA40
|
827153VA40
82715-3VA40 Bracket,wiring Harness Clamp |
82715-3VA40 |
US $8.74 |
||
| replacement | |||||
|
827153VA40
|
827153VA40
82702-37740
Bracket Sub-Assy, Wiring Harness
|
82702-37740 |
— | ||
|
8271537A20
|
8271537A20
82715-37A20 Bracket,wiring Harness Clamp |
82715-37A20 |
US $9.61 |
||
|
8271537G10
|
8271537G10
82715-37G10 Bracket,wiring Harness Clamp |
82715-37G10 |
US $3.93 |
||
|
8271537G70
|
8271537G70
82715-37G70 Bracket,wiring Harness Clamp |
82715-37G70 |
US $5.10 |
||
|
8271537K70
|
8271537K70
82715-37K70 Bracket,wiring Harness Clamp |
82715-37K70 |
US $11.07 |
||
|
8271537N30
|
8271537N30
82715-37N30 Bracket,wiring Harness Clamp |
82715-37N30 |
US $17.76 |
||
|
8271537Q80
|
8271537Q80
82715-37Q80 Bracket,wiring Harness Clamp |
82715-37Q80 |
US $32.61 |
||
|
8271595J21
|
8271595J21
82715-95J21
Bracket,wiring Harness Clamp
|
82715-95J21 |
— | ||
|
8271360010
|
8271360010
82713-60010 New Genuine Part |
82713-60010 |
US $1.60 |
||
|
8271521110
|
8271521110
82715-21110 Bracket,wiring Harness Clamp |
82715-21110 |
US $3.06 |
||
|
8271534050
|
8271534050
82715-34050
Bracket,wiring Harness Clamp
|
82715-34050 |
— | ||
|
8271536080
|
8271536080
82715-36080
Bracket,wiring Harness Clamp
|
82715-36080 |
— | ||
|
8281537060
|
8281537060
82815-37060 Cover, Wiring Harness Protector |
82815-37060 |
US $30.87 |
||
|
9162140612
|
9162140612
91621-40612 BOLTWWASHER |
91621-40612 |
from US $0.72 |
||
|
9162160620
|
9162160620
91621-60620 Bolt, W/washer(For Repair Actuator Set) |
91621-60620 |
US $0.69 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $3.05 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
SH55210816
|
SH55210816
SH552-10816 Bolt(For Cylinder Head Cover) |
SH552-10816 |
US $6.27 |
||
|
SH55211225
|
SH55211225
SH552-11225
New Genuine Part
|
SH552-11225 |
— | ||
