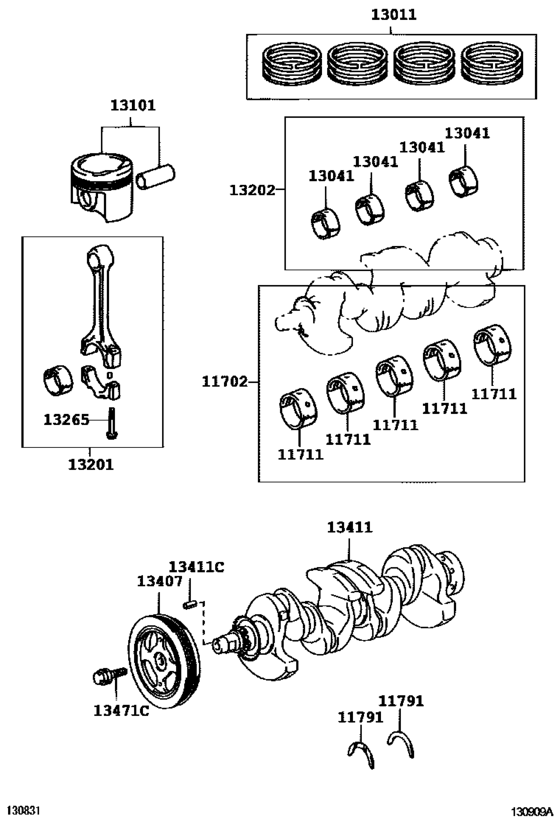

Crankshaft & Piston ([09.2005 - ] (0509- )1NZFE) Diagram Toyota RACTIS
- Year
- 2005 - 2010
- Sales region
- Japan
- Frame
- NCP105
- grade
- G
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 09.2005
- To
- 08.2010
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-21031
Bearing Set, Crankshaft
[09.2005 - 12.2007] 1NZFE..NCP10# Ｕ／Ｓ ０．２５ |
11704-21031 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[09.2005 - 12.2007] 1NZFE..NCP10# Ｕ／Ｓ ０．２５ |
11704-21032 |
from US $104.77 |
||
|
11711
|
11711
11701-21031-01
Bearing, Crankshaft
[09.2005 - 12.2007] 1NZFE..NCP10# MARK1,修理書参照 |
11701-21031-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[09.2005 - 12.2007] 1NZFE..NCP10# MARK1,修理書参照 |
11701-21032-01 |
from US $17.22 |
||
|
11711
|
11711
11701-21031-02
Bearing, Crankshaft
[09.2005 - 12.2007] 1NZFE..NCP10# MARK2,修理書参照 |
11701-21031-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[09.2005 - 12.2007] 1NZFE..NCP10# MARK2,修理書参照 |
11701-21032-02 |
from US $17.55 |
||
|
11711
|
11711
11701-21031-03
Bearing, Crankshaft
[09.2005 - 12.2007] 1NZFE..NCP10# MARK3,修理書参照 |
11701-21031-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[09.2005 - 12.2007] 1NZFE..NCP10# MARK3,修理書参照 |
11701-21032-03 |
from US $17.71 |
||
|
11711
|
11711
11701-21031-04
Bearing, Crankshaft
[09.2005 - 12.2007] 1NZFE..NCP10# MARK4,修理書参照 |
11701-21031-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[09.2005 - 12.2007] 1NZFE..NCP10# MARK4,修理書参照 |
11701-21032-04 |
US $47.27 |
||
|
11791
|
11791
11791-22020 Washer, Crankshaft Thrust, Upper[09.2005 - 12.2007] 1NZFE..NCP10# ＳＴＤ |
11791-22020 |
from US $22.62 |
||
|
11791
|
11791
11792-22020 Washer, Crankshaft Thrust, Upper[09.2005 - 12.2007] 1NZFE..NCP10# Ｏ／Ｓ ０．１２５ |
11792-22020 |
US $25.92 |
||
|
11791
|
11791
11793-22020 Washer, Crankshaft Thrust, Upper[09.2005 - 12.2007] 1NZFE..NCP10# Ｏ／Ｓ ０．２５ |
11793-22020 |
US $25.92 |
||
|
13011
|
13011
13011-21041 Ring Set, Piston[09.2005 - 12.2007] 1NZFE..NCP105 ＳＴＤ |
13011-21041 |
US $187.82 |
||
| replacement | |||||
|
13011
|
13011
13011-21120 Ring Set, Piston[09.2005 - 12.2007] 1NZFE..NCP105 ＳＴＤ |
13011-21120 |
from US $106.70 |
||
|
13041
|
13041
13041-21022-01
Bearing, Connecting Rod
[09.2005 - 12.2007] 1NZFE..NCP10# MARK1,修理書参照 |
13041-21022-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-21033-01 Bearing, Connecting Rod[09.2005 - 12.2007] 1NZFE..NCP10# MARK1,修理書参照 |
13041-21033-01 |
US $21.13 |
||
|
13041
|
13041
13041-21022-02
Bearing, Connecting Rod
[09.2005 - 12.2007] 1NZFE..NCP10# MARK2,修理書参照 |
13041-21022-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-21033-02 Bearing, Connecting Rod[09.2005 - 12.2007] 1NZFE..NCP10# MARK2,修理書参照 |
13041-21033-02 |
US $21.13 |
||
|
13041
|
13041
13041-21022-03
Bearing, Connecting Rod
[09.2005 - 12.2007] 1NZFE..NCP10# MARK3,修理書参照 |
13041-21022-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-21033-03 Bearing, Connecting Rod[09.2005 - 12.2007] 1NZFE..NCP10# MARK3,修理書参照 |
13041-21033-03 |
US $21.13 |
||
|
13101
|
13101
13101-21070
Piston Sub-Assy, W/pin
[09.2005 - 12.2007] 1NZFE..NCP105 ＳＴＤ |
13101-21070 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-21160 Piston Sub-Assy, W/pin[09.2005 - 12.2007] 1NZFE..NCP105 ＳＴＤ |
13101-21160 |
from US $48.40 |
||
|
13201
|
13201
13201-29735
Rod Sub-Assy, Connecting
[09.2005 - 12.2007] 1NZFE..NCP10# |
13201-29735 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29737
Rod Sub-Assy, Connecting
[09.2005 - 12.2007] 1NZFE..NCP10# |
13201-29737 |
— | ||
|
13202
|
13202
13204-21022 Bearing Set, Connecting Rod[09.2005 - 12.2007] 1NZFE..NCP10# Ｕ／Ｓ ０．２５ |
13204-21022 |
US $54.95 |
||
| replacement | |||||
|
13202
|
13202
13204-21033 Bearing Set, Connecting Rod[09.2005 - 12.2007] 1NZFE..NCP10# Ｕ／Ｓ ０．２５ |
13204-21033 |
US $79.32 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[09.2005 - 12.2007] 1NZFE..NCP10# |
13265-21020 |
from US $3.35 |
||
|
13407
|
13407
13407-21031 Damper Sub-Assy, Crankshaft[09.2005 - 12.2007] 1NZFE..NCP10# |
13407-21031 |
US $154.34 |
||
| replacement | |||||
|
13407
|
13407
13407-21032 Damper Sub-Assy, Crankshaft[09.2005 - 12.2007] 1NZFE..NCP10# |
13407-21032 |
from US $128.76 |
||
|
13411
|
13411
13401-21020 Crankshaft[09.2005 - 12.2007] 1NZFE..NCP10# |
13401-21020 |
US $701.79 |
||
|
13411C
|
13411C
90254-03025
Pin, Straight(For Crankshaft)
[09.2005 - 12.2007] 1NZFE..NCP10# |
90254-03025 |
— | ||
| replacement | |||||
|
13411C
|
13411C
90250-03095 Pin, Straight(For Crankshaft)[09.2005 - 12.2007] 1NZFE..NCP10# |
90250-03095 |
from US $0.76 |
||
|
13471C
|
13471C
90119-12345 Bolt(For Crankshaft Pulley Set)[09.2005 - 12.2007] 1NZFE..NCP10# |
90119-12345 |
from US $2.79 |
||
