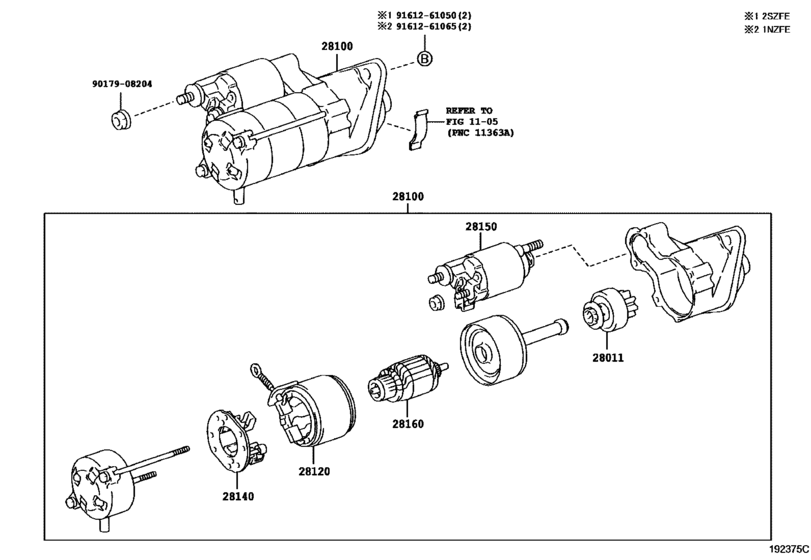

Starter ([09.2005 - ] 12V 0.8KW,1.0KW (0509- )) Diagram Toyota RACTIS
- Year
- 2005 - 2010
- Sales region
- Japan
- Frame
- NCP105
- grade
- G
- ENGINE
- 1NZFE
- TRANSMISSION
- ATM
- From
- 09.2005
- To
- 08.2010
- Gear Shift Type
- 4FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[09.2005 - 12.2007] 1NZFE..NCP10# |
28011-70020 |
US $43.51 |
||
|
28100
|
28100
28100-21020
Starter Assy
[09.2005 - 12.2007] 1NZFE..NCP10# １２Ｖ ０．８ＫＷ |
28100-21020 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-21022 Starter Assy[09.2005 - 12.2007] 1NZFE..NCP10# １２Ｖ ０．８ＫＷ |
28100-21022 |
from US $362.68 |
||
|
28100
|
28100
28100-21021
Starter Assy
[07.2009 - 08.2010] 1NZFE..NCP10# １２Ｖ ０．８ＫＷ |
28100-21021 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-21022 Starter Assy[07.2009 - 08.2010] 1NZFE..NCP10# １２Ｖ ０．８ＫＷ |
28100-21022 |
from US $362.68 |
||
|
28100
|
28100
28100-21030 Starter Assy[09.2005 - 12.2007] 1NZFE..NCP10# １２Ｖ １．０ＫＷ,寒冷地仕様 |
28100-21030 |
US $908.54 |
||
| replacement | |||||
|
28100
|
28100
28100-21032 Starter Assy[09.2005 - 12.2007] 1NZFE..NCP10# １２Ｖ １．０ＫＷ,寒冷地仕様 |
28100-21032 |
US $687.23 |
||
|
28100
|
28100
28100-21031 Starter Assy[07.2009 - 08.2010] 1NZFE..NCP10# １２Ｖ １．０ＫＷ,寒冷地仕様 |
28100-21031 |
US $757.12 |
||
| replacement | |||||
|
28100
|
28100
28100-21032 Starter Assy[07.2009 - 08.2010] 1NZFE..NCP10# １２Ｖ １．０ＫＷ,寒冷地仕様 |
28100-21032 |
US $687.23 |
||
|
28120
|
28120
28120-40130
Yoke Assy, Starter
[07.2009 -] 1NZFE,2SZFE..NCP10#,SCP100 寒冷地仕様 |
28120-40130 |
— | ||
|
28120
|
28120
28120-47120
Yoke Assy, Starter
[07.2009 -] 1NZFE,2SZFE..NCP10#,SCP100 |
28120-47120 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[09.2005 - 12.2007] 1NZFE,2SZFE..NCP10#,SCP100 |
28120-70020 |
from US $98.61 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[09.2005 - 12.2007] 1NZFE,2SZFE..NCP10#,SCP100 寒冷地仕様 |
28120-70050 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[09.2005 - 12.2007] 1NZFE,2SZFE..NCP10#,SCP100 |
28140-70020 |
from US $22.19 |
||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[09.2005 - 05.2007] 1NZFE,2SZFE..NCP10#,SCP100 |
28150-16160 |
US $125.22 |
||
|
28150
|
28150
28150-21020 Switch Assy, Magnet Starter[06.2007 - 12.2007] 1NZFE,2SZFE..NCP10#,SCP100 |
28150-21020 |
US $126.67 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[09.2005 - 12.2007] 1NZFE,2SZFE..NCP10#,SCP100 |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[09.2005 - 12.2007] 1NZFE,2SZFE..NCP10#,SCP100 寒冷地仕様 |
28160-70050 |
US $161.62 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261050
|
9161261050
91612-61050 Bolt(For Transaxle & Engine Setting) |
91612-61050 |
from US $1.33 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
