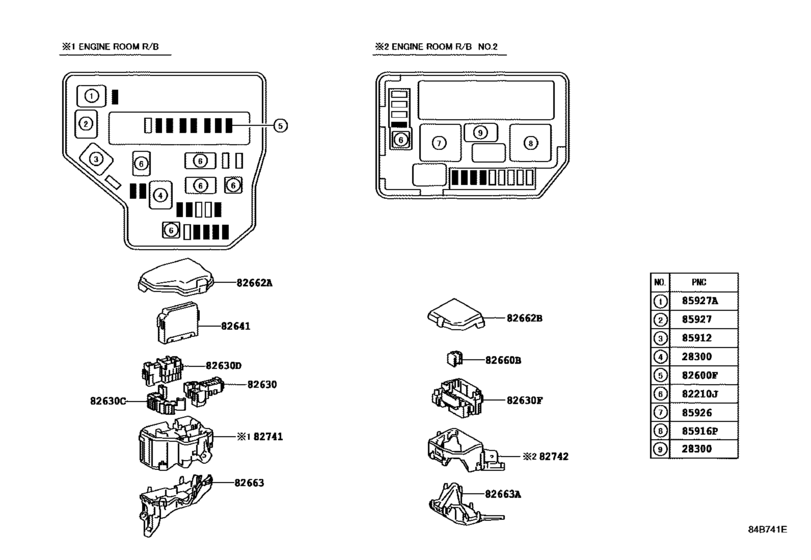

Switch & Relay & Computer ([11.2010 - 05.2014] ENGINE ROOM RELAY BLOCK (1011-1405)) Diagram Toyota RACTIS
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- NCP120
- grade
- LUNA
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- From
- 11.2010
- To
- 07.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[08.2013 - 05.2014] 1NZFE..NCP120 |
28300-21020 |
from US $32.01 |
||
|
28300
|
28300
28300-28010
Relay Assy, Starter
[11.2010 - 05.2013] 1NZFE..NCP120 |
28300-28010 |
— | ||
| replacement | |||||
|
28300
|
28300
28300-21020 Relay Assy, Starter[11.2010 - 05.2013] 1NZFE..NCP120 |
28300-21020 |
from US $32.01 |
||
|
82210J
|
82210J
90982-08294 Fusible Link[11.2010 - 05.2014] NCP120 40A,TERMINAL:FEMALE |
90982-08294 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[11.2010 - 05.2014] NCP120 50A,TERMINAL:FEMALE |
90982-08296 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[11.2010 - 05.2014] NCP120 50A-30A-30A,FEMALE |
90982-08300 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[11.2010 - 08.2012] NCP120..LUNA 80A,TERMINAL:FEMALE |
90982-08305 |
from US $4.95 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[11.2010 - 05.2014] NCP120 30A,TERMINAL:FEMALE |
90982-08306 |
from US $4.95 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 5A,MINI FUSE; NCP120..LUNA 5A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09019 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2010 - 05.2014] NCP120 7.5A,MINI FUSE; NCP120..LUNA 7.5A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09020 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2010 - 05.2014] NCP120 10A,MINI FUSE; NCP120..LUNA 10A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09021 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 15A,MINI FUSE; NCP120..LUNA 15A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09022 |
from US $0.83 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 20A,MINI FUSE; NCP120..LUNA 20A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09023 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 25A,MINI FUSE |
90982-09024 |
from US $0.82 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 30A,MINI FUSE |
90982-09025 |
from US $0.84 |
||
|
82630
|
82630
82631-52010 Holder Assy, Fuse[11.2010 - 05.2014] NCP120 |
82631-52010 |
US $18.93 |
||
|
82630C
|
82630C
82631-52020 Holder Assy, Fuse[11.2010 - 05.2014] NCP120 |
82631-52020 |
US $9.46 |
||
|
82630D
|
82630D
82631-52030 Holder, Fuse[11.2010 - 05.2014] NCP120 |
82631-52030 |
US $24.90 |
||
|
82630F
|
82630F
82631-52040 Holder, Fuse[11.2010 - 05.2014] NCP120 |
82631-52040 |
US $26.44 |
||
|
82641
|
82641
82641-52040 Relay, Integration No.1[08.2012 - 05.2014] NCP120 |
82641-52040 |
US $72.65 |
||
|
82641
|
82641
82641-52050 Relay, Integration No.1[11.2010 - 08.2012] NCP120 |
82641-52050 |
US $72.65 |
||
|
82660B
|
82660B
82660-0H070 Block Assy, Relay[11.2010 - 05.2014] NCP120 |
82660-0H070 |
from US $6.74 |
||
|
82662A
|
82662A
82662-52480 Cover, Relay Block, Upper, No.1[11.2010 - 08.2012] NCP120 |
82662-52480 |
from US $19.07 |
||
|
82662A
|
82662A
82662-52481 Cover, Relay Block, Upper, No.1[08.2012 - 05.2014] NCP120 |
82662-52481 |
US $19.07 |
||
|
82662B
|
82662B
82662-52660
Cover, Relay Block, Upper, No.2
[11.2010 - 10.2011] NCP120 |
82662-52660 |
— | ||
| replacement | |||||
|
82662B
|
82662B
82662-52661 Cover, Relay Block, Upper, No.2[11.2010 - 10.2011] NCP120 |
82662-52661 |
US $16.07 |
||
|
82662B
|
82662B
82662-52661 Cover, Relay Block, Upper, No.2[11.2011 - 05.2014] NCP120 |
82662-52661 |
US $16.07 |
||
|
82662B
|
82662B
82662-52700 Cover, Relay Block, Upper, No.2[11.2010 - 10.2011] NCP120..LUNA HEADLAMP-DISCHARGE |
82662-52700 |
US $16.60 |
||
| replacement | |||||
|
82662B
|
82662B
82662-52701 Cover, Relay Block, Upper, No.2[11.2010 - 10.2011] NCP120..LUNA HEADLAMP-DISCHARGE |
82662-52701 |
US $13.83 |
||
|
82662B
|
82662B
82662-52701 Cover, Relay Block, Upper, No.2[11.2011 - 05.2014] NCP120..LUNA HEADLAMP-DISCHARGE |
82662-52701 |
US $13.83 |
||
|
82662B
|
82662B
82662-52870 Cover, Relay Block, Upper, No.2[05.2014 -] NCP120..LUNA HEAD LAMP-DISCHARGE W(SMOKE) |
82662-52870 |
US $13.83 |
||
|
82662B
|
82662B
82662-52880 Cover, Relay Block, Upper, No.2[05.2014 -] NCP120 |
82662-52880 |
US $13 |
||
|
82663
|
82663
82663-52080 Cover, Relay Block, Lower[11.2010 - 05.2014] NCP120 |
82663-52080 |
US $18.40 |
||
|
82663A
|
82663A
82663-52090 Cover, Relay Block, Lower, No.2[11.2010 - 05.2014] NCP120 |
82663-52090 |
US $13.35 |
||
|
82741
|
82741
82741-12130 Block, Engine Room Relay[08.2012 - 05.2014] NCP120 |
82741-12130 |
US $37.20 |
||
|
82741
|
82741
82741-52070 Block, Engine Room Relay[11.2010 - 08.2012] NCP120 |
82741-52070 |
US $49.50 |
||
|
82742
|
82742
82741-52080 Block, Engine Room Relay, No.2[11.2010 - 05.2014] NCP120 |
82741-52080 |
US $24.88 |
||
|
85912
|
85912
90987-02027 Relay[11.2010 - 05.2014] NCP120 |
90987-02027 |
from US $35.12 |
||
|
85916P
|
85916P
90987-02025 Relay[11.2010 - 05.2014] NCP120 |
90987-02025 |
from US $35.12 |
||
|
85926
|
85926
90987-04010 Relay Assy (For Heater Blower Motor)[11.2010 - 05.2014] NCP120 |
90987-04010 |
from US $33.70 |
||
|
85927
|
85927
90987-02027 Relay[11.2010 - 05.2014] NCP120 |
90987-02027 |
from US $35.12 |
||
|
85927A
|
85927A
90987-04004 Relay, Starter Cut[11.2010 - 05.2014] NCP120 |
90987-04004 |
from US $33.70 |
||
