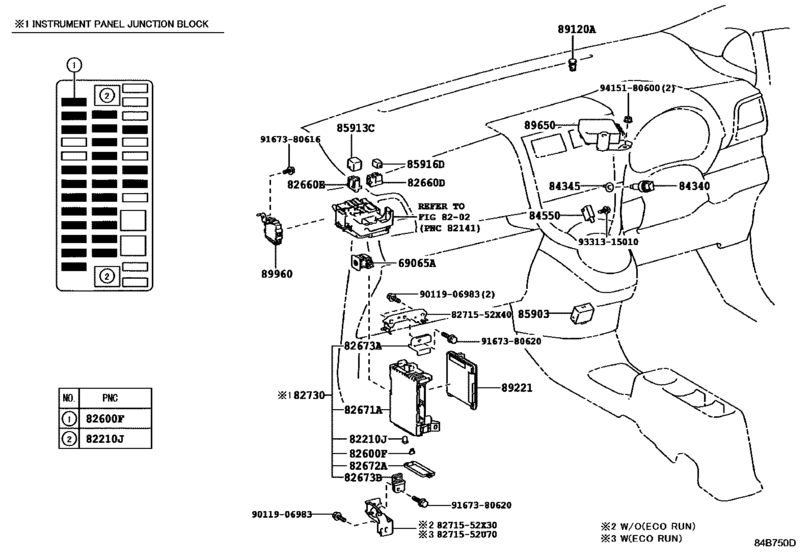

Switch & Relay & Computer ([11.2010 - ] COWL (1011- )) Diagram Toyota RACTIS
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- NCP120
- grade
- LUNA
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- From
- 11.2010
- To
- 07.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210J
|
82210J
90982-08294 Fusible Link[11.2010 - 05.2014] NCP120 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[11.2010 - 05.2014] NCP120 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08300 Fusible Link[11.2010 - 05.2014] NCP120 50A-30A-30A,FEMALE |
90982-08300 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08305 Fusible Link[11.2010 - 08.2012] NCP120..LUNA 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[11.2010 - 05.2014] NCP120 30A,TERMINAL:FEMALE |
90982-08306 |
US $6.24 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 5A,MINI FUSE; NCP120..LUNA 5A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[11.2010 - 05.2014] NCP120 7.5A,MINI FUSE; NCP120..LUNA 7.5A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[11.2010 - 05.2014] NCP120 10A,MINI FUSE; NCP120..LUNA 10A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 15A,MINI FUSE; NCP120..LUNA 15A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 20A,MINI FUSE; NCP120..LUNA 20A,MINI FUSE,HEADLAMP-DISCHARGE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[11.2010 - 05.2014] NCP120 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82671A
|
82671A
82732-52190 Block, Junction[11.2010 - 05.2014] NCP120 |
82732-52190 |
US $96.10 |
||
|
82672A
|
82672A
82672-52010 Cover, Junction Block[05.2014 -] NCP120 |
82672-52010 |
US $5.39 |
||
|
82673A
|
82673A
82673-52150 Bracket, Junction Block[11.2010 - 05.2014] NCP120 |
82673-52150 |
US $5.97 |
||
|
82673B
|
82673B
82673-52160 Bracket, Junction Block[11.2010 - 05.2014] NCP120 |
82673-52160 |
US $5.97 |
||
|
82730
|
82730
82730-52L60 Block Assy, Instrument Panel Junction[11.2010 - 05.2014] NCP120 |
82730-52L60 |
US $195.10 |
||
|
84340
|
84340
84340-39015 Switch Assy, Stop Lamp[05.2014 -] NCP120 |
84340-39015 |
from US $24.39 |
||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[11.2010 - 05.2014] NCP120 |
84340-69075 |
from US $28.26 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[11.2010 - 05.2014] NCP120 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[11.2010 - 05.2014] NCP120 |
84550-30080 |
from US $18.39 |
||
|
85903
|
85903
85903-52020 Computer Sub-Assy, Shift Lock Control[11.2010 - 05.2014] NCP120..LUNA |
85903-52020 |
from US $48.03 |
||
|
89120A
|
89120A
89121-52010 Sensor, Automatic Light Control[11.2010 - 05.2014] NCP120..LUNA |
89121-52010 |
US $119.88 |
||
|
89221
|
89221
89220-52040
Computer, Multiplex Network Body
[11.2010 - 03.2011] NCP120..LUNA |
89220-52040 |
— | ||
| replacement | |||||
|
89221
|
89221
89220-52041
Computer, Multiplex Network Body
[11.2010 - 03.2011] NCP120..LUNA |
89220-52041 |
— | ||
|
89221
|
89221
89220-52041
Computer, Multiplex Network Body
[04.2011 - 05.2014] NCP120..LUNA |
89220-52041 |
— | ||
|
89221
|
89221
89220-52800
Computer, Multiplex Network Body
[05.2014 -] NCP120..LUNA |
89220-52800 |
— | ||
|
89650
|
89650
89650-52150 Computer Assy, Power Steering[11.2010 - 01.2012] NCP120 |
89650-52150 |
US $553.28 |
||
| replacement | |||||
|
89650
|
89650
89650-52151 Computer Assy, Power Steering[11.2010 - 01.2012] NCP120 |
89650-52151 |
US $460.10 |
||
|
89650
|
89650
89650-52151 Computer Assy, Power Steering[02.2012 - 05.2014] NCP120 |
89650-52151 |
US $460.10 |
||
|
89650
|
89650
89650-52152 Computer Assy, Power Steering[05.2014 -] NCP120 |
89650-52152 |
US $460.10 |
||
|
89960
|
89960
89960-52410 Computer Assy, Headlamp Leveling[11.2010 - 05.2014] NCP120..LUNA HEADLAMP-DISCHARGE |
89960-52410 |
US $298.48 |
||
|
89960
|
89960
89960-52570 Computer Assy, Headlamp Leveling[05.2014 -] NCP120..LUNA HEAD LAMP-DISCHARGE W(SMOKE) |
89960-52570 |
US $298.48 |
||
|
8271552U70
|
8271552U70
82715-52U70 Bracket,wiring Harness Clamp |
82715-52U70 |
US $12.08 |
||
|
8271552X30
|
8271552X30
82715-52X30 Bracket,wiring Harness Clamp |
82715-52X30 |
US $13.40 |
||
|
8271552X40
|
8271552X40
82715-52X40 Bracket,wiring Harness Clamp |
82715-52X40 |
US $8.44 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $0.96 |
||
|
9331315010
|
9331315010
93313-15010 SCREW |
93313-15010 |
US $1.02 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
