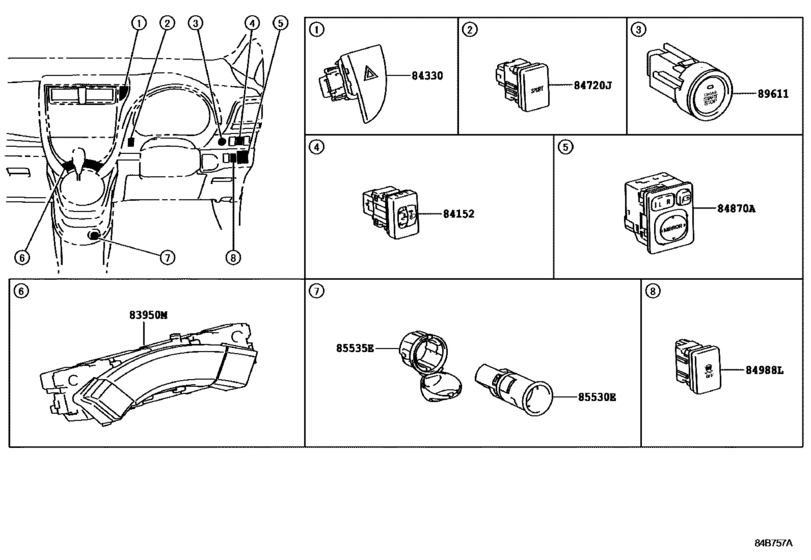

Switch & Relay & Computer ([11.2010 - ] INSTRUMENT PANEL (1011- )) Diagram Toyota RACTIS
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- NCP120
- grade
- LUNA
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- From
- 11.2010
- To
- 07.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83950M
|
83950M
83950-52250 Lamp Assy, Telltale[05.2013 - 05.2014] NCP120 |
83950-52250 |
US $84.45 |
||
|
84152
|
84152
84152-52090 Switch, Headlamp Leveling[11.2010 - 05.2014] NCP120; NCP120..LUNA HEADLAMP-DISCHARGE; NCP120..LUNA HEADLAMP-DISCHARGE W(SMOKE) |
84152-52090 |
US $50.23 |
||
| replacement | |||||
|
84152
|
84152
84152-52091 Switch, Headlamp Leveling[11.2010 - 05.2014] NCP120; NCP120..LUNA HEADLAMP-DISCHARGE; NCP120..LUNA HEADLAMP-DISCHARGE W(SMOKE) |
84152-52091 |
US $45.57 |
||
|
84152
|
84152
84152-52091 Switch, Headlamp Leveling[02.2015 -] NCP120; NCP120..LUNA HEAD LAMP-DISCHARGE W(SMOKE) |
84152-52091 |
US $45.57 |
||
|
84330
|
84330
84332-52060 Switch Assy, Hazard Warning Signal[11.2010 - 05.2014] NCP120 |
84332-52060 |
US $34.36 |
||
| replacement | |||||
|
84330
|
84330
84332-52061 Switch Assy, Hazard Warning Signal[11.2010 - 05.2014] NCP120 |
84332-52061 |
US $34.36 |
||
|
84330
|
84330
84332-52061 Switch Assy, Hazard Warning Signal[02.2015 -] NCP120 |
84332-52061 |
US $34.36 |
||
|
84720J
|
84720J
84720-52100
Switch Assy, Pattern Select
[11.2010 - 05.2014] NCP120 |
84720-52100 |
— | ||
| replacement | |||||
|
84720J
|
84720J
84720-52101 Switch Assy, Pattern Select[11.2010 - 05.2014] NCP120 |
84720-52101 |
US $33.37 |
||
|
84720J
|
84720J
84720-52101 Switch Assy, Pattern Select[01.2015 -] NCP120 |
84720-52101 |
US $33.37 |
||
|
84870A
|
84870A
84870-28020 Switch Assy, Outer Mirror[11.2010 - 05.2014] NCP120 |
84870-28020 |
from US $52.23 |
||
|
84988L
|
84988L
84988-52080 Switch, Vsc Off[05.2013 - 05.2014] NCP120 |
84988-52080 |
US $34.36 |
||
| replacement | |||||
|
84988L
|
84988L
84988-52081 Switch, Vsc Off[05.2013 - 05.2014] NCP120 |
84988-52081 |
US $31.16 |
||
|
84988L
|
84988L
84988-52081 Switch, Vsc Off[01.2015 - 07.2016] NCP120 |
84988-52081 |
US $31.16 |
||
|
85530E
|
85530E
85530-42010 Socket Assy, Power Outlet, No.1[11.2010 - 05.2014] NCP120 |
85530-42010 |
from US $21 |
||
|
85530E
|
85530E
85530-52010 Socket Assy, Power Outlet, No.1[09.2014 -] NCP120 |
85530-52010 |
from US $21 |
||
|
85535E
|
85535E
85535-52051 Cover, Power Outlet Socket, No.1[11.2010 - 05.2014] NCP120 |
85535-52051 |
US $10.73 |
||
|
85535E
|
85535E
85535-52052 Cover, Power Outlet Socket, No.1[09.2014 -] NCP120 |
85535-52052 |
US $3.03 |
||
|
89611
|
89611
89611-52030 Switch, Push Start[11.2010 - 06.2011] NCP120..LUNA |
89611-52030 |
US $163.07 |
||
| replacement | |||||
|
89611
|
89611
89611-52034 Switch, Push Start[11.2010 - 06.2011] NCP120..LUNA |
89611-52034 |
US $110.88 |
||
|
89611
|
89611
89611-52031
Switch, Push Start
[07.2011 - 11.2012] NCP120..LUNA |
89611-52031 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52034 Switch, Push Start[07.2011 - 11.2012] NCP120..LUNA |
89611-52034 |
US $110.88 |
||
|
89611
|
89611
89611-52032
Switch, Push Start
[12.2012 - 05.2014] NCP120..LUNA |
89611-52032 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-52034 Switch, Push Start[12.2012 - 05.2014] NCP120..LUNA |
89611-52034 |
US $110.88 |
||
|
89611
|
89611
89611-52033 Switch, Push Start[05.2015 - 03.2016] NCP120..LUNA |
89611-52033 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-52034 Switch, Push Start[05.2015 - 03.2016] NCP120..LUNA |
89611-52034 |
US $110.88 |
||
|
89611
|
89611
89611-52034 Switch, Push Start[04.2016 -] NCP120..LUNA |
89611-52034 |
US $110.88 |
||
