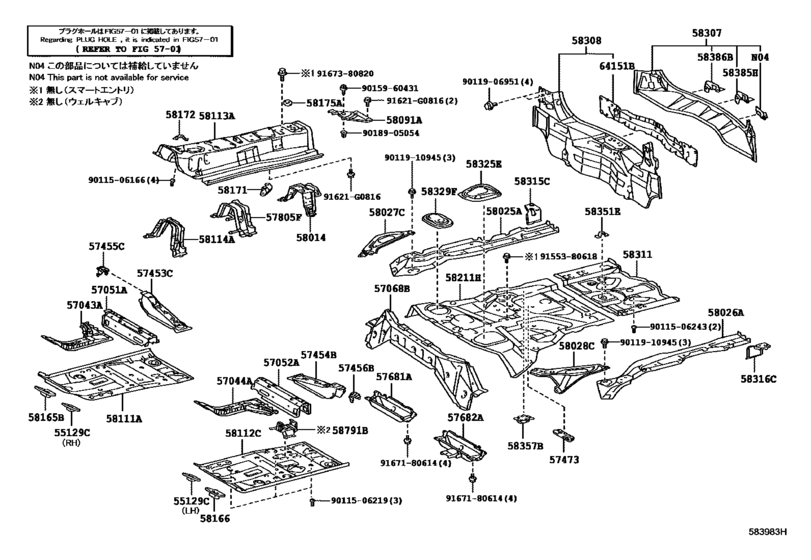

Floor Pan & Lower Back Panel ([11.2010 - ] (1011- )NCP125) Diagram Toyota RACTIS
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NCP125
- grade
- X
- ENGINE
- 1NZFE
- TRANSMISSION
- CVT
- From
- 11.2010
- To
- 07.2016
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129C
|
55129C
55129-52051 Cover, Front Floor HoleDASH PANEL HOLE [11.2010 - 05.2014] NCP12#,NSP12# 右側 |
55129-52051 |
US $10.48 |
||
|
55129C
|
55129C
55139-52021 Cover, Front Floor HoleDASH PANEL HOLE [11.2010 - 05.2014] NCP12#,NSP12# 左側 |
55139-52021 |
US $10.48 |
||
|
57043A
|
57043A
57043-52021 Reinforcement Sub-Assy, Front Side Member, Rear Rh[11.2010 - 04.2013] NCP12#,NSP12# |
57043-52021 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[11.2010 - 04.2013] NCP12#,NSP12# |
57043-52023 |
US $59.55 |
||
|
57043A
|
57043A
57043-52022 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 05.2014] NCP12#,NSP12# |
57043-52022 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2013 - 05.2014] NCP12#,NSP12# |
57043-52023 |
US $59.55 |
||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[11.2014 -] NCP12#,NSP12# |
57043-52023 |
US $59.55 |
||
|
57044A
|
57044A
57044-52041 Reinforcement Sub-Assy, Front Side Member, Rear Lh[11.2010 - 04.2013] NCP12#,NSP12# |
57044-52041 |
US $65.52 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[11.2010 - 04.2013] NCP12#,NSP12# |
57044-52043 |
US $59.55 |
||
|
57044A
|
57044A
57044-52042 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 05.2014] NCP12#,NSP12# |
57044-52042 |
US $65.52 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2013 - 05.2014] NCP12#,NSP12# |
57044-52043 |
US $59.55 |
||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[11.2014 -] NCP12#,NSP12# |
57044-52043 |
US $59.55 |
||
|
57051A
|
57051A
57051-52010 Member Sub-Assy, Front Floor Cross, Rh[11.2010 - 05.2014] NCP12#,NSP12# |
57051-52010 |
US $91.73 |
||
|
57052A
|
57052A
57052-52010 Member Sub-Assy, Front Floor Cross, Lh[11.2010 - 05.2014] NCP12#,NSP12# |
57052-52010 |
US $91.73 |
||
|
57068B
|
57068B
57068-52030 Member Sub-Assy, Rear Floor Cross, Front[11.2010 - 05.2014] NCP125 |
57068-52030 |
US $100.46 |
||
|
57453C
|
57453C
57453-52021 Member, Front Floor Cross Side, Rh[11.2010 - 05.2013] NCP12#,NSP12# |
57453-52021 |
US $60.28 |
||
| replacement | |||||
|
57453C
|
57453C
57453-52022 Member, Front Floor Cross Side, Rh[11.2010 - 05.2013] NCP12#,NSP12# |
57453-52022 |
US $54.75 |
||
|
57453C
|
57453C
57453-52022 Member, Front Floor Cross Side, Rh[05.2013 - 05.2014] NCP12#,NSP12# |
57453-52022 |
US $54.75 |
||
|
57454B
|
57454B
57454-52011 Member, Front Floor Cross Side, Lh[11.2010 - 05.2013] NCP12#,NSP12# |
57454-52011 |
US $60.28 |
||
| replacement | |||||
|
57454B
|
57454B
57454-52012 Member, Front Floor Cross Side, Lh[11.2010 - 05.2013] NCP12#,NSP12# |
57454-52012 |
US $54.75 |
||
|
57454B
|
57454B
57454-52012 Member, Front Floor Cross Side, Lh[05.2013 - 05.2014] NCP12#,NSP12# |
57454-52012 |
US $54.75 |
||
|
57455C
|
57455C
57455-52040 Bracket, Front Seat Mounting, Outside Rh[11.2010 - 05.2014] NCP12#,NSP12# |
57455-52040 |
US $7.43 |
||
|
57456B
|
57456B
57456-52040 Bracket, Front Seat Mounting, Outside Lh[11.2010 - 05.2014] NCP12#,NSP12# |
57456-52040 |
US $7.43 |
||
|
57473
|
57473
57473-52021 Reinforcement, Rear Seat Back Hinge[11.2010 - 05.2014] NCP125 |
57473-52021 |
US $17.76 |
||
|
57681A
|
57681A
57681-52030 Brace, Rear Floor No.2 Crossmember, Outer[11.2010 - 05.2014] NCP125 |
57681-52030 |
US $41.34 |
||
|
57682A
|
57682A
58105-52030 Brace, Rear Floor No.2 Crossmember, Outer LhREAR FLOOR NO.2 CROSSMEMBER, OUTER LH [11.2010 - 05.2014] NCP125 |
58105-52030 |
US $41.34 |
||
|
57805F
|
57805F
57805-52141 Reinforcement Sub-Assy, Belt Anchor, Rh[11.2010 - 05.2014] NCP125 |
57805-52141 |
US $55.47 |
||
|
58014
|
58014
58014-52011 Panel Sub-Assy, Front Floor, Rear Lower[11.2010 - 05.2014] NCP125 |
58014-52011 |
US $84.45 |
||
| replacement | |||||
|
58014
|
58014
58014-52012 Panel Sub-Assy, Front Floor, Rear Lower[11.2010 - 05.2014] NCP125 |
58014-52012 |
US $75.71 |
||
|
58014
|
58014
58014-52012 Panel Sub-Assy, Front Floor, Rear Lower[10.2015 -] NCP125 |
58014-52012 |
US $75.71 |
||
|
58025A
|
58025A
58025-52010 Panel Sub-Assy, Floor Side Rail, Fr Rh[11.2010 - 05.2014] NCP12#,NSP12# |
58025-52010 |
US $121.36 |
||
|
58026A
|
58026A
58026-52010 Panel Sub-Assy, Floor Side Rail, Fr Lh[11.2010 - 05.2014] NCP120,125,NSP120 |
58026-52010 |
US $121.36 |
||
|
58026A
|
58026A
C3014-52020 Panel Sub-Assy, Floor Side Rail, Fr Lh[11.2010 - 05.2014] NCP125..G,X ウェルキャブ（助手席リフトアップシート＝Ｂタイプ） |
C3014-52020 |
US $99.01 |
||
|
58027C
|
58027C
58027-52030 Panel Sub-Assy, Center Floor Side, Rh[11.2010 - 05.2014] NCP125 |
58027-52030 |
US $21.40 |
||
|
58028C
|
58028C
58028-52020 Panel Sub-Assy, Center Floor Side, Lh[11.2010 - 05.2014] NCP125 |
58028-52020 |
US $21.40 |
||
|
58091A
|
58091A
58091-52030 Reinforcement Set, Body Fitting[11.2010 - 05.2014] NCP125 |
58091-52030 |
US $21.69 |
||
|
58111A
|
58111A
58111-52170 Pan, Front Floor, Rh[11.2010 - 07.2013] NCP12#,NSP12# |
58111-52170 |
US $174.72 |
||
|
58111A
|
58111A
58111-52280 Pan, Front Floor, Rh[08.2013 - 05.2014] NCP12#,NSP12# |
58111-52280 |
US $174.72 |
||
| replacement | |||||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[08.2013 - 05.2014] NCP12#,NSP12# |
58111-52281 |
US $158.70 |
||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[11.2014 -] NCP12#,NSP12# |
58111-52281 |
US $158.70 |
||
|
58112C
|
58112C
58112-52904 Pan, Front Floor, Lh[11.2010 - 08.2013] NCP12#,NSP12# |
58112-52904 |
US $158.70 |
||
|
58112C
|
58112C
58112-52916 Pan, Front Floor, Lh[08.2013 - 05.2014] NCP12#,NSP12# |
58112-52916 |
US $171.81 |
||
| replacement | |||||
|
58112C
|
58112C
58112-52921 Pan, Front Floor, Lh[08.2013 - 05.2014] NCP12#,NSP12# |
58112-52921 |
US $155.79 |
||
|
58112C
|
58112C
58112-52921 Pan, Front Floor, Lh[01.2015 -] NCP12#,NSP12# |
58112-52921 |
US $155.79 |
||
|
58113A
|
58113A
58113-52914 Panel, Front Floor, Center[11.2010 - 05.2014] NCP125 |
58113-52914 |
US $317.41 |
||
|
58114A
|
58114A
58114-52081 Reinforcement, Front Floor Panel[11.2010 - 05.2014] NCP125 |
58114-52081 |
US $38 |
||
|
58165B
|
58165B
58165-52011 Cover, Front Floor, RhFRONT FLOOR, RH [11.2010 - 05.2014] NCP12#,NSP12# |
58165-52011 |
US $13.22 |
||
|
58166
|
58166
58166-52011 Cover, Front Floor, LhFRONT FLOOR, LH [11.2010 - 05.2014] NCP12#,NSP12# |
58166-52011 |
US $14.50 |
||
|
58171
|
58171
58171-52120 Reinforcement, Parking Brake Base[11.2010 - 05.2014] NCP125 |
58171-52120 |
US $11.21 |
||
|
58172
|
58172
58172-52030 Bracket, Computer Mounting, No.3[11.2010 - 05.2014] NCP125 |
58172-52030 |
US $5.39 |
||
|
58175A
|
58175A
58175-52020 Reinforcement, Parking Brake Base, No.1[11.2010 - 05.2014] NCP12#,NSP12# |
58175-52020 |
US $2.91 |
||
|
58211H
|
58211H
58211-52170 Pan, Center Floor[11.2010 - 05.2014] NCP125 |
58211-52170 |
US $198.02 |
||
|
58307
|
58307
58307-52560 Panel Sub-Assy, Body Lower Back[11.2010 - 05.2014] NCP120,125,NSP120 |
58307-52560 |
US $198.72 |
||
|
58308
|
58308
58308-52030 Panel Sub-Assy, Body Lower Back, Inner[11.2010 - 05.2014] NCP125 |
58308-52030 |
US $195.10 |
||
|
58311
|
58311
58311-52191 Pan, Rear Floor[11.2010 - 05.2014] NCP125 |
58311-52191 |
US $75.71 |
||
|
58315C
|
58315C
58315-52160 Extension, Rear Floor Side Panel, Rh[11.2010 - 05.2014] NCP12#,NSP12# |
58315-52160 |
US $29.94 |
||
|
58316C
|
58316C
58316-52180 Extension, Rear Floor Side Panel, Lh[11.2010 - 05.2014] NCP120,125,NSP120 |
58316-52180 |
US $29.94 |
||
|
58325E
|
58325E
58325-52060 Cover, Rear Floor Service Hole[11.2010 - 05.2014] NCP125 |
58325-52060 |
US $19.51 |
||
|
58329F
|
58329F
58329-52020 Cover, Rear Floor Service Hole, No.2[11.2010 - 05.2014] NCP125 |
58329-52020 |
US $12.38 |
||
|
58351E
|
58351E
58351-52070 Bracket Sub-Assy, Spare Wheel Clamp[11.2010 - 05.2014] NCP120,125,NSP120 |
58351-52070 |
US $8.80 |
||
|
58357B
|
58357B
58357-52040 Bracket, Actuator Cover, No.3 Rh[11.2010 - 04.2011] NCP125 |
58357-52040 |
US $12.08 |
||
| replacement | |||||
|
58357B
|
58357B
58357-52041 Bracket, Actuator Cover, No.3 Rh[11.2010 - 04.2011] NCP125 |
58357-52041 |
US $8.53 |
||
|
58357B
|
58357B
58357-52041 Bracket, Actuator Cover, No.3 Rh[05.2011 - 05.2014] NCP125 |
58357-52041 |
US $8.53 |
||
|
58385H
|
58385H
58385-52110 Bracket, Rear Bumper Cover, No.1[11.2010 - 05.2012] NCP120,125,NSP120 |
58385-52110 |
US $9.17 |
||
|
58386B
|
58386B
58386-52060 Bracket, Rear Bumper Cover, No.2[11.2010 - 05.2012] NCP120,125,NSP120 |
58386-52060 |
US $8.74 |
||
|
58791B
|
58791B
58791-52060 Carrier, Jack[11.2010 - 05.2014] NCP12#,NSP12# |
58791-52060 |
US $17.62 |
||
|
64151B
|
64151B
64151-52020 Rail, Lower Back, Outer[11.2010 - 05.2014] NCP120,125,NSP120 |
64151-52020 |
US $66.25 |
||
|
91621G0816
|
91621G0816
91621-G0816 BOLT WWASHER |
91621-G0816 |
from US $1.35 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
US $1.28 |
||
|
9011910945
|
9011910945
90119-10945 New Genuine Part |
90119-10945 |
US $1.02 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9018905054
|
9018905054
90189-05054 New Genuine Part |
90189-05054 |
US $0.79 |
||
|
9155380618
|
9155380618
91553-80618 Direct |
91553-80618 |
from US $0.82 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
