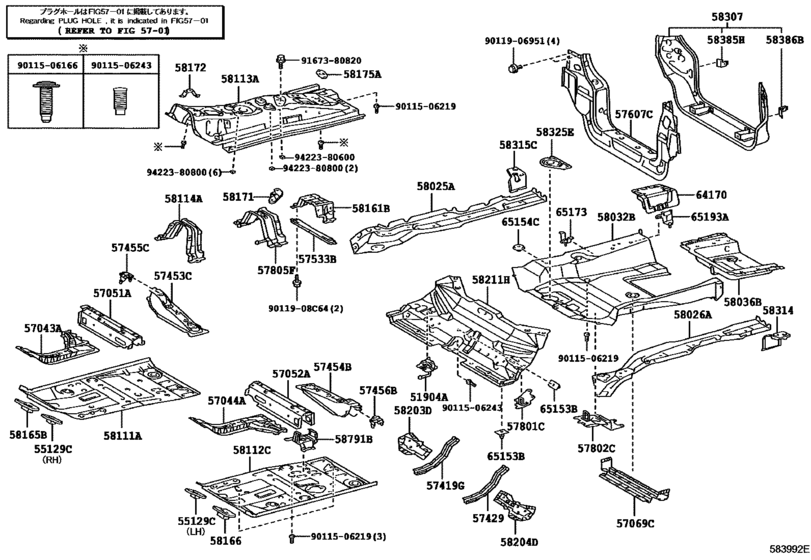

Floor Pan & Lower Back Panel ([11.2010 - ] (1011- )NCP122,NSP122) Diagram Toyota RACTIS
- Year
- 2014 - 2016
- Sales region
- Japan
- Frame
- NSP122
- grade
- X
- ENGINE
- 1NRFKE
- TRANSMISSION
- CVT
- From
- 05.2014
- To
- 07.2016
- Fuel Induction
- HTWCB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51904A
|
51904A
51904-52010 Hanger Sub-Assy, Exhaust Pipe, No.4[05.2014 -] NCP120,122,NSP12# |
51904-52010 |
US $12.38 |
||
|
55129C
|
55129C
55129-52051 Cover, Front Floor HoleDASH PANEL HOLE [05.2014 -] NCP12#,NSP12# 右側 |
55129-52051 |
US $10.48 |
||
|
55129C
|
55129C
55139-52021 Cover, Front Floor HoleDASH PANEL HOLE [05.2014 -] NCP12#,NSP12# 左側 |
55139-52021 |
US $10.48 |
||
|
57043A
|
57043A
57043-52022 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2014 - 10.2014] NCP12#,NSP12# |
57043-52022 |
US $65.52 |
||
| replacement | |||||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[05.2014 - 10.2014] NCP12#,NSP12# |
57043-52023 |
US $59.55 |
||
|
57043A
|
57043A
57043-52023 Reinforcement Sub-Assy, Front Side Member, Rear Rh[11.2014 -] NCP12#,NSP12# |
57043-52023 |
US $59.55 |
||
|
57044A
|
57044A
57044-52042 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2014 - 10.2014] NCP12#,NSP12# |
57044-52042 |
US $65.52 |
||
| replacement | |||||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[05.2014 - 10.2014] NCP12#,NSP12# |
57044-52043 |
US $59.55 |
||
|
57044A
|
57044A
57044-52043 Reinforcement Sub-Assy, Front Side Member, Rear Lh[11.2014 -] NCP12#,NSP12# |
57044-52043 |
US $59.55 |
||
|
57051A
|
57051A
57051-52010 Member Sub-Assy, Front Floor Cross, Rh[05.2014 -] NCP12#,NSP12# |
57051-52010 |
US $91.73 |
||
|
57052A
|
57052A
57052-52010 Member Sub-Assy, Front Floor Cross, Lh[05.2014 -] NCP12#,NSP12# |
57052-52010 |
US $91.73 |
||
|
57069C
|
57069C
57069-52030 Member Sub-Assy, Rear Floor Cross, Center[05.2014 -] NCP122,NSP122 |
57069-52030 |
US $100.46 |
||
|
57419G
|
57419G
58203-52070 Reinforcement, Front Floor Under, Rh No.2[05.2014 -] NCP122,NSP122 |
58203-52070 |
US $41.93 |
||
|
57429
|
57429
57429-52080 Reinforcement, Front Floor Under, Lh No.2[05.2014 -] NCP120,122,NSP12# |
57429-52080 |
US $49.78 |
||
|
57453C
|
57453C
57453-52022 Member, Front Floor Cross Side, Rh[05.2014 -] NCP12#,NSP12# |
57453-52022 |
US $54.75 |
||
|
57454B
|
57454B
57454-52012 Member, Front Floor Cross Side, Lh[05.2014 -] NCP12#,NSP12# |
57454-52012 |
US $54.75 |
||
|
57455C
|
57455C
57455-52040 Bracket, Front Seat Mounting, Outside Rh[05.2014 -] NCP12#,NSP12# |
57455-52040 |
US $7.43 |
||
|
57456B
|
57456B
57456-52040 Bracket, Front Seat Mounting, Outside Lh[05.2014 -] NCP12#,NSP12# |
57456-52040 |
US $7.43 |
||
|
57533B
|
57533B
57533-52011 Brace, Front Floor, Center[05.2014 -] NCP120,122,NSP12# |
57533-52011 |
US $25.84 |
||
|
57607C
|
57607C
57607-52110 Member Sub-Assy, Rear Floor Cross, No.3[05.2014 -] NCP122,NSP122 |
57607-52110 |
US $346.53 |
||
|
57801C
|
57801C
57801-52120 Reinforcement Sub-Assy, Belt Anchor, No.1 Rh[05.2014 -] NCP122,NSP122 |
57801-52120 |
US $43.53 |
||
|
57802C
|
57802C
57802-52120 Reinforcement Sub-Assy, Belt Anchor, No.1 Lh[05.2014 -] NCP122,NSP122 |
57802-52120 |
US $47.47 |
||
|
57805F
|
57805F
57805-52131 Reinforcement Sub-Assy, Belt Anchor, Rh[05.2014 -] NCP120,122,NSP12# |
57805-52131 |
US $55.47 |
||
|
58025A
|
58025A
58025-52010 Panel Sub-Assy, Floor Side Rail, Fr Rh[05.2014 -] NCP12#,NSP12# |
58025-52010 |
US $121.36 |
||
|
58026A
|
58026A
58026-52030 Panel Sub-Assy, Floor Side Rail, Fr Lh[05.2014 -] NCP122,NSP122 |
58026-52030 |
US $101.92 |
||
|
58032B
|
58032B
58032-52020 Panel Sub-Assy, Rear Floor, Center[05.2014 -] NCP122,NSP122 |
58032-52020 |
US $308.67 |
||
|
58036B
|
58036B
58036-52020 Extension Sub-Assy, Rear Floor Side Panel, Lh[05.2014 - 12.2014] NCP122,NSP122 |
58036-52020 |
US $100.46 |
||
|
58036B
|
58036B
58036-52021 Extension Sub-Assy, Rear Floor Side Panel, Lh[12.2014 -] NCP122,NSP122 |
58036-52021 |
US $90.27 |
||
|
58111A
|
58111A
58111-52280 Pan, Front Floor, Rh[05.2014 - 10.2014] NCP12#,NSP12# |
58111-52280 |
US $174.72 |
||
| replacement | |||||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[05.2014 - 10.2014] NCP12#,NSP12# |
58111-52281 |
US $158.70 |
||
|
58111A
|
58111A
58111-52281 Pan, Front Floor, Rh[11.2014 -] NCP12#,NSP12# |
58111-52281 |
US $158.70 |
||
|
58112C
|
58112C
58112-52916 Pan, Front Floor, Lh[05.2014 - 01.2015] NCP12#,NSP12# |
58112-52916 |
US $171.81 |
||
| replacement | |||||
|
58112C
|
58112C
58112-52921 Pan, Front Floor, Lh[05.2014 - 01.2015] NCP12#,NSP12# |
58112-52921 |
US $155.79 |
||
|
58112C
|
58112C
58112-52921 Pan, Front Floor, Lh[01.2015 -] NCP12#,NSP12# |
58112-52921 |
US $155.79 |
||
|
58113A
|
58113A
58113-52924 Panel, Front Floor, Center[05.2014 -] NCP120,122,NSP12# |
58113-52924 |
US $315.95 |
||
|
58114A
|
58114A
58114-52071 Reinforcement, Front Floor Panel[05.2014 -] NCP120,122,NSP12# |
58114-52071 |
US $36.84 |
||
|
58161B
|
58161B
58161-52070 Reinforcement, Belt Anchor To Floor Pan[05.2014 -] NCP120,122,NSP12# |
58161-52070 |
US $46.45 |
||
|
58165B
|
58165B
58165-52011 Cover, Front Floor, RhFRONT FLOOR, RH [05.2014 -] NCP12#,NSP12# |
58165-52011 |
US $13.22 |
||
|
58166
|
58166
58166-52011 Cover, Front Floor, LhFRONT FLOOR, LH [05.2014 -] NCP12#,NSP12# |
58166-52011 |
US $14.50 |
||
|
58171
|
58171
58171-52090 Reinforcement, Parking Brake Base[05.2014 -] NCP120,122,NSP12# |
58171-52090 |
US $11.21 |
||
|
58172
|
58172
58172-52020 Bracket, Computer Mounting, No.3[05.2014 -] NCP120,122,NSP12# |
58172-52020 |
US $6.70 |
||
|
58175A
|
58175A
58175-52020 Reinforcement, Parking Brake Base, No.1[05.2014 -] NCP12#,NSP12# |
58175-52020 |
US $2.91 |
||
|
58203D
|
58203D
58203-52060 Bracket Sub-Assy, Rear Seat Hinge, Outer Rh[05.2014 -] NCP120,122,NSP12# |
58203-52060 |
US $61.15 |
||
|
58204D
|
58204D
58204-52061 Bracket Sub-Assy, Rear Seat Hinge, Outer Lh[05.2014 -] NCP120,122,NSP12# |
58204-52061 |
US $75.71 |
||
|
58211H
|
58211H
58211-52210 Pan, Center Floor[05.2014 -] NCP122,NSP122 |
58211-52210 |
US $174.72 |
||
|
58307
|
58307
58307-52570 Panel Sub-Assy, Body Lower Back[05.2014 -] NCP122,NSP122 |
58307-52570 |
US $208.21 |
||
|
58314
|
58314
58314-52050 Panel, Rear Floor Side, Lh[05.2014 -] NCP122,NSP122 |
58314-52050 |
US $22.42 |
||
|
58315C
|
58315C
58315-52160 Extension, Rear Floor Side Panel, Rh[05.2014 -] NCP12#,NSP12# |
58315-52160 |
US $29.94 |
||
|
58325E
|
58325E
58325-52070 Cover, Rear Floor Service Hole[05.2014 -] NCP122,NSP122 |
58325-52070 |
US $8.44 |
||
|
58385H
|
58385H
58386-52050 Bracket, Rear Bumper Cover, No.1[05.2014 -] NCP122,NSP122 |
58386-52050 |
US $4.08 |
||
|
58386B
|
58386B
58386-52050 Bracket, Rear Bumper Cover, No.1[05.2014 -] NCP122,NSP122 |
58386-52050 |
US $4.08 |
||
|
58791B
|
58791B
58791-52060 Carrier, Jack[05.2014 -] NCP12#,NSP12#; NCP125;NCP120..G;NSP120..X ウェルキャブ（助手席リフトアップシート＝Ａタイプ）; NCP125;NCP120..G;NSP120..X ウェルキャブ（助手席リフトアップシート＝Ｂタイプ） |
58791-52060 |
US $17.62 |
||
|
64170
|
64170
64170-52010 Bracket Assy, Rear Mounting, Rh[05.2014 -] NCP122,NSP122 |
64170-52010 |
US $55.76 |
||
|
65153B
|
65153B
65153-52030 Bracket, Mounting, No.1 Rh[05.2014 -] NCP122,NSP122 |
65153-52030 |
US $8.01 |
||
|
65154C
|
65154C
65154-52030 Bracket, Mounting, No.1[05.2014 -] NCP122,NSP122 |
65154-52030 |
US $9.17 |
||
|
65173
|
65173
65173-52010 Bracket, Mounting, No.3[05.2014 -] NCP122,NSP122 |
65173-52010 |
US $4.80 |
||
|
65193A
|
65193A
65193-52010 Bracket, Mounting, No.5 Rh[05.2014 -] NCP122,NSP122 |
65193-52010 |
US $8.01 |
||
|
9011908C64
|
9011908C64
90119-08C64 Bolt with washer |
90119-08C64 |
US $1.44 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
|
9422380600
|
9422380600
94223-80600 Retainer, Rear Door Open Switch Set, Rh |
94223-80600 |
US $1.12 |
||
|
9422380800
|
9422380800
94223-80800 New Genuine Part |
94223-80800 |
US $1.44 |
||
