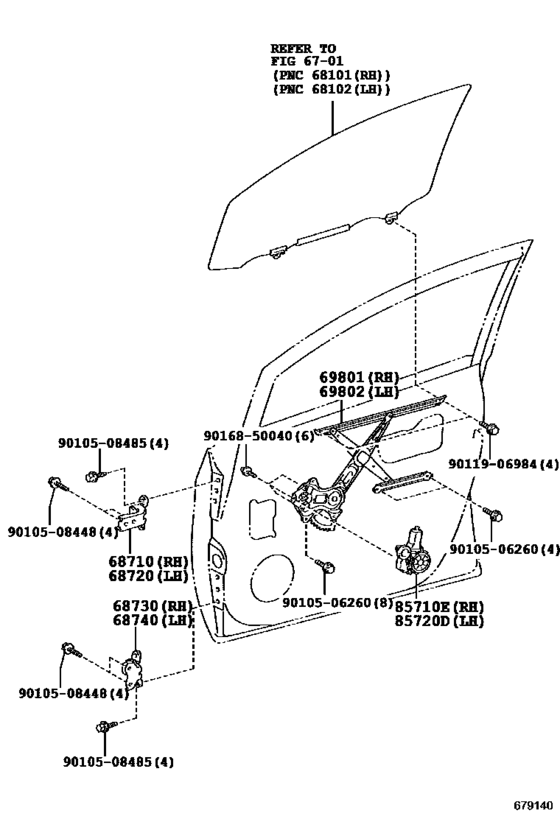

Front Door Window Regulator & Hinge ([11.2010 - ] (1011- )) Diagram Toyota RACTIS
- Year
- 2014 - 2016
- Sales region
- Japan
- Frame
- NSP122
- grade
- X
- ENGINE
- 1NRFKE
- TRANSMISSION
- CVT
- From
- 05.2014
- To
- 07.2016
- Fuel Induction
- HTWCB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[05.2014 -] NCP12#,NSP12# |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[05.2014 -] NCP12#,NSP12# |
68720-12151 |
US $31.16 |
||
|
68730
|
68730
68730-12120 Hinge Assy, Front Door, Lower Rh[05.2014 -] NCP12#,NSP12# |
68730-12120 |
from US $34.05 |
||
|
68740
|
68740
68740-12120 Hinge Assy, Front Door, Lower Lh[05.2014 -] NCP12#,NSP12# |
68740-12120 |
from US $34.05 |
||
|
69801
|
69801
69801-21020 Regulator Sub-Assy, Front Door Window, Rh[05.2014 -] NCP12#,NSP12# |
69801-21020 |
US $65.82 |
||
|
69802
|
69802
69802-21010 Regulator Sub-Assy, Front Door Window, Lh[05.2014 -] NCP12#,NSP12# |
69802-21010 |
from US $65.82 |
||
|
85710E
|
85710E
85710-52171 Motor Assy, Power Window Regulator, Rh[05.2014 -] NCP12#,NSP12# |
85710-52171 |
US $574 |
||
|
85720D
|
85720D
85720-35140 Motor Assy, Power Window Regulator, Rh[05.2014 -] NCP12#,NSP12# |
85720-35140 |
from US $218.60 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.82 |
||
|
9010508485
|
9010508485
90105-08485 BOLT FLANGE |
90105-08485 |
from US $0.78 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $0.96 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
